Inputs/outputs
STUSB1602
6/55
DocID028319 Rev 2
2
Inputs/outputs
2.1
Pinout

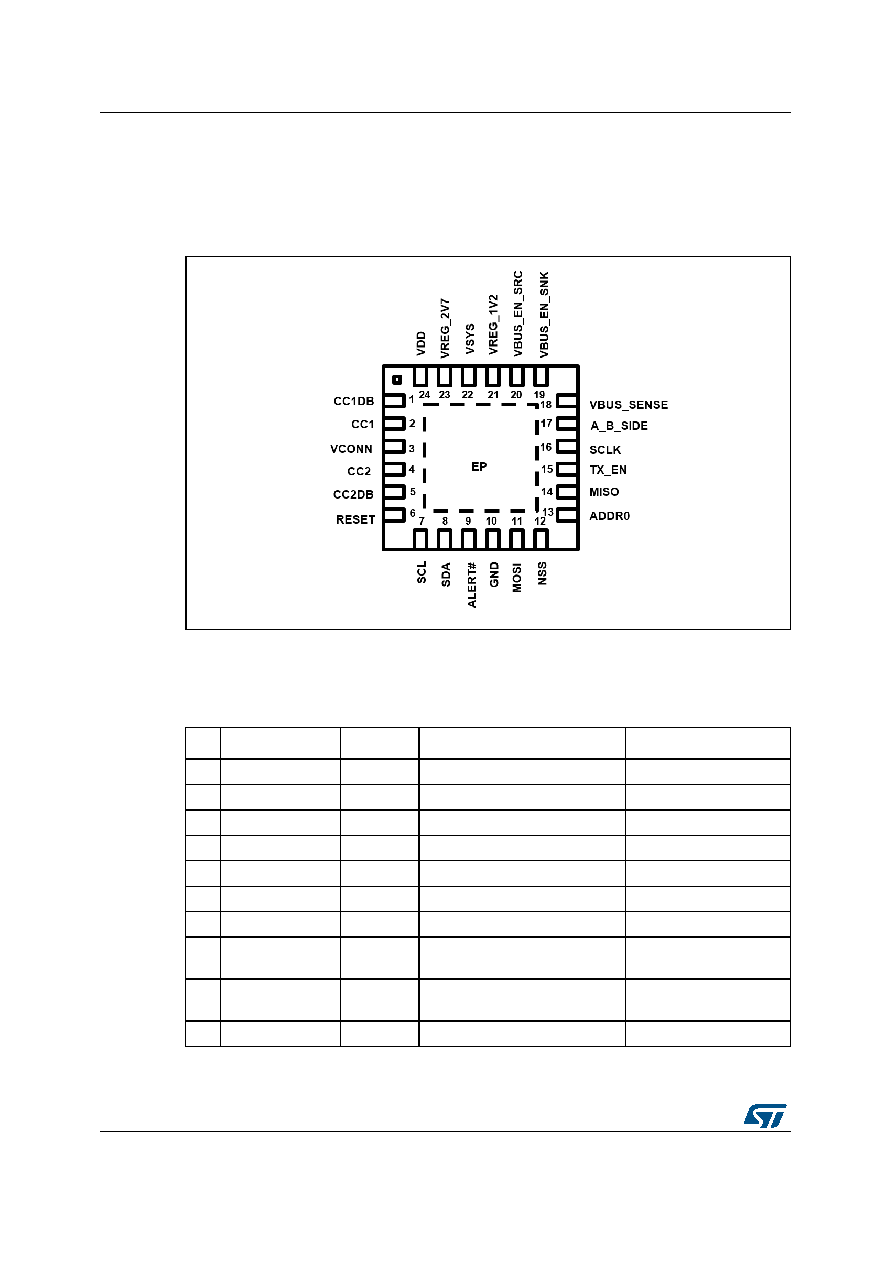

Figure 2. STUSB1602 pin connections
2.2
Pin list
Table 2. Pin function list
Pin
Name
Type
Description
Typical Connection
1
CC1DB
HV AIO
Dead battery enable on CC1 pin CC1 pin if used or ground
2
CC1
HV AIO
Type-C configuration channel 1
Type-C receptacle A5
3
VCONN
PWR
Power input for active plug
5 V power source
4
CC2
HV AIO
Type-C configuration channel 2
Type-C receptacle B5
5
CC2DB
HV AIO
Dead battery enable on CC2 pin CC2 pin if used or ground
6
RESET
DI
Reset input (active high)
—
7SCL
DI
I2C clock input
To I²C master, ext. pull-up
8
SDA
DI/OD
I2C data input/output, active low
open drain
To I²C master, ext. pull-up
9ALERT#
OD
I2C interrupt, active low open
drain
To I²C master, ext. pull-up
10
GND
GND
Ground
Ground
