ST7DALIF2

12-bit autoreload timer 2 (AT2)

73/171

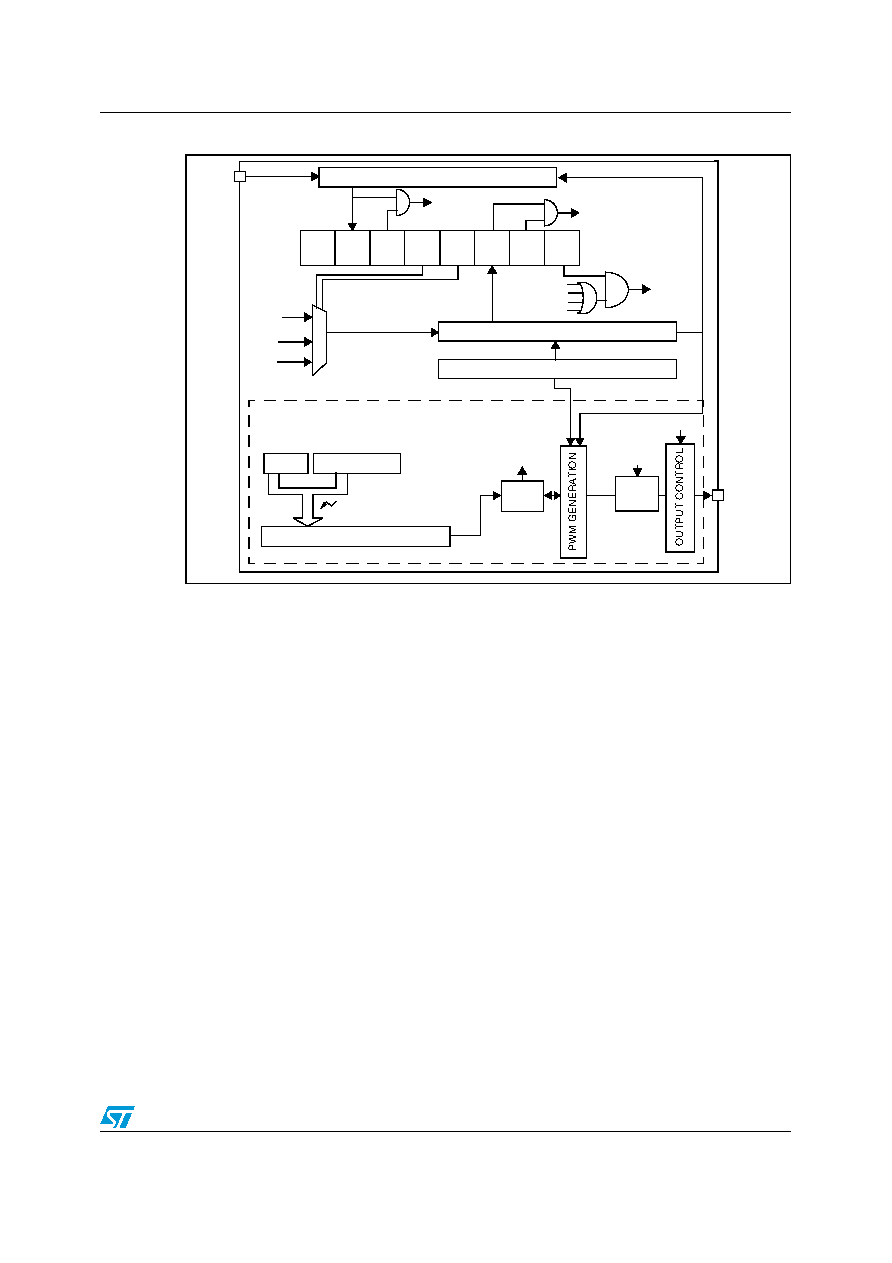

Figure 33.

Block diagram

14.3

Functional description

14.3.1

PWM mode

This mode allows up to four Pulse Width Modulated signals to be generated on the PWMx

output pins. The PWMx output signals can be enabled or disabled using the OEx bits in the

PWMCR register.

PWM frequency and duty cycle

The four PWM signals have the same frequency (fPWM) which is controlled by the counter

period and the ATR register value.

fPWM = fCOUNTER / (4096 - ATR)

Following the above formula,

●

If fCOUNTER is 32 MHz, the maximum value of fPWM is 8 MHz (ATR register value =

4092), the minimum value is 8 kHz (ATR register value = 0)

●

If fCOUNTER is 4 Mhz, the maximum value of fPWM is 2 MHz (ATR register value =

4094),the minimum value is 1 KHz (ATR register value = 0).

Note:

The maximum value of ATR is 4094 because it must be lower than the DCR value which

must be 4095 in this case.

At reset, the counter starts counting from 0.

When a upcounter overflow occurs (OVF event), the preloaded Duty cycle values are

transferred to the Duty Cycle registers and the PWMx signals are set to a high level. When

ATCSR

CMPIE

OVFIE

OVF

CK0

CK1

ICIE

ICF

12-BIT AUTORELOAD REGISTER

12-BIT UPCOUNTER

CMPF2

CMPF1

CMPF3

CMPF0

CMP

REQUEST

OVF INTERRUPT

REQUEST

fCPU

ATIC

12-BIT INPUT CAPTURE REGISTER

IC INTERRUPT

REQUEST

ATR

ATICR

fCOUNTER

CNTR

32 MHz

(1 ms

fLTIMER

@ 8MHz)

CMPFx bit

POL-

ARITY

OPx bit

PWMx

COMP-

PARE

fPWM

OEx bit

4 PWM Channels

INTERRUPT

timebase

DCR0H

DCR0L

Preload

on OVF Event

12-BIT DUTY CYCLE VALUE (shadow)

IF TRAN=1
