Electrical characteristics

TS4621B

18/48

Doc ID 022194 Rev 2

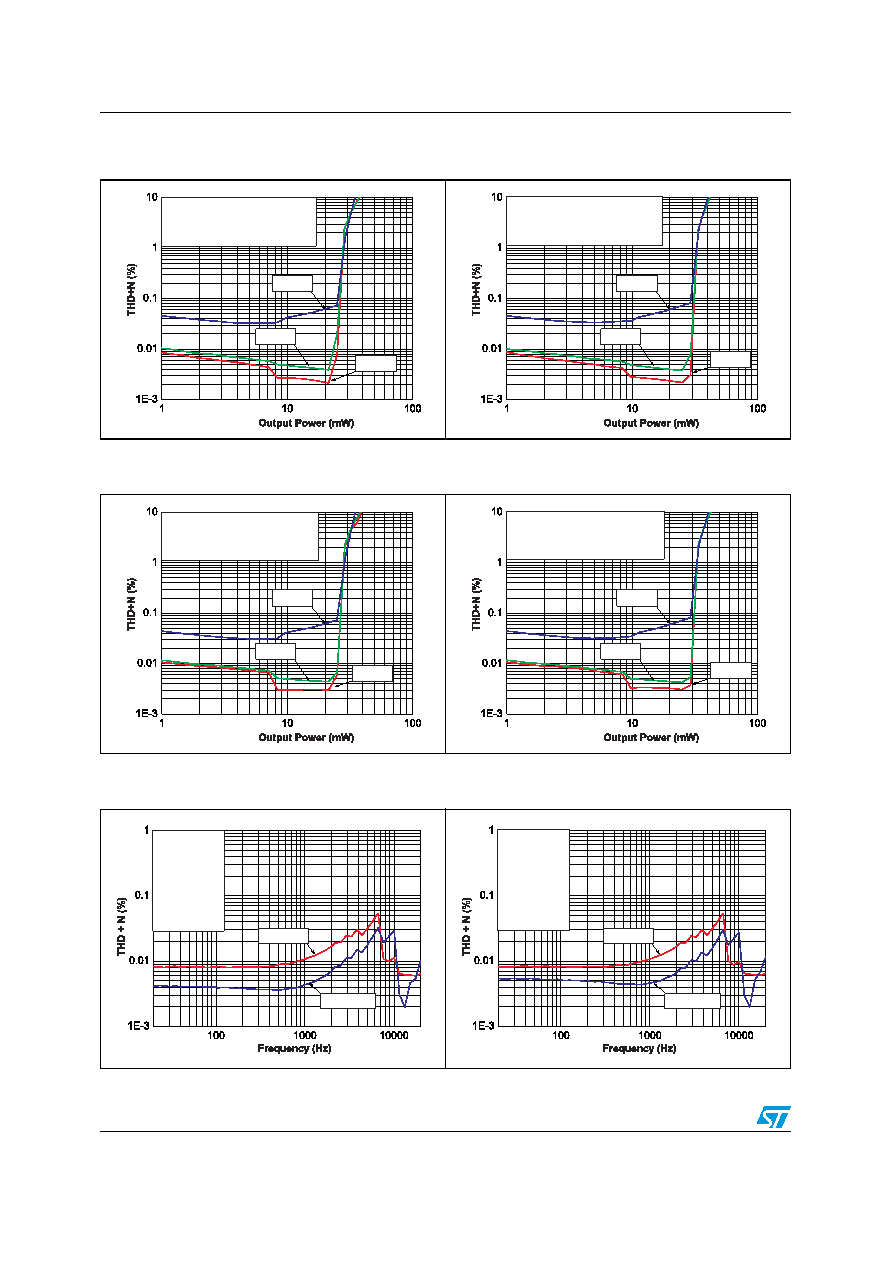

Figure 34.

THD+N vs. output power

RL = 47

Ω, in-phase, VCC = 3.6 V

Figure 35.

THD+N vs. output power

RL = 47

Ω, out-of-phase, VCC = 3.6 V

F=80Hz

F=1kHz

F=8kHz

Vcc = 3.6V, RL = 47

G = 4dB, Inputs = 0

BW < 30kHz, Tamb = 25

°C

F=80Hz

F=1kHz

F=8kHz

Vcc = 3.6V, RL = 47

G = 4dB, Inputs = 180

BW < 30kHz, Tamb = 25

°C

Figure 36.

THD+N vs. output power

RL = 47

Ω, in-phase, VCC = 4.8 V

Figure 37.

THD+N vs. output power

RL = 47

Ω, out-of-phase, VCC = 4.8 V

F=80Hz

F=1kHz

F=8kHz

Vcc = 4.8V, RL = 47

G = 4dB, Inputs = 0

BW < 30kHz, Tamb = 25

°C

F=80Hz

F=1kHz

F=8kHz

Vcc = 4.8V, RL = 47

G = 4dB, Inputs = 180

BW < 30kHz, Tamb = 25

°C

Figure 38.

THD+N vs. frequency

RL = 16

Ω, in-phase, VCC = 2.5 V

Figure 39.

THD+N vs. frequency

RL = 16

Ω, out-of-phase, VCC = 2.5 V

Po=1mW

Po=15mW

RL = 16

Vcc = 2.5V

G = 0dB

Inputs = 0

Bw < 20kHz

Tamb = 25

°C

20k

Po=1mW

Po=15mW

RL = 16

Vcc = 2.5V

G = 0dB

Inputs = 180

Bw < 20kHz

Tamb = 25

°C

20k
