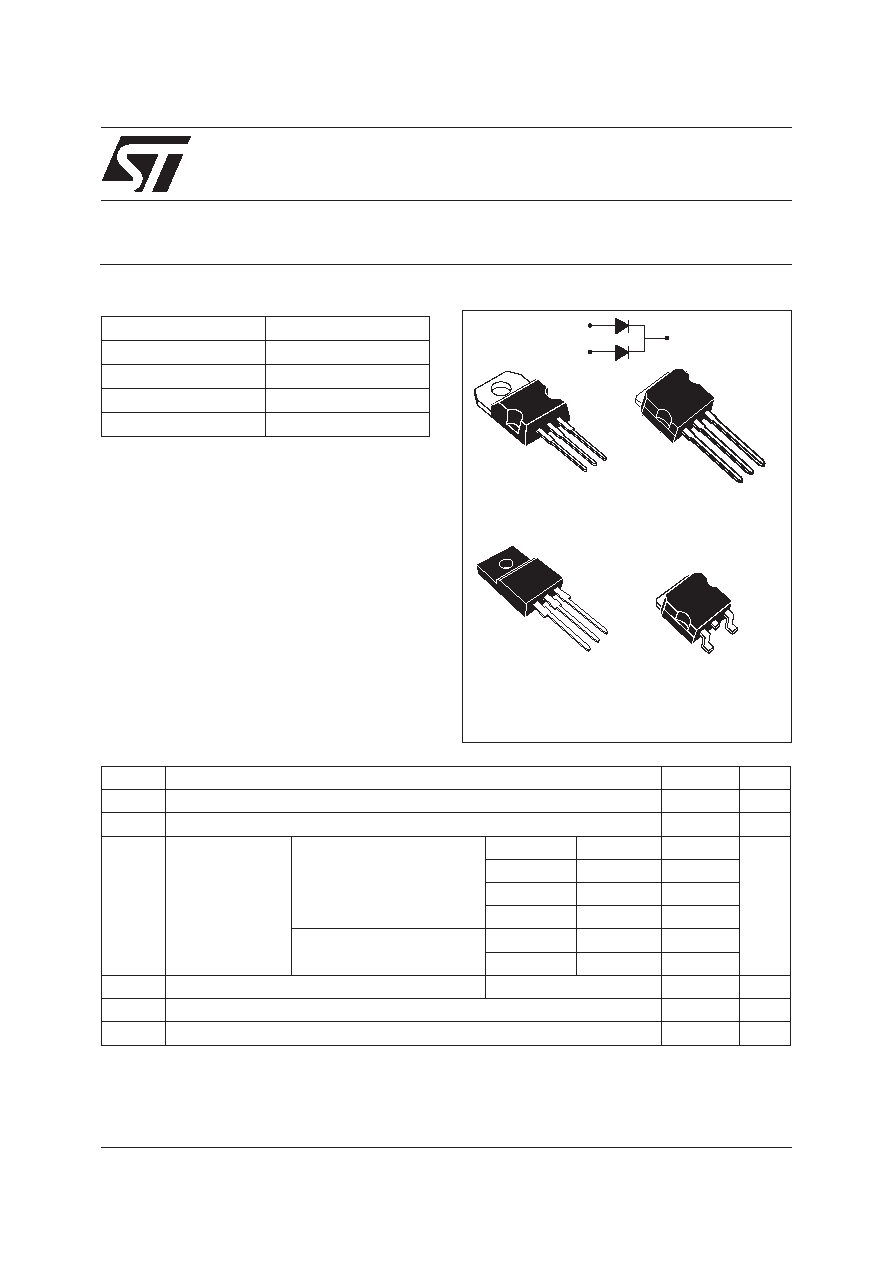

background image
1/7
STTH2002C
February 2004 - Ed: 1
HIGH EFFICIENCY ULTRAFAST DIODE
®
Dual center tap rectifier suited for Switch Mode
Power Supplies and High frequency DC to DC
converters.
Packaged in TO-220AB, D
2PAK, TO-220FPAB
and I
2PAK, this device is intended for use in low
voltage, high frequency inverters, free wheeling
and polarity protection applications.
DESCRIPTION
■
Suited for SMPS
■
Low losses
■
Low forward and reverse recovery times
■
Low leakage current
■
High junction temperature
■
Insulated package: TO-220FPAB
FEATURES AND BENEFITS
Symbol
Parameter
Value
Unit
VRRM
Repetitive peak reverse voltage
200
V
IF(RMS)
RMS forward current
30
A
IF(AV)
Average forward
current
δ =0.5
TO-220AB / I
2PAK /
D
2PAK
Tc = 150°C
Per diode
10
A
Tc = 140°C
Per device
20
Tc = 130°C
Per diode
15
Tc = 115°C
Per device
30
TO-220FPAB
Tc = 120°C
Per diode
10
Tc = 95°C
Per device
20
IFSM
Surge non repetitive forward current
tp = 10 ms Sinusoidal
90
A
Tstg
Storage temperature range
- 65 + 175
°C
Tj
Maximum operating junction temperature
175
°C
ABSOLUTE RATINGS (limiting values)
IF(AV)
Up to 2 x 15A
VRRM
200 V
Tj (max)
175 °C
VF (typ)
0.78 V
trr (typ)
22 ns
MAIN PRODUCT CHARACTERISTICS
A1
A2
K
I
2PAK
STTH2002CR
A1
A2
K
TO-220AB
STTH2002CT
A1
A2
K
A1
A2
K
K
D
2PAK
STTH2002CG
A1
A2
K
TO-220FPAB
STTH2002CFP
