Dura-Lag

DLS-R

Dual-Element, Time-Delay Construction Grade Fuses

1 –600 Amps

Class RK5 – 600 Volt

Form No. DLS-R

Page 3 of 3

Data Sheet: 1022

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is

intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained

in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

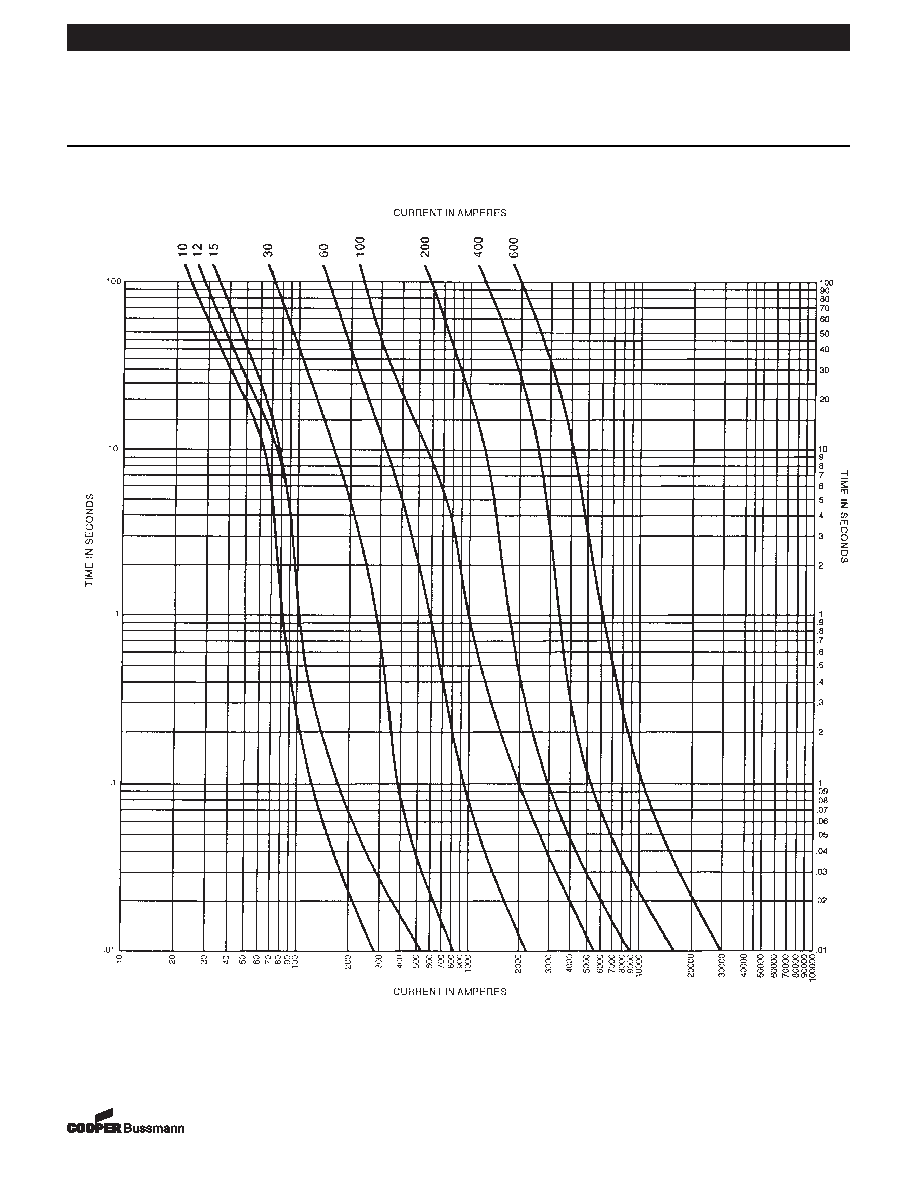

Time-Current Characteristic Curves–Average Melt

10-2-02

SB02295
