Rated Voltage

200VAC (r.m.s.)

Rated Current

1A max.

Insulation Resistance

1,000M Ω min. at 500VDC

Waterproof

IP67（mated condition）

Number of contact

42

Lock Type

One-touch Locking

Item

Material ／ Finish

Contact

Copper Alloy / Au over Ni Plating

Housing

PBT Resin(UL94V-0) / Black

Cable Clamp

Nylon Resin(UL94V-0) / Black

Dust cover

PBT Resin(UL94V-0) /Black（Plug）

Chroloprene rubber /Black（Receptacle）

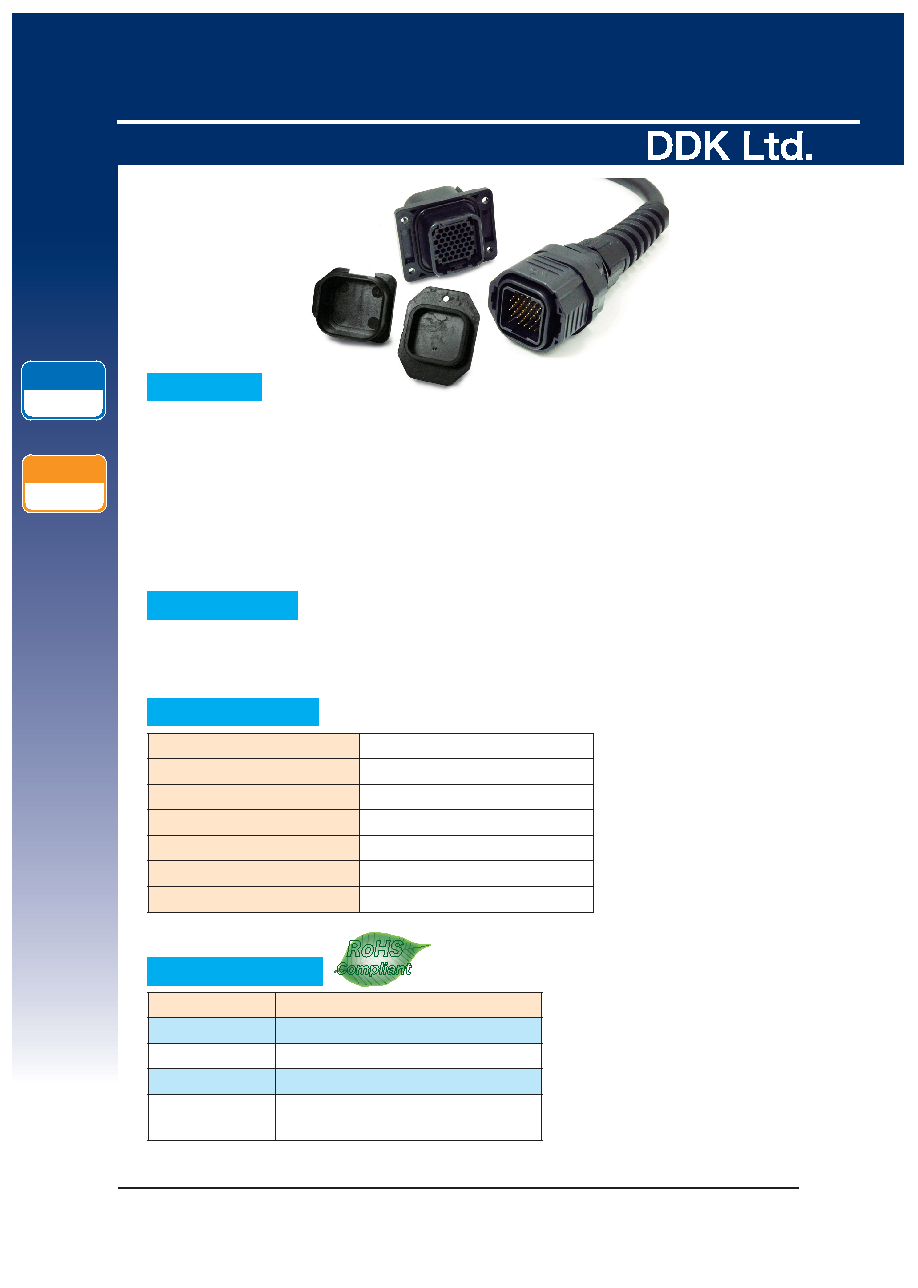

DIS Series

Waterproof Industrial Rectangular Connector

RoHS

Compliant

RoHS

Compliant

140219

APPLICATIONS

MATERIAL /FINISH

Waterproof

IP67

Lock Type

One-touch

Locking

OUTLINE

SPECIFICATIONS

DIS series is a lightweight, waterproof connector encased in a plastic shell.

The connector enables mating and unmating in a shorter time and has better operability in

limited space by employing a push/pull system for mating and unmating and having ridges on

the surface for ease of grabbing the product. The connector is equipped with a lock system to

prevent the connector from inadvertentently unmating, but the connector is still easily removable.

The plastic shell contains an O ring and is more waterproof than metal shell connectors when

the connector is mated. The adoption of crimping and the use of specialty tools reduces the

connection process time and improves connection reliability.
