 3 / 32 page
background image
Rev. 10
Rev. 10
February. 2011
February. 2011
www.acriche.com
www.acriche.com
3
Document No. : SSC-QP-7-07-24 (Rev.00)

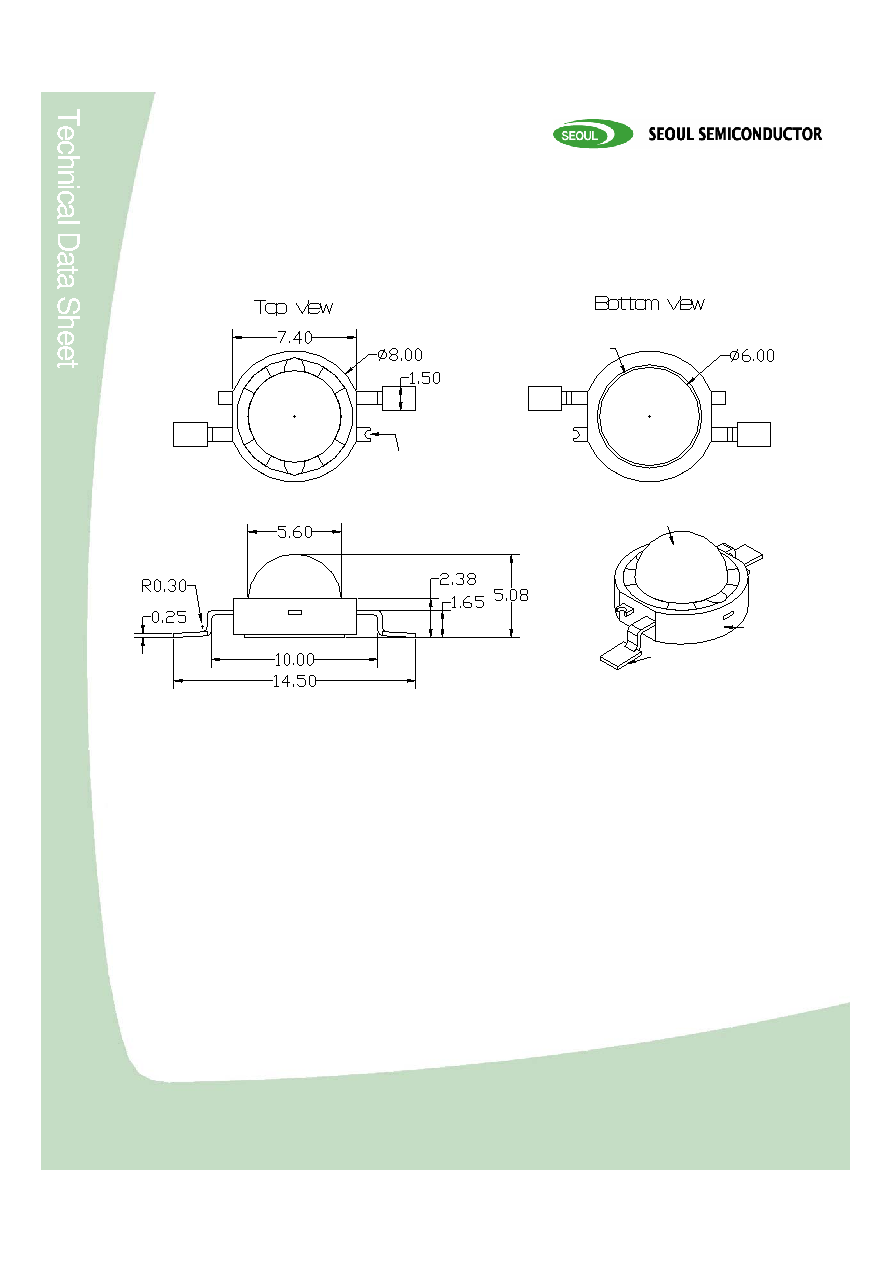

1. Dome Type
Notes :
1. All dimensions are in millimeters. (tolerance : ±0.2 )
2. Scale : none
3. Slug of package is connected to anode.
*The appearance and specifications of the product may be changed for improvement without
notice.
Body
Lead
Cathode Mark
Lens
SLUG
Outline Dimension
