CP20.241-R1, CP20.241-R2,

CP20.241-R3

CP-Series

June 2017 / Rev. 0.1 DS-CP20.241-R2-EN

All parameters are typical values specified at 20A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.

www.pulspower.com Phone +49 89 9278 0

Germany

6/30

P R E L I M I N A R Y

DC input

nom.

DC 110-150V

±20%

DC input range

min.

88-180Vdc

Continuous operation

DC input current

typ.

4.64A

At 110Vdc, at 20A

Allowed Voltage L/N to Earth

max.

375Vdc

Continuous, IEC 62477-1

Turn-on voltage

typ.

80Vdc

Steady state value

Shut-down voltage

typ.

70Vdc

Steady state value

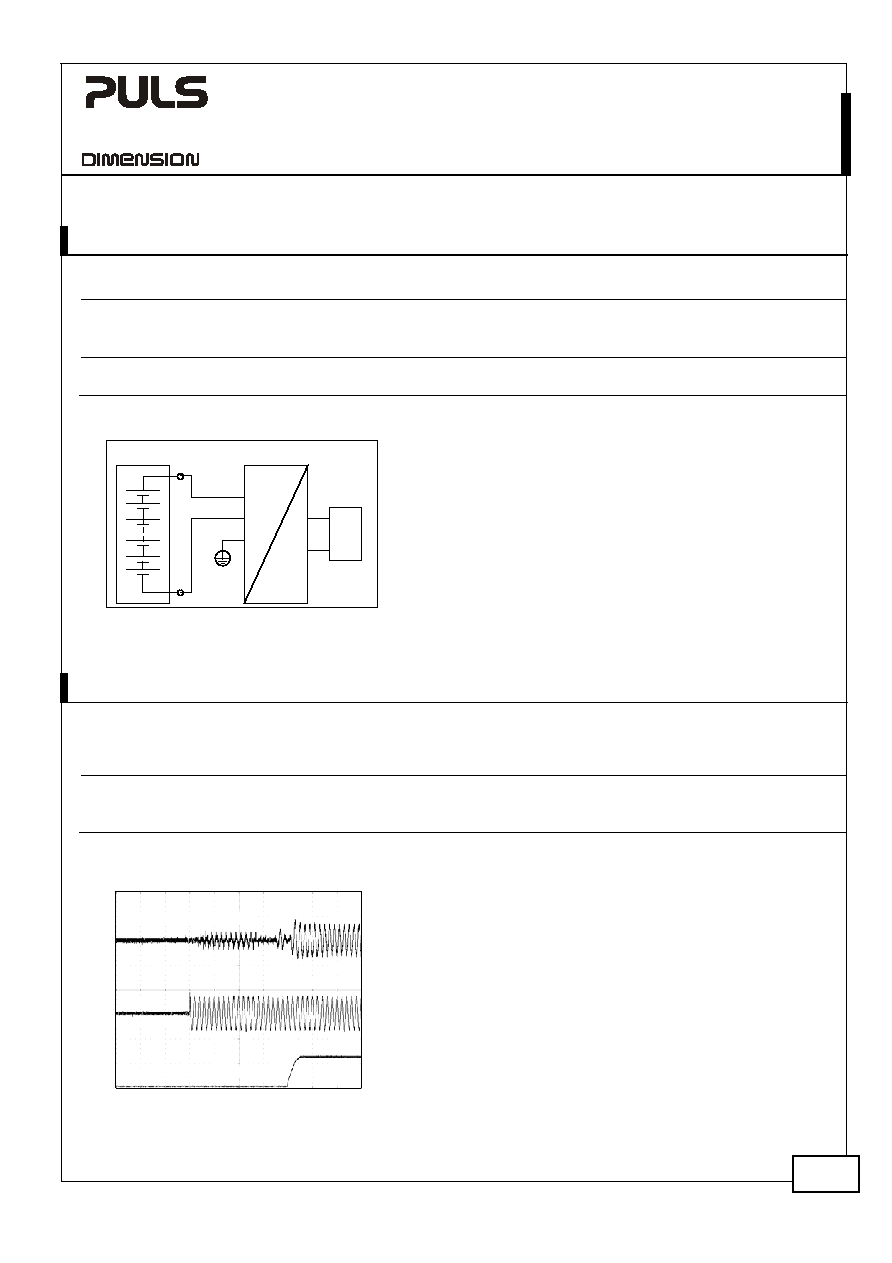

Fig. 4-1 Wiring for DC Input

Instructions for DC use:

+

-

Load

L

PE

+

-

Power Supply

AC

Battery

N

DC

a) Use a battery or a similar DC source. A supply from the

intermediate DC-bus of a frequency converter is not

recommended and can cause a malfunction or damage

the unit.

b) Connect +pole to L and –pole to N.

c) Connect the PE terminal to an earth wire or to the

machine ground.

An active inrush limitation circuit limits the input inrush current after turn-on of the input voltage.

The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on.

AC 100V

AC 120V

AC 230V

Inrush current

max.

Temperature independent

typ.

Temperature independent

Inrush energy

max.

negligible small

Fig. 5-1 Typical input inrush current

behaviour at nominal load and 25°C ambient

Output

100mS/DIV

Input

230Vac

24Vdc

Input Current 5A / DIV
