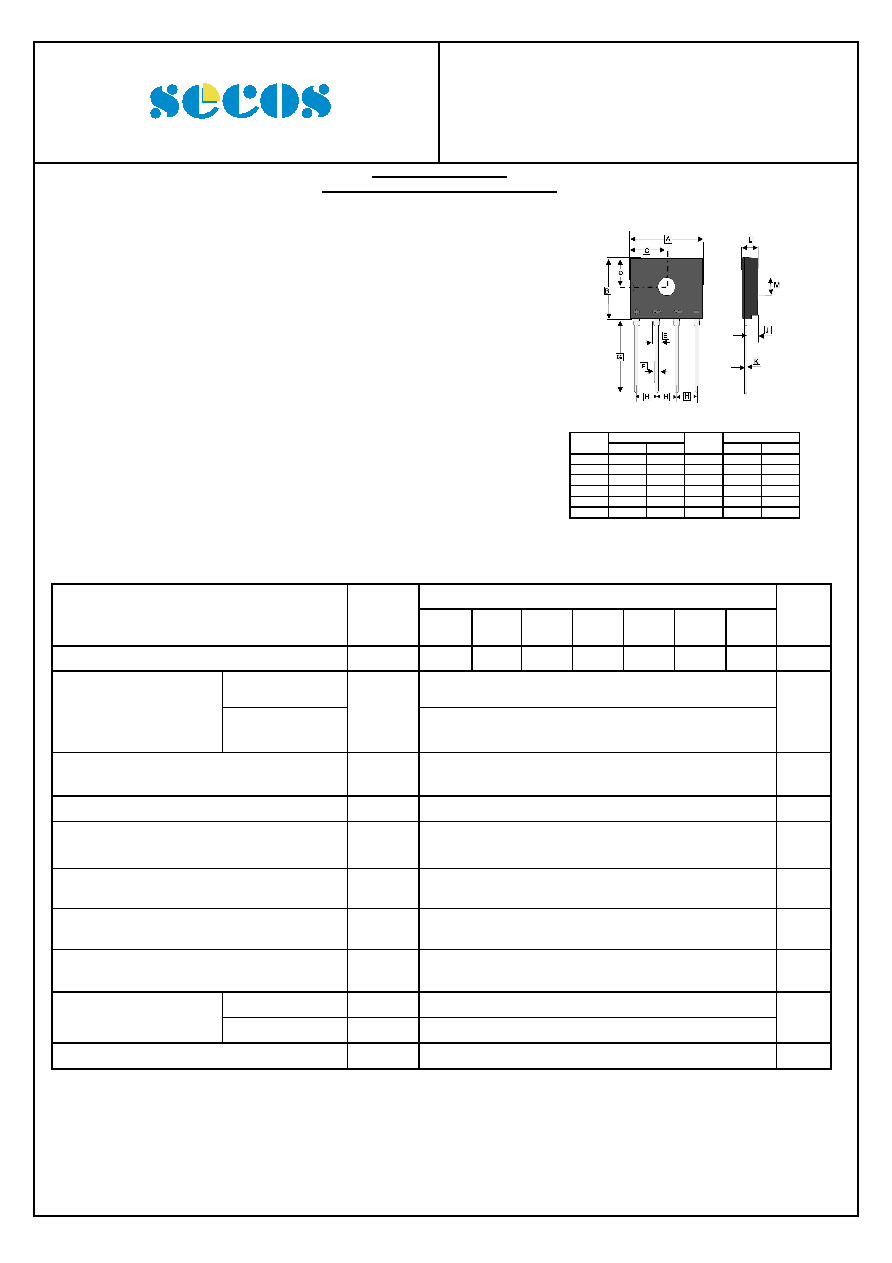

D2UB05~ D2UB100

Voltage 50V ~ 1000V

2.0Amp Glass Passivated Bridge Rectifiers

29-Jun-2015 Rev. A

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Glass passivated chip

High surge forward current capability

APPLICATIONS

General purpose 1 phase Bridge

rectifier applications

MAXIMUM RATINGS AND ELECTRICAL

CHARACTERISTICS

(Rating 25°C ambient temperature unless otherwise s pecified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%.)

Part Number

Parameter

Symbol

D2UB

05

D2UB

10

D2UB

20

D2UB

40

D2UB

60

D2UB

80

D2UB

100

Unit

Maximum Recurrent Peak Reverse Voltage

50

100

200

400

600

800

1000

V

Without heatsink

1.2

Average Rectified Output

Current @ 60Hz sine

wave, R-load

With heatsink

2.0

A

Surge(Non- repetitive)Forward Current

60

A

Current Squared Time

1

I

15

A

Dielectric Strength@ Terminals to case

，AC 1

minute

2

KV

Mounting Torque@ Recommend torque

：

5kg.cm

Tor

8

Kg.cm

measurement, Rating of per diode

1.05

V

measurement, Rating of per diode

10

µA

Without heatsink

55

Thermal Resistance

With heatsink

1.5

°C / W

Junction and Storage temperature range

-55~+150

°C

Notes：

1.

，Rating of per diode

Millimeter

Millimeter

REF.

Min.

Max.

REF.

Min.

Max.

A

13.3

14.3

G

13.1

13.5

B

10.3

11.3

H

3.7

3.9

C

6.4

7.4

J

2.0

2.2

D

4.5

5.5

K

0.4

0.6

E

1.05

1.45

L

2.6

3.6

F

0.60

0.85

M

3.1

3.4
