KEYBOARD INTRODUCTON

2.Connector Definition

CONI10

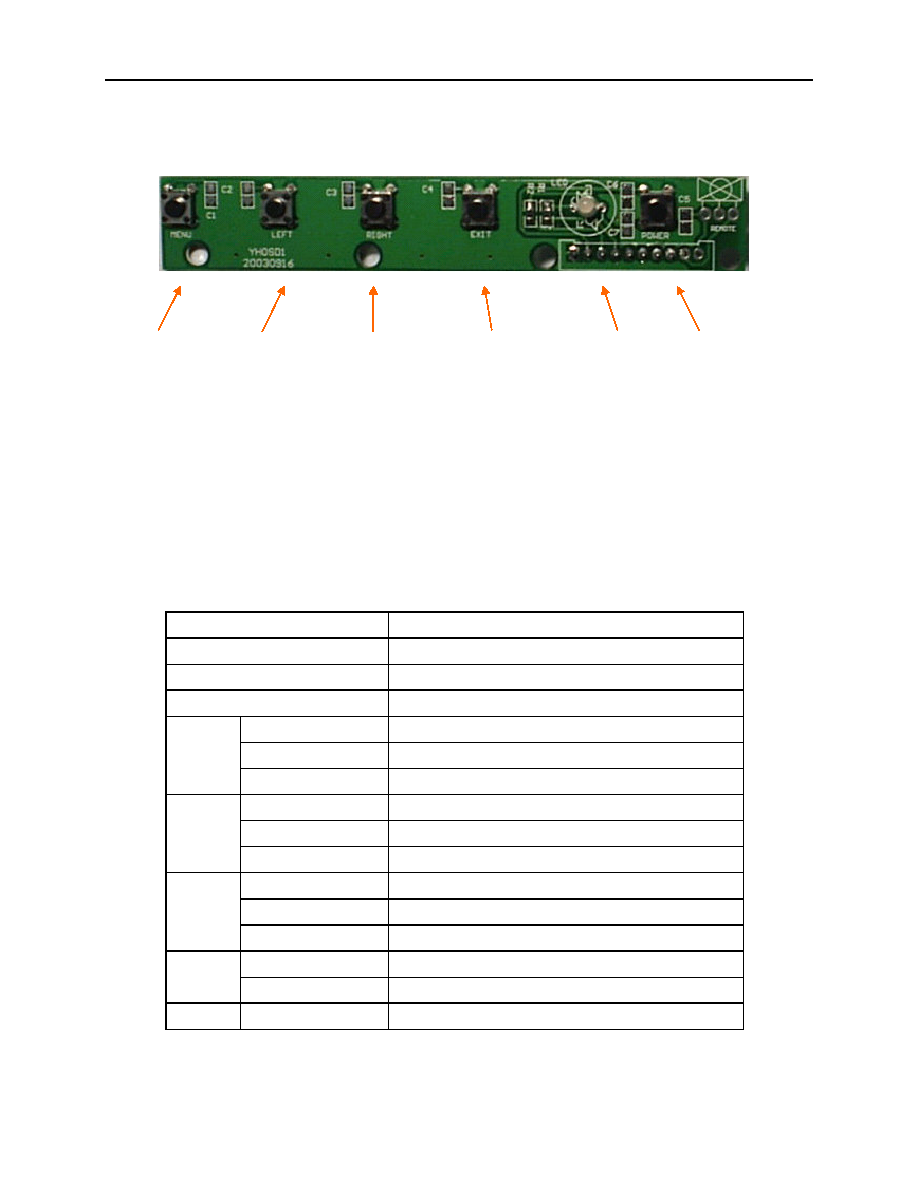

This connector connected to operation port of driver

Notes: The Connector define square pad as the first position

3.OSD Function Description

If you want to get the best effect, An adjustment of keyboard is required.

Then the menu will show as following:

Menu

Symbol

Description

Auto Configuration

Auto Configuration

Brightness

Brightness

Contrast

Contrast

Auto Balance

Automatically Keep Color’s balance

R ˆG ˆB

R ˆG ˆB ˆadjust single

Color

Color Temperature

Color Temperature

H-Position

Left and Right Adjustment Of Image Position

V-Position

UP and Down Adjustment Of Image Position

Position Auto center

Auto center

Phase

Clock Phase Adjust

Clock

Clock Frequency Adjust


Auto phase

Automatically Keep Phase’s balance

OSD Timeout

OSD Blanking Timer

Miscellane

ous

OSD Position

OSD Position On Screen

Information

Input VGA Signal

Notes:

Do as foregoing Description if want to get favorite image. But the best state is set

before shipment

MENU

LEFT

BRIGHT

EXIT

LCD

POWER
