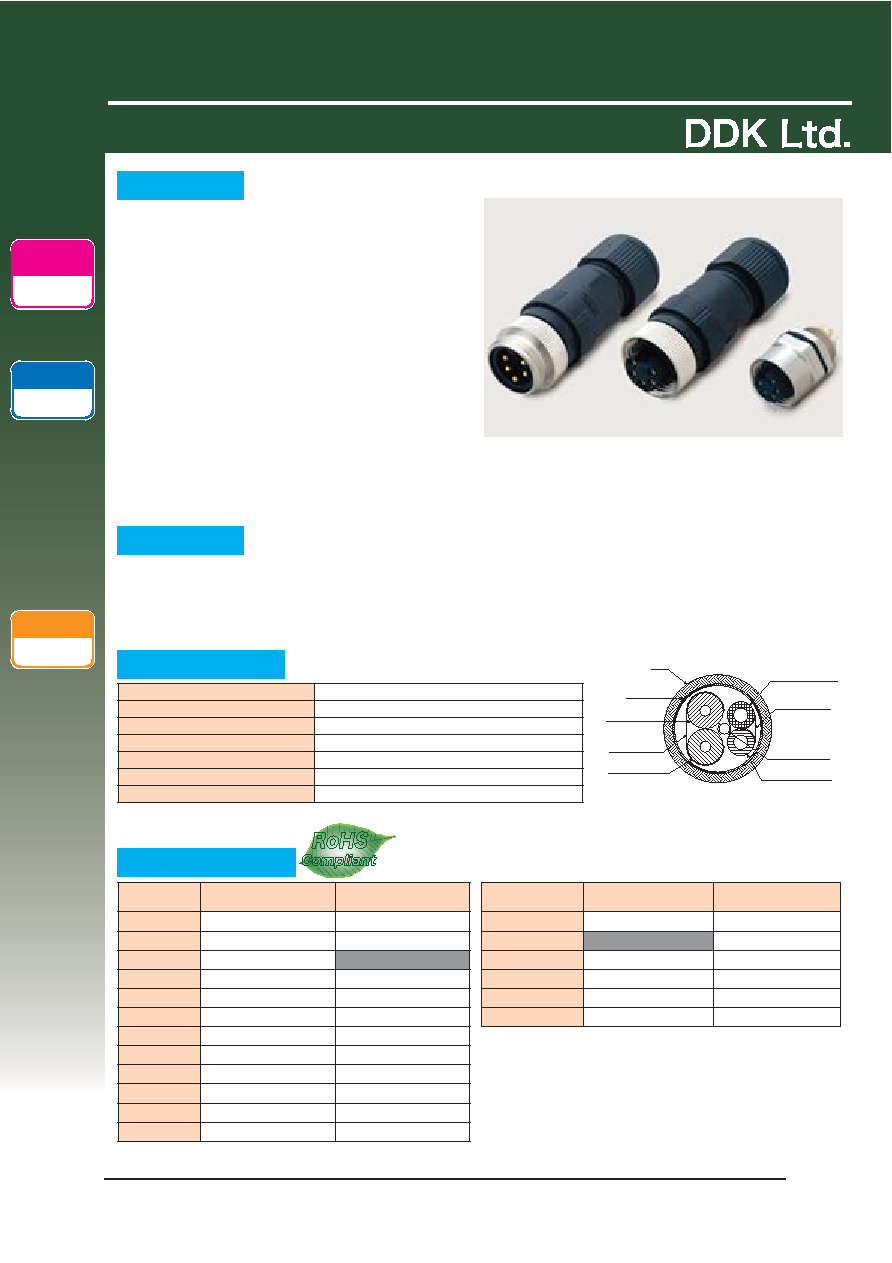

CM03 Series

DeviceNet Mini-Style Connectors

The CM03 series is the connector designed in

accordance with DeviceNet Mini Style, an oﬃcial

standard of ODVA (Open DeviceNet Vendor

Association, Inc.) for use in a DeviceNet communication

network. The DeviceNet communication network

provides connection among not only simple industrial

devices such as sensor, actuator, electrical and

electronic devices but also higher-level of devices

such as control equipment. The CM03 series is IP67

rated for protection against moisture, oil and dust. It

can be used in harsh environmental conditions. The

connectors are provided with a premating contact

which is a ﬁrst make-last break contact to protect

the circuit. When mated, the premating contact

is connected ﬁrst before the other contacts are

disconnected last when dismated.

・C-UL certiﬁed

・Protection from wiring errors by color-coding the contact holder with red, white, blue and black

・Miswiring prevention : "Red, black, white and blue" are shown to a contact holder.

No indication for drain wire.

[Applicable P/N : CM03-P5S, CM03-J5P]

Rated Current

8A/Contact

Rated Voltage

24V DC

Dielectric Withstanding Voltage

500V AC(r.m.s.) for 1 minute

Insulation Resistance

1,000 ΜΩ Min. at 250V DC

Operating Temperature Range

- 40℃ to +85℃

Waterproof

IP67 when mated

No. of Contacts

4 and 5

Applicable Cable

・Conductor size : AWG14 to AWG18

・Outside Dia. : φ 7mm to φ 12mm

AL / MY Shield

Jacket

Braid Shield

Data Insulation

Color：White

Drain Wire

ＤＣ Power Insulation

Color：Black

AL / MY Shield

Data Insulation

Color：Blue

ＤＣ Power Insulation

Color：Red

Item

Plug (With Socket Contacts)

Jack (With Pin Contacts)

Front Insulator

Synthetic Rubber/Black

Rear Insulator

Plastic(UL94V-0)/Black

Gasket

Synthetic Rubber/Black

Coupling Ring

Zinc Alloy/Nickel Plating

Contact

Copper Alloy/Gold Plating

Retainer Ring

Copper Alloy/Nickel Plating

O-Ring

Synthetic Rubber/Black

Contact Holder

Plastic(UL94V-0)/Black

Back Shell

Plastic(UL94V-0)/Black

Cable Holder

Plastic(UL94V-0)/White

Bushing

Synthetic Rubber/Black

Clamp Nut

Plastic(UL94V-0)/Black

Item

Receptacle

(With Pin Contacts)

Plug Receptacle

(With Socket Contacts)

Insulator

Synthetic Rubber/Black

Gasket(Mating Side)

Synthetic Rubber/Black

Contact

Copper Alloy/Gold Plating

Shell

Zinc Alloy/Nickel Plating

Nut

Copper Alloy/Nickel Plating

Zinc Alloy/Nickel Plating

Gasket(Mounting Side)

Synthetic Rubber/Black

RoHS

Compliant

RoHS

Compliant

110603

Waterproof

IP 67

DeviceNet

Conforming

Standard

Lock Type

Threaded

Coupling

◆ OUTLINE

◆ FEATURES

◆ SPECIFICATIONS

◆ MATERIAL/FINISH
