1 / 9 page

1/9

September 2001

s

EXPANDABLE WITH MULTIPLE PACKAGES

s

STANDARDIZED SYMMETRICAL OUTPUT

CHARACTERISTICS

s

QUIESCENT CURRENT SPECIFIED UP TO

20V

s

5V, 10V AND 15V PARAMETRIC RATINGS

s

INPUT LEAKAGE CURRENT

II = 100nA (MAX) AT VDD = 18V TA = 25°C

s

100% TESTED FOR QUIESCENT CURRENT

s

MEETS ALL REQUIREMENTS OF JEDEC

JESD13B " STANDARD SPECIFICATIONS

FOR DESCRIPTION OF B SERIES CMOS

DEVICES"

DESCRIPTION

The HCF4556B is a monolithic integrated circuit

fabricated

in

Metal

Oxide

Semiconductor

technology available in DIP and SOP packages.

The HCF4556B is a dual 1 of 4 decoder/

demultiplexer. Each decoder has two select inputs

(A and B), an Enable input (E), and four mutually

exclusive outputs. On the HCF4556B the outputs

are low on select. When the Enable input is high,

the outputs is high regardless of the state of the

select inputs A and B.

HCF4556B

DUAL BINARY TO 1 OF 4 DECODER/DEMULTIPLEXER

OUTPUT LOW ON SELECT

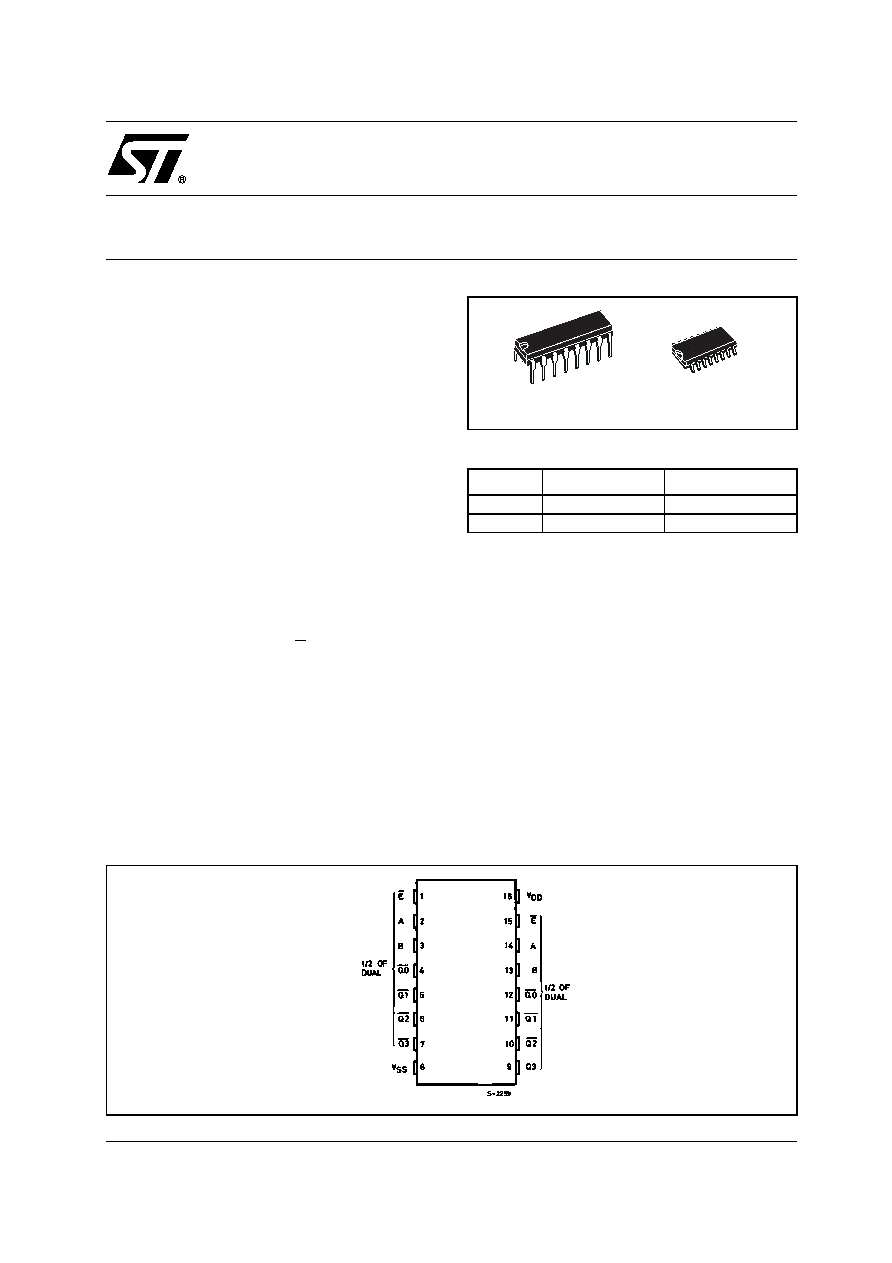

PIN CONNECTION

ORDER CODES

PACKAGE

TUBE

T & R

DIP

HCF4556BEY

SOP

HCF4556BM1

HCF4556M013TR

DIP

SOP
