ODiSI 6100

ODiSI 6100 Preliminary Data Sheet

ODiSI 6100 STANDARD SENSOR CONFIGURATION

1-8 Standard Length HD Sensors -

Measurement Rates

Strain Range

Max Length

2.5m

5m

10m

Gage Spacing

2.6mm

62Hz

40Hz

25Hz

±12k µstrain

1.3mm

31Hz

20Hz

12Hz

±12k µstrain

0.65mm

15Hz

10Hz

6Hz

±12k µstrain

ODiSI comes configured to measure standard “Rayleigh” High-Definition

Fiber Optic Sensors (HD-FOS). These are our most economical sensors

based on measurement of the Rayleigh backscatter in optical fiber and

are best suited for static or quasi-static applications. HD sensors are also

perfect for measuring large strain gradients. The table below outlines

the sensor lengths and associated resolutions one can achieve with the

standard/base configuration ODiSI 6100.

Transform Structural Testing

ODiSI is ideal for strain measurements on

and in composite materials. From materials

characterization, to FE model verification all the

way to full scale test.

Accelerate Design

With continuous, high resolution mapping

of strain and temperature, “hot spots” and

large strain gradients are easily located and

accurately characterized.

Ensure Quality

With no “line of sight” issues and the ability

to bond to curved and otherwise difficult to

gage locations, ODiSI sensors go where no

other sensors can so you get the full picture

of performance.

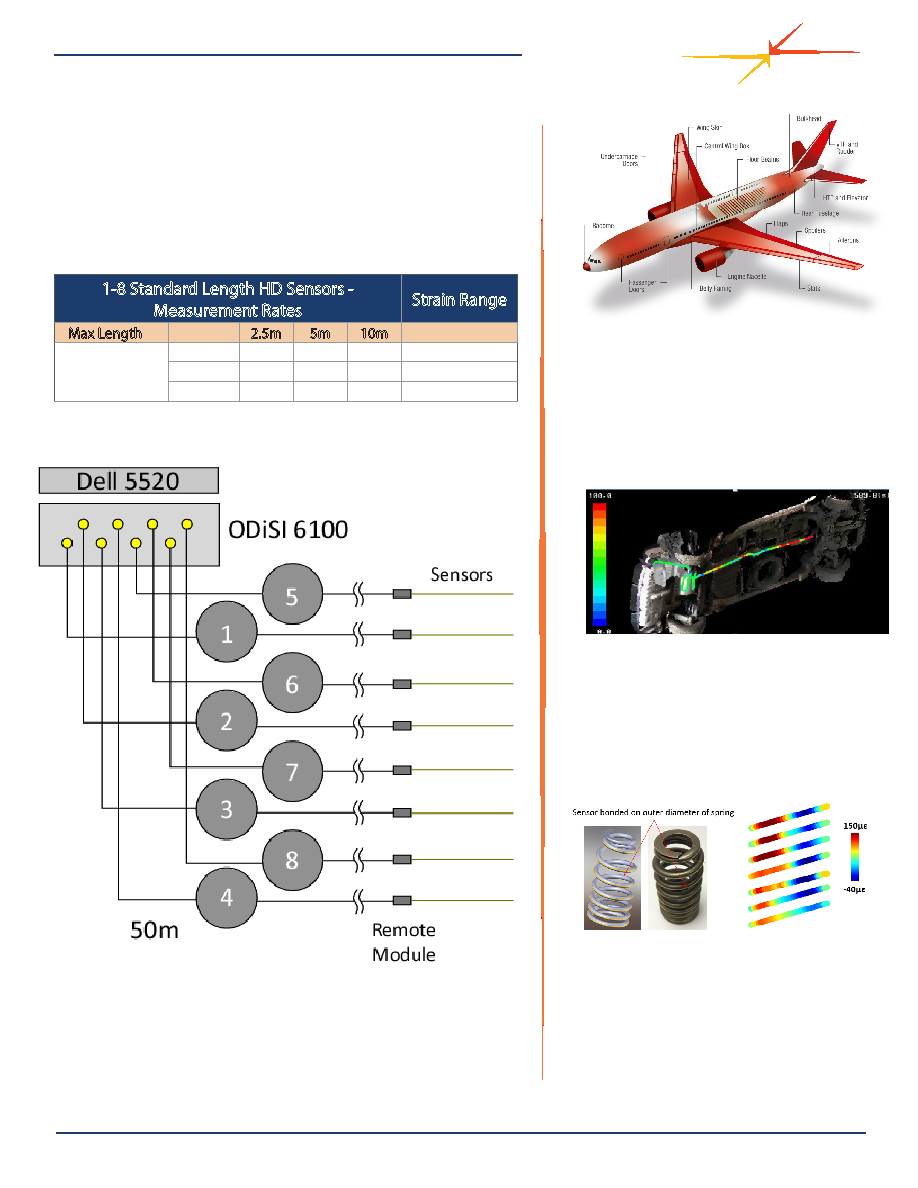

Graphical depiction of an 8-channel ODiSI 6100 (6108) configuration

showing stand-off cables, remote modules and sensors
