Designed for Rugged Excellence
2-35
2-35

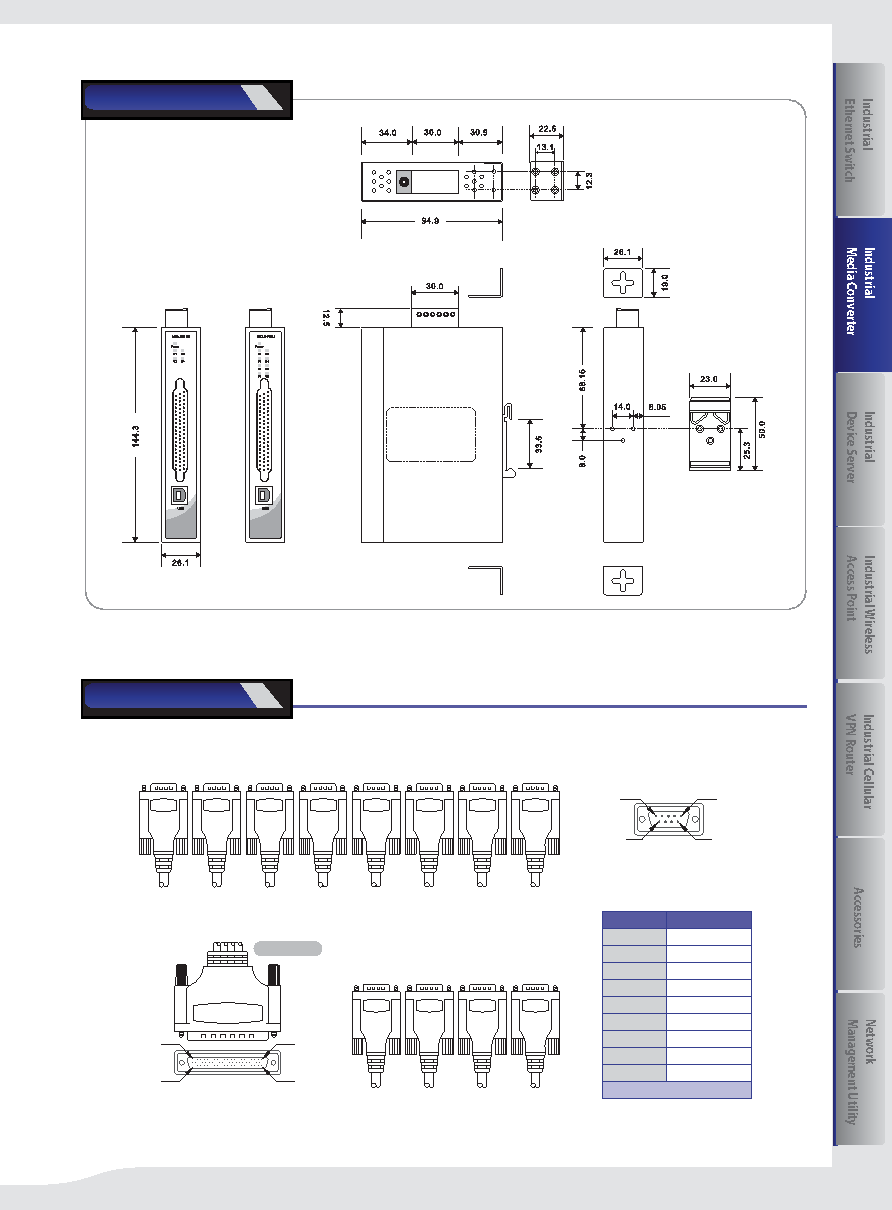

Dimensions
(Unit=mm)
Pin Definitions
Cable of DB62 male to 4/8-port DB9 male connector is provided. The cable length is 1 meter.
Pin #
RS-232
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
N.C.
RS-232 mode act as DTE
8-port DB9 Male connector
DB9 Male Pin Assignment
4-port DB9 Male connector
DB62 Male with 4/8-port
RS-232 connector
1
2
3
4
1
2
3
4
5
6
7
8
OD 5.0mm
P1
P6
P9
P5
P1
P21
P43
P62
v1.2 / Dec, 2011
