CRO2AM datasheet(1/5 Pages) MITSUBISHI

부품명	CRO2AM

상세설명	LOW POWER USE PLANAR PASSIVATION TYPE

PDF	5 Pages

Scroll/Zoom	100%

제조업체	MITSUBISHI [Mitsubishi Electric Semiconductor]

홈페이지	http://www.mitsubishichips.com

Logo

1 / 5 page

Sep.2000

TYPE

NAME

VOLTAGE

CLASS

φ5.0 MAX

4.4

1.25 1.25

CIRCUMSCRIBE

CIRCLE

φ0.7

1

3 2

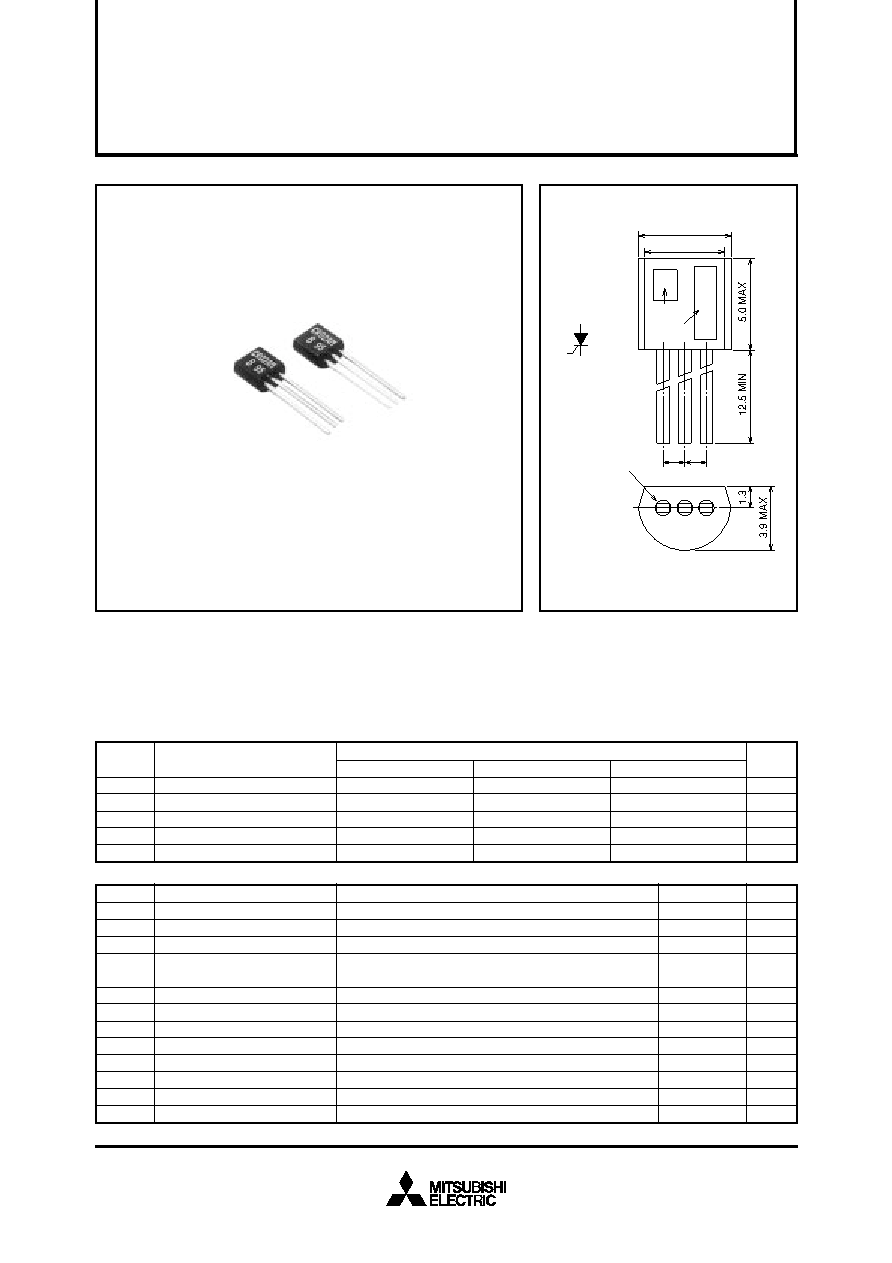

OUTLINE DRAWING

Dimensions

in mm

JEDEC : TO-92

2

1

3

1

2

3

CATHODE

ANODE

GATE

MITSUBISHI SEMICONDUCTOR

〈THYRISTOR〉

CR02AM

LOW POWER USE

PLANAR PASSIVATION TYPE

CR02AM

APPLICATION

Solid state relay, leakage protector, fire alarm, timer, ringcounter, electric blankets, strobe flasher,

other general purpose control applications

Symbol

VRRM

VRSM

VR (DC)

VDRM

VD (DC)

Parameter

Repetitive peak reverse voltage

Non-repetitive peak reverse voltage

DC reverse voltage

Repetitive peak off-state voltage

V1

DC off-state voltage

V1

Voltage class

Unit

V

MAXIMUM RATINGS

4

200

300

160

200

160

6

300

400

240

300

240

•IT (AV) ........................................................................ 0.3A

•VDRM .................................................... 200V/300V/400V

•IGT ......................................................................... 100

µA

Symbol

IT (RMS)

IT (AV)

ITSM

I2t

PGM

PG (AV)

VFGM

VRGM

IFGM

Tj

Tstg

—

Parameter

RMS on-state current

Average on-state current

Surge on-state current

I2t for fusing

Peak gate power dissipation

Average gate power dissipation

Peak gate forward voltage

Peak gate reverse voltage

Peak gate forward current

Junction temperature

Storage temperature

Weight

Conditions

Commercial frequency, sine half wave, 180

° conduction, Ta=30°C

60Hz sine half wave 1 full cycle, peak value, non-repetitive

Value corresponding to 1 cycle of half wave 60Hz, surge on-state

current

Typical value

Unit

A

A2s

W

V

A

°C

g

Ratings

0.47

0.3

10

0.4

0.1

0.01

6

0.1

–40 ~ +125

0.23

V1. With Gate-to-cathode resistance RGK=1k

Ω

8

400

500

320

400

320
