SSM2518
Datasheet
Rev. B | Page 30 of 48

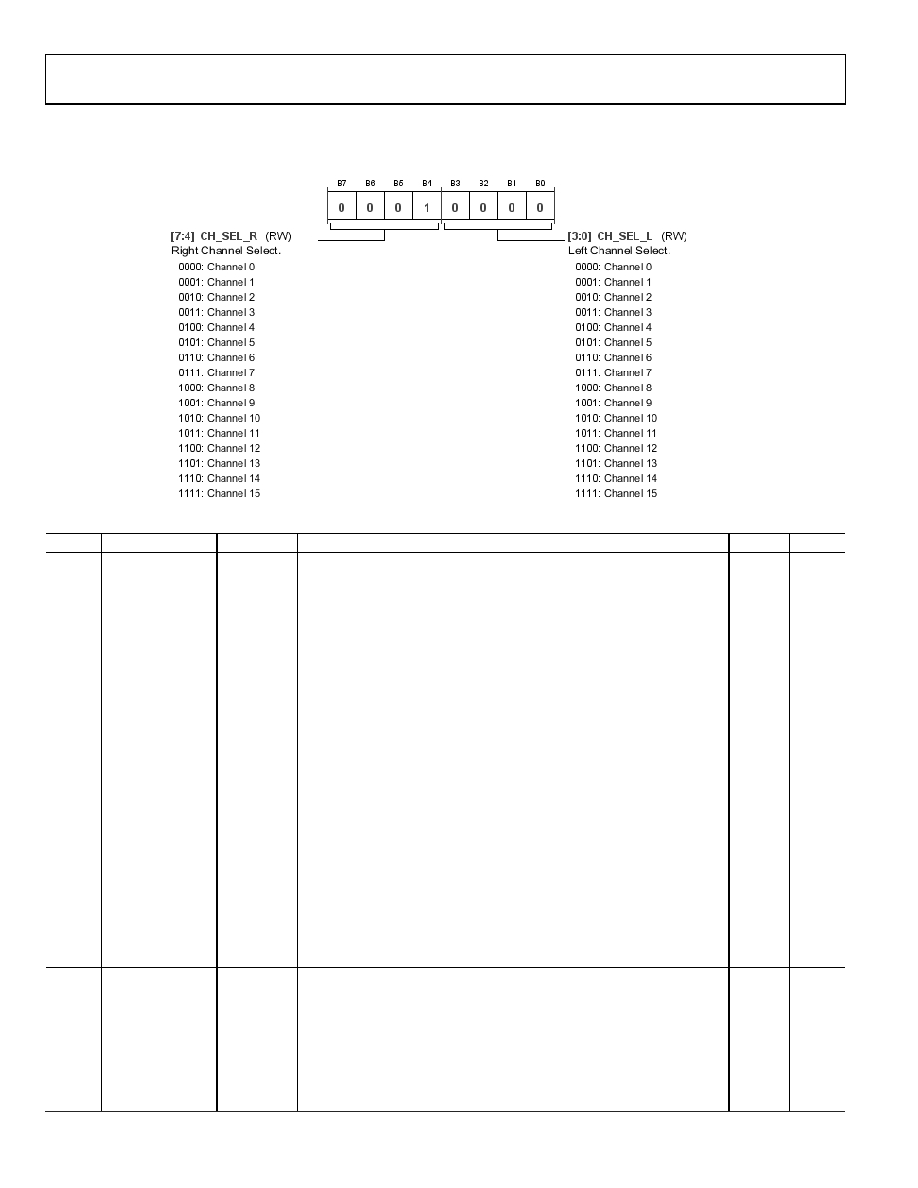

CHANNEL MAPPING CONTROL REGISTER
Address: 0x04, Reset: 0x10, Name: Channel_Mapping_Control
Table 17. Bit Descriptions for Channel_Mapping_Control
Bits
Bit Name
Settings
Description
Reset
Access
[7:4]
CH_SEL_R
Right Channel Select. Channel 0 valid when running in mono (PCM)
mode.
0x1
RW
Channel 0 to Channel 1 valid when running in stereo and 2-slot TDM
modes.
Channel 0 to Channel 3 valid when running in 4-slot TDM mode.
Channel 0 to Channel 7 valid when running in 8-slot TDM mode.
Channel 0 to Channel 15 valid when running in 16-slot TDM mode.
0000
Channel 0
0001
Channel 1
0010
Channel 2
0011
Channel 3
0100
Channel 4
0101
Channel 5
0110
Channel 6
0111
Channel 7
1000
Channel 8
1001
Channel 9
1010
Channel 10
1011
Channel 11
1100
Channel 12
1101
Channel 13
1110
Channel 14
1111
Channel 15
[3:0]
CH_SEL_L
Left Channel Select. Channel 0 valid when running in mono (PCM) mode.
0x0
RW
Channel 0 to Channel 1 valid when running in stereo and 2-slot TDM
modes.
Channel 0 to Channel 3 valid when running in 4-slot TDM mode.
Channel 0 to Channel 7 valid when running in 8-slot TDM mode.
Channel 0 to Channel 15 valid when running in 16-slot TDM mode.
0000
Channel 0
0001
Channel 1
