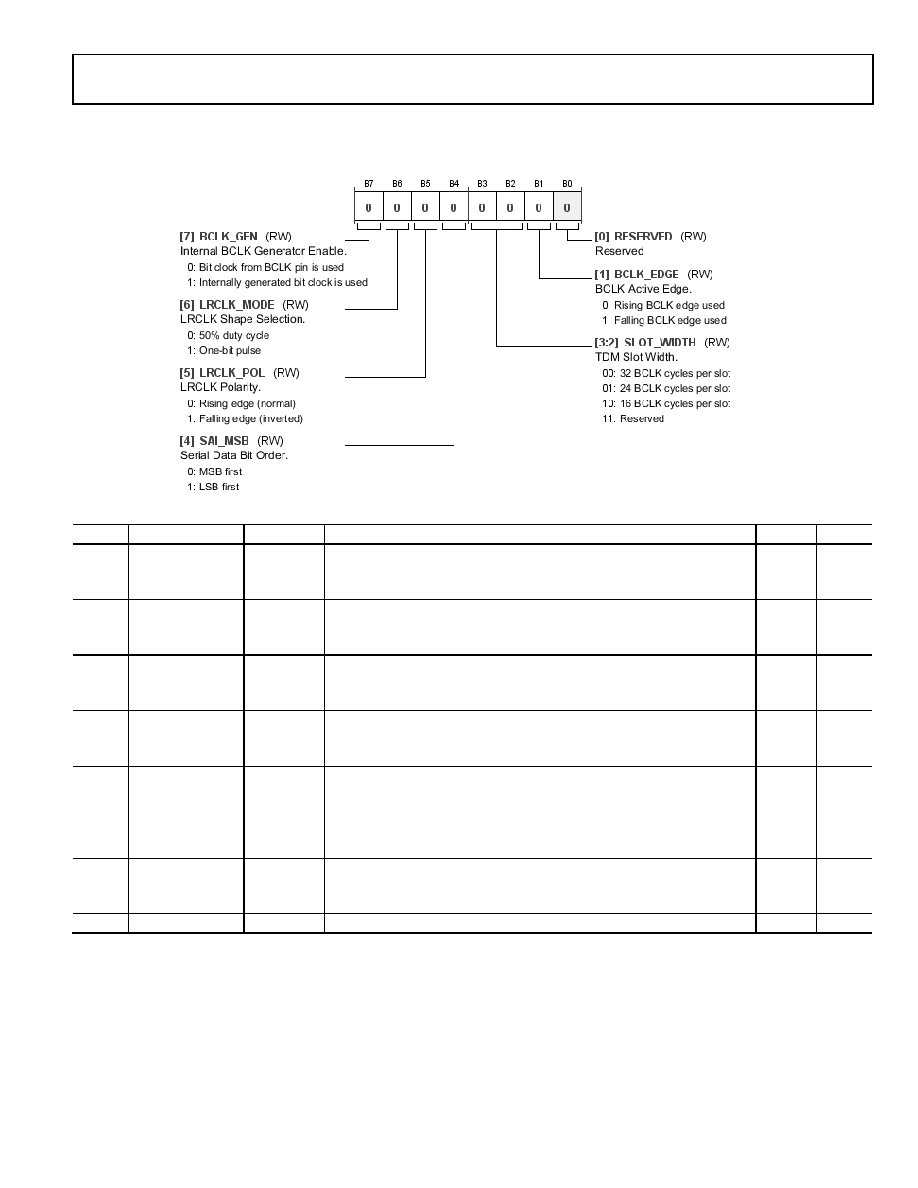

29 / 48 page ![]() Datasheet SSM2518 Rev. B | Page 29 of 48 SERIAL AUDIO INTERFACE CONTROL REGISTER Address: 0x03, Reset: 0x00, Name: Serial_Interface_Control Table 16. Bit Descriptions for Serial_Interface_Control Bits Bit Name Settings Description Reset Access 7 BCLK_GEN Internal BCLK Generator Enable. 0x0 RW 0 Bit clock from BCLK pin is used 1 Internally generated bit clock is used 6 LRCLK_MODE LRCLK Shape Selection. Required only for TDM modes. 0x0 RW 0 50% duty cycle 1 1-bit pulse 5 LRCLK_POL LRCLK Polarity. 0x0 RW 0 Rising edge (normal) 1 Falling edge (inverted) 4 SAI_MSB Serial Data Bit Order. 0x0 RW 0 MSB first 1 LSB first [3:2] SLOT_WIDTH TDM Slot Width. Required only for TDM modes. 0x0 RW 00 32 BCLK cycles per slot 01 24 BCLK cycles per slot 10 16 BCLK cycles per slot 11 Reserved 1 BCLK_EDGE BCLK Active Edge. 0x0 RW 0 Rising BCLK edge used 1 Falling BCLK edge used 0 RESERVED Reserved. 0x0 RW |
|
