V680-HS52-R datasheet(23/59 Pages) OMRON

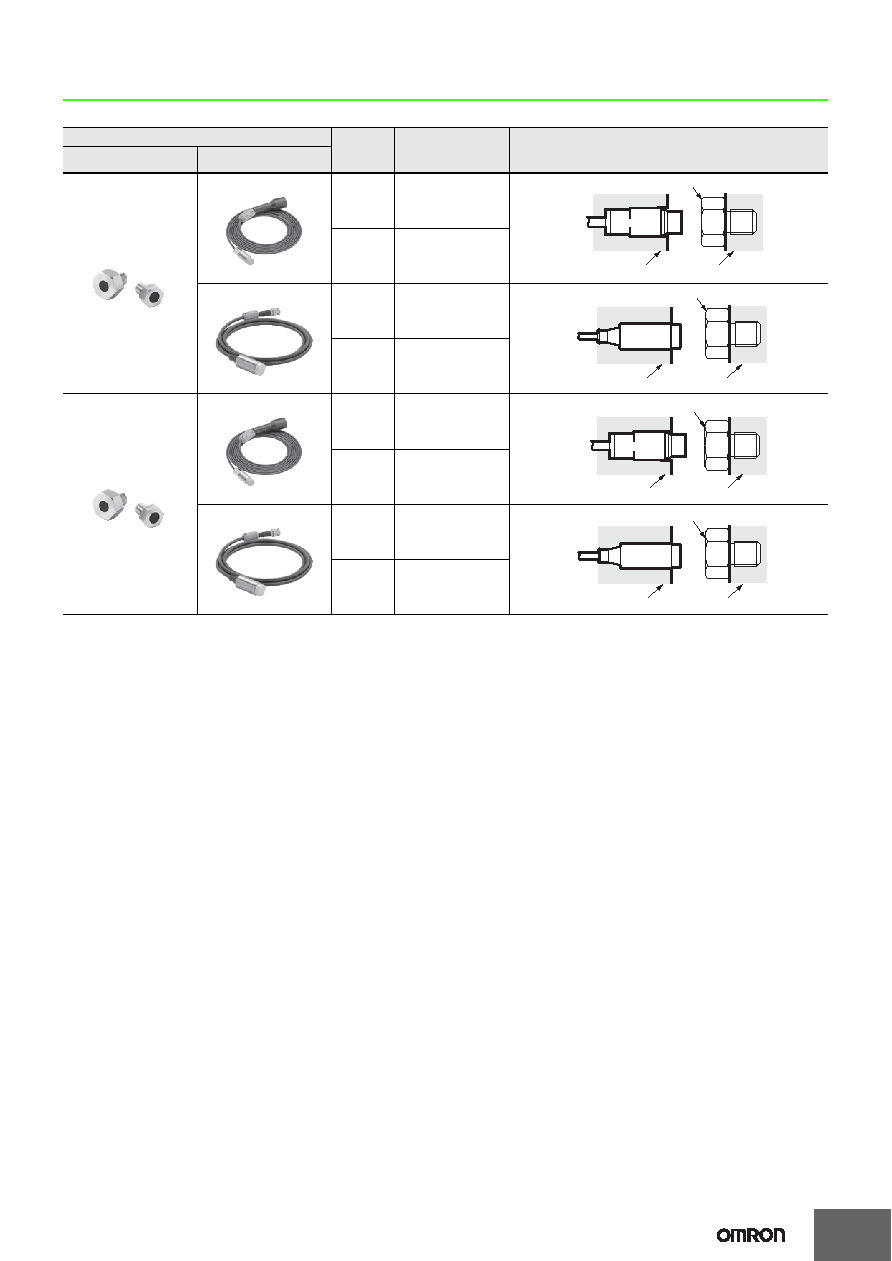

23 / 59 page

V680 Series

Bolt RF Tag (1-kbyte or 2-kbyte Memory) Communication

* Mounting can be performed in metal, but the communications distance will decrease compared to mounting in nonmetal.

Confirm performance using the actual devices before actual operation.

Recommended combination

Function

Communication

range

(unit: mm)

RF Tag and Antenna mounting conditions

RF Tag

Antenna

V680-D1KP52M-BT01/

-BT11

V680-HS51

Read

distance

0.5 to 2.5

(axis offset ±2)

Write

distance

0.5 to 2.0

(axis offset ±2)

V680-HS52

Read

distance

0.5 to 3.0

(axis offset ±2)

Write

distance

0.5 to 2.5

(axis offset ±2)

V680-D2KF52M-BT01/

-BT11

V680-HS51

Read

distance

0.5 to 2.5

(axis offset ±2)

Write

distance

0.5 to 2.5

(axis offset ±2)

V680-HS52

Read

distance

0.5 to 2.0

(axis offset ±2)

Write

distance

0.5 to 2.0

(axis offset ±2)

V680-D1KP52M-BT01/-BT11

Metallic

V680-HS51

Metallic/Non-metallic

V680-D1KP52M-BT01/-BT11

V680-HS52

Non-Metallic

Metallic/Non-metallic

V680-D2KF52M-BT01/-BT11

V680-HS51

Metallic

Metallic/Non-metallic

V680-D2KF52M-BT01/-BT11

V680-HS52

Non-Metallic

Metallic/Non-metallic
