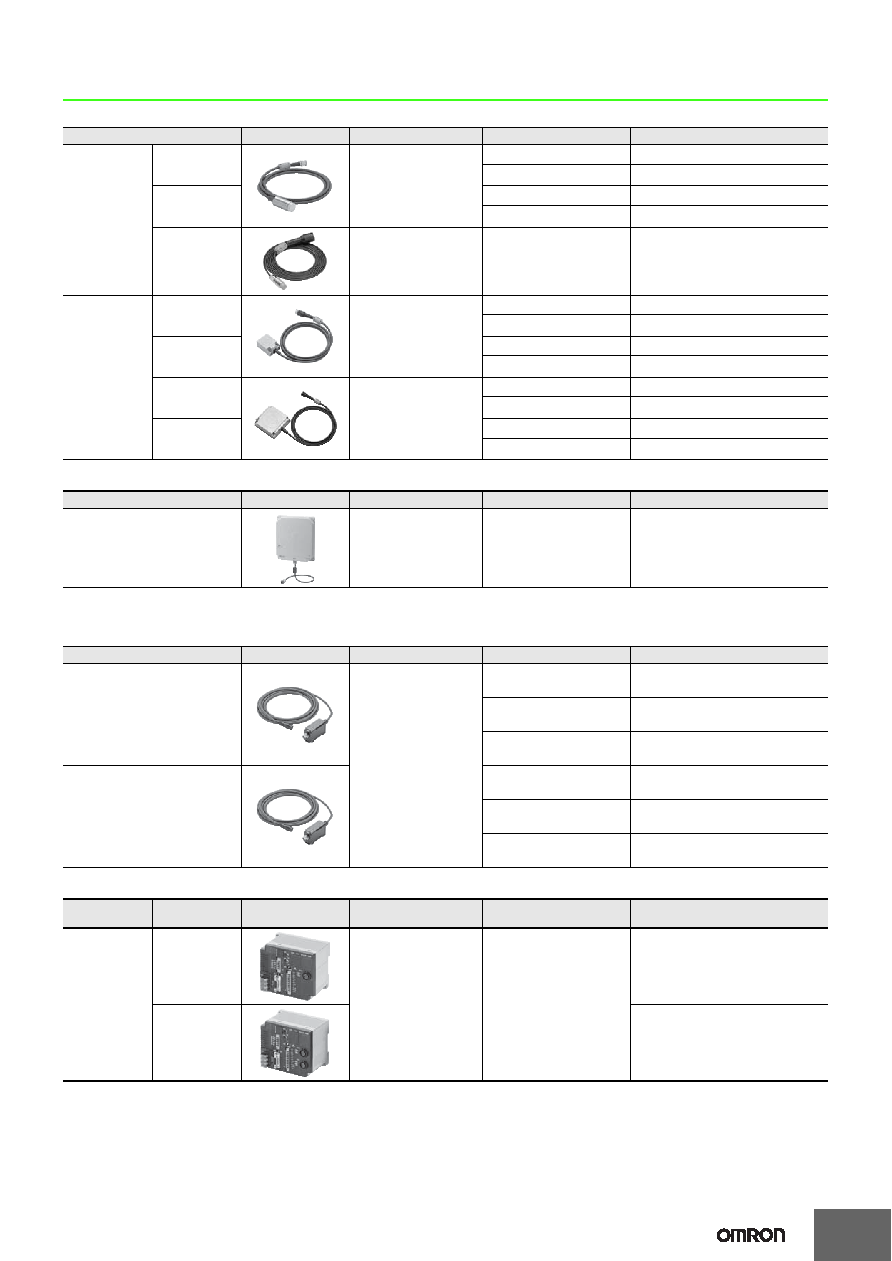

V680 Series

Antenna (Detachable Amplifier Unit Type)

Antenna with Built-in Amplifier

* Use an Antenna Cable to connect the Antenna to the Controller.

The maximum cable length is 30.5 m.

Amplifier Unit

ID Controller

Type

Appearance

Size

Cable length

Model

Cylindrical

Standard cable,

waterproof

connector

M22

× 65 mm

2 m

V680-HS52-W 2M

12.5 m

V680-HS52-W 12.5M

Flexible cable,

nonwaterproof

connector

2 m

V680-HS52-R 2M

12.5 m

V680-HS52-R 12.5M

Standard cable,

nonwaterproof

connector

M12

× 35 mm

2 m

V680-HS51 2M

Square

Standard cable,

waterproof

connector

× 53 × 23 mm

2 m

V680-HS63-W 2M

12.5 m

V680-HS63-W 12.5M

Flexible cable,

nonwaterproof

connector

2 m

V680-HS63-R 2M

12.5 m

V680-HS63-R 12.5M

Standard cable,

waterproof

connector

100

× 100 × 30 mm

2 m

V680-HS65-W 2M

12.5 m

V680-HS65-W 12.5M

Flexible cable,

nonwaterproof

connector

2 m

V680-HS65-R 2M

12.5 m

V680-HS65-R 12.5M

Type

Appearance

Size

Cable length

Model

Square

250

× 200 × 35 mm

0.5 m

V680-H01-V2

Type

Appearance

Size

Cable length

Model

For 1-kbyte memory

× 40 × 65 mm

0.5 m

V680-HA63A 0.5M

5 m

V680-HA63A 5M

10 m

V680-HA63A 10M

For 2-/8-kbyte memory

0.5 m

V680-HA63B 0.5M

5 m

V680-HA63B 5M

10 m

V680-HA63B 10M

Type

No. of connectable

Amplifiers

Appearance

Size

Communication interface

Model

DC power supply

Single

105

× 90 × 65 mm

RS232C,

RS422/RS485

V680-CA5D01-V2

Dual

V680-CA5D02-V2
