Data Sheet
SSM2519
Rev. 0 | Page 27 of 28

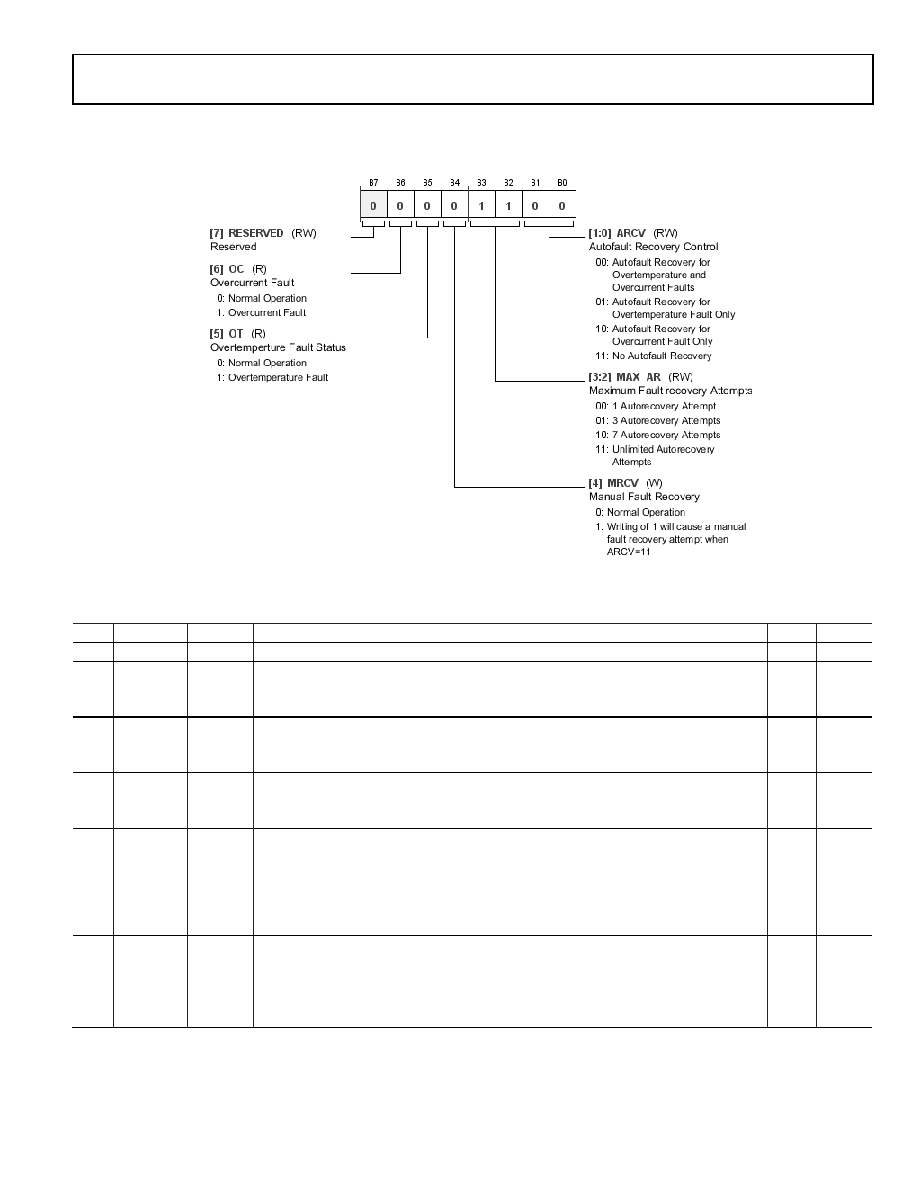

FAULT CONTROL REGISTER
Address: 0x07, Reset: 0x0C, Name: FAULT_CTRL1
Table 23. Bit Descriptions for FAULT_CTRL1
Bits
Bit Name
Settings
Description
Reset
Access
7
RESERVED
Reserved.
0x0
RW
6
OC
Overcurrent fault.
0x0
R
0
Normal operation
1
Overcurrent fault
5
OT
Overtemperture fault status.
0x0
R
0
Normal operation
1
Overtemperature fault
4
MRCV
Manual fault recovery.
0x0
W
0
Normal operation
1
Writing Logic 1 causes a manual fault recovery attempt when ARCV = 11
[3:2]
MAX_AR
Maximum fault recovery attempts. The maximum automatic fault recovery bit
determines how many attempts at autorecovery are performed.
0x3
RW
00
One autorecovery attempt
01
Three autorecovery attempts
10
Seven autorecovery attempts
11
Unlimited autorecovery attempts
[1:0]
ARCV
Autofault recovery control.
0x0
RW
00
Autofault recovery for overtemperature and overcurrent faults
01
Autofault recovery for overtemperature fault only
10
Autofault recovery for overcurrent fault only
11
No autofault recovery
