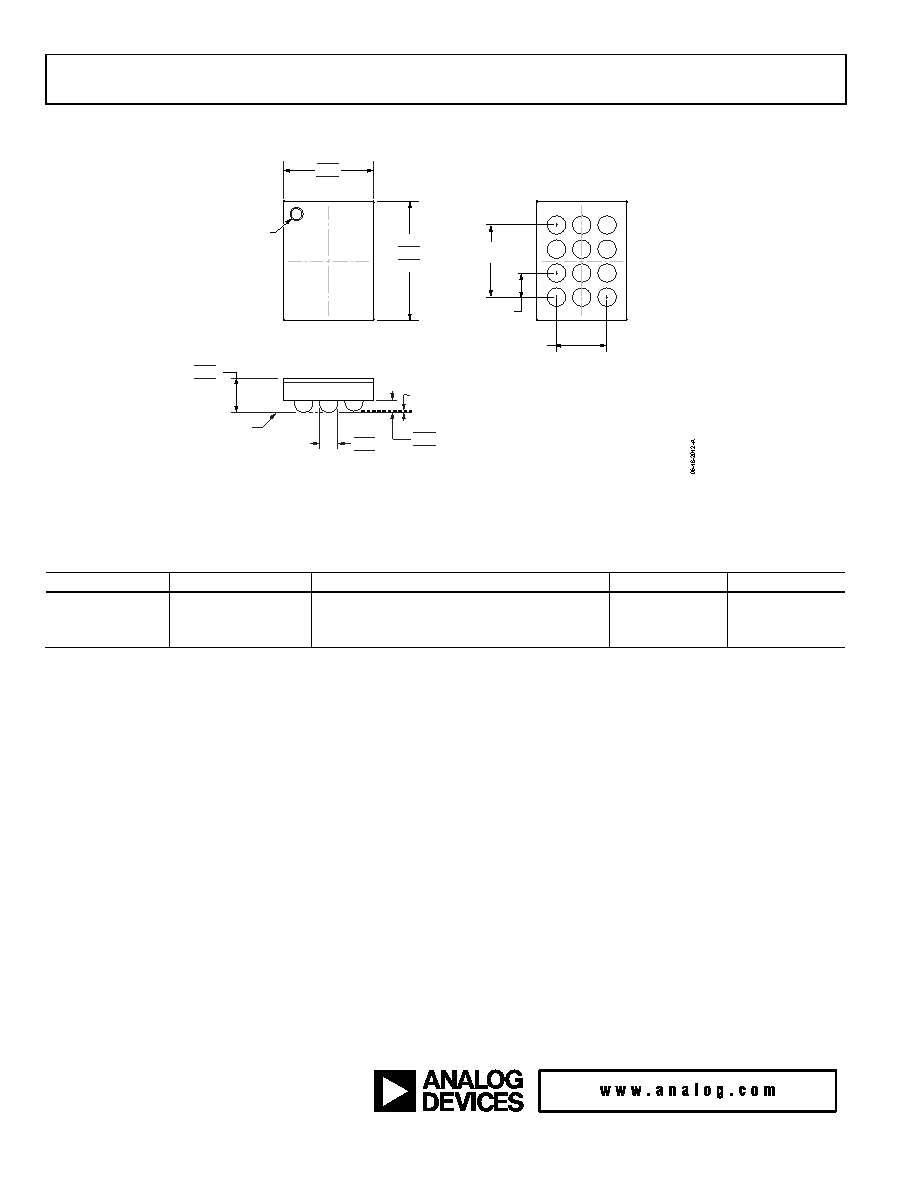

background image
SSM2519
Data Sheet
Rev. 0 | Page 28 of 28
OUTLINE DIMENSIONS
Figure 37. 12-Ball Wafer Level Chip Scale Package [WLCSP]
(CB-12-6)
Dimensions shown in millimeters
ORDERING GUIDE
Model1
Temperature Range
Package Description
Package Option
Branding
SSM2519ACBZ-R7
−40°C to +85°C
12-Ball Wafer Level Chip Scale Package [WLCSP]
CB-12-6
Y4B
SSM2519ACBZ-RL
−40°C to +85°C
12-Ball Wafer Level Chip Scale Package [WLCSP]
CB-12-6
Y4B
EVAL-SSM2519Z
Evaluation Board
1 Z = RoHS Compliant Part.
A
B
C
D
0.560
0.500
0.440
1.455
1.415
1.375
1.705
1.665
1.625
1
2
3
BOTTOM VIEW
(BALL SIDE UP)
TOP VIEW
(BALL SIDE DOWN)
END VIEW
0.300
0.260
0.220
1.20
REF
0.80
REF
0.40
BSC
BALL A1
IDENTIFIER
SEATING
PLANE
0.230
0.200
0.170
COPLANARITY
0.05
©2012 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D10750-0-7/12(0)
