PBYG10Y
ISO 9001: 2015 CERTIFIED

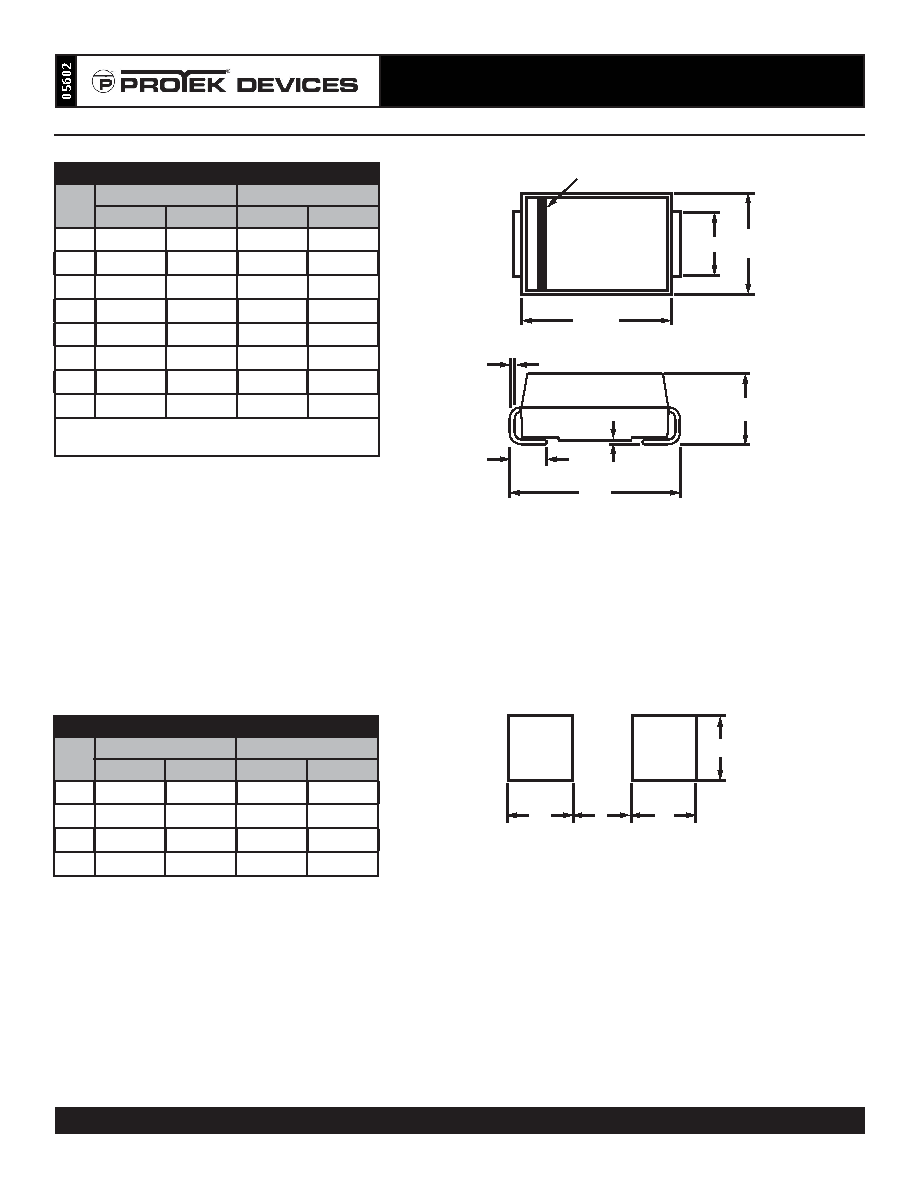

DO-214AC PACKAGE INFORMATION
OUTLINE DIMENSIONS
DIM
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
A
1.23
1.63
0.049
0.064
B
4.10
4.55
0.162
0.179
C
2.51
2.76
0.099
0.109
D
1.96
2.26
0.077
0.089
E
0.75
1.51
0.03
0.06
F
0.00
0.20
0.000
0.008
G
4.87
5.22
0.192
0.206
H
0.15
0.30
0.006
0.012
NOTES
1. Dimensions are exclusive of mold flash and metal burrs.
PAD LAYOUT DIMENSIONS
DIM
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
A
1.57
-
0.062
-
B
1.55
-
0.061
-
C
-
2.28
-
0.090
D
1.55
-
0.061
-
A
C
B
Polarity Band
D
G
F
E
H
A
B
C
D
