IP5322
V1.02
Email: service@injoinic.com
16 / 23
Copyright © 2015, Injoinic Corp.

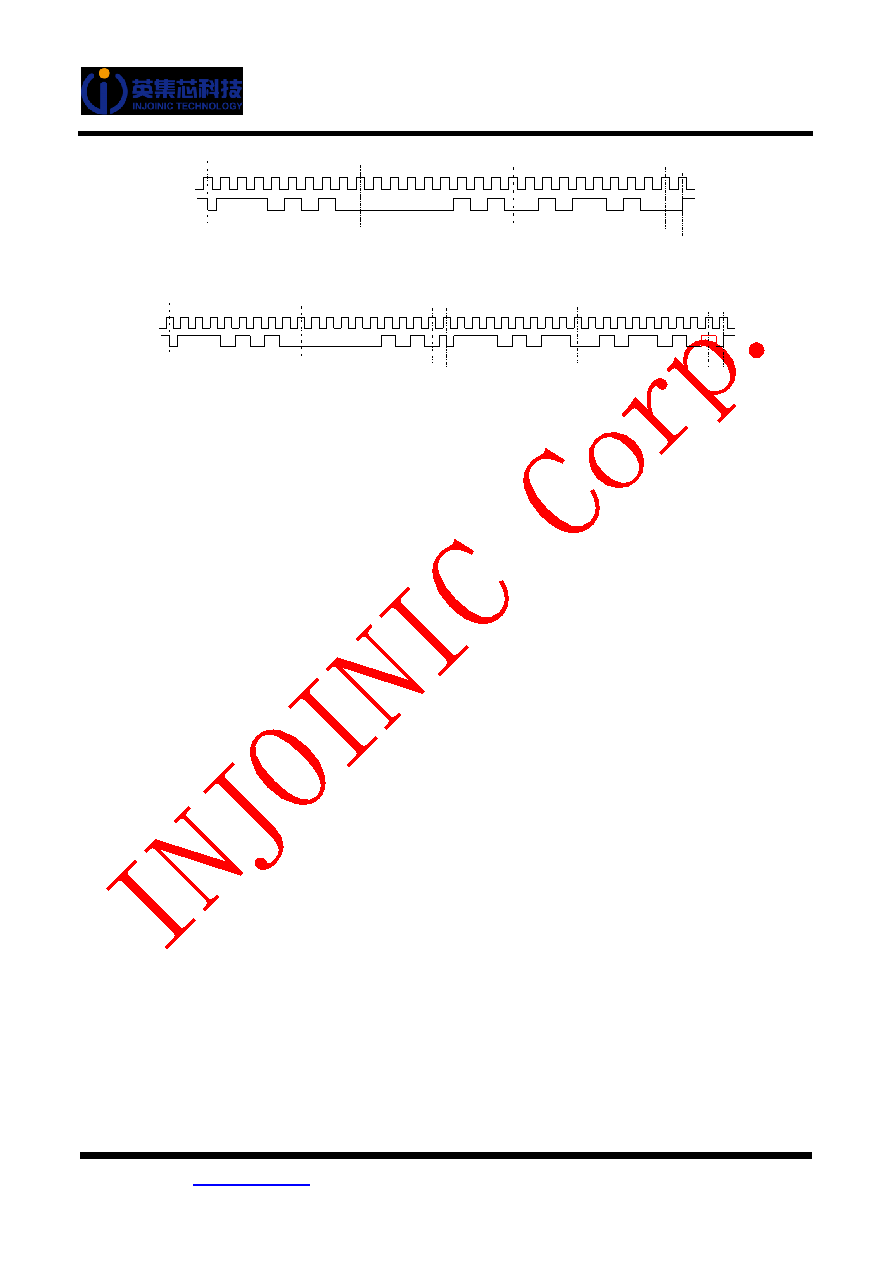

往 0x05 寄存器写入数据 0x5A
SCLK
SDA
Start
sACK
Slave address 0xEA
sACK
Register address 0x05
sACK
Data 0x5A
Stop
I2C WRITE
从0x05寄存器读回数据
SCLK
SDA
Start
sACK
Slave address 0xEA
sACK
Register address 0x05
mNACK
Data 0x5A
Stop
Restart
sACK
Slave address 0xEB
I2C Read
在 I2C 模式下，IP5322 关机时 RSET 为低电平，IP5322 开机时 RSET 为高电平，可以用 RSET 来作为 MCU
的唤醒控制。
