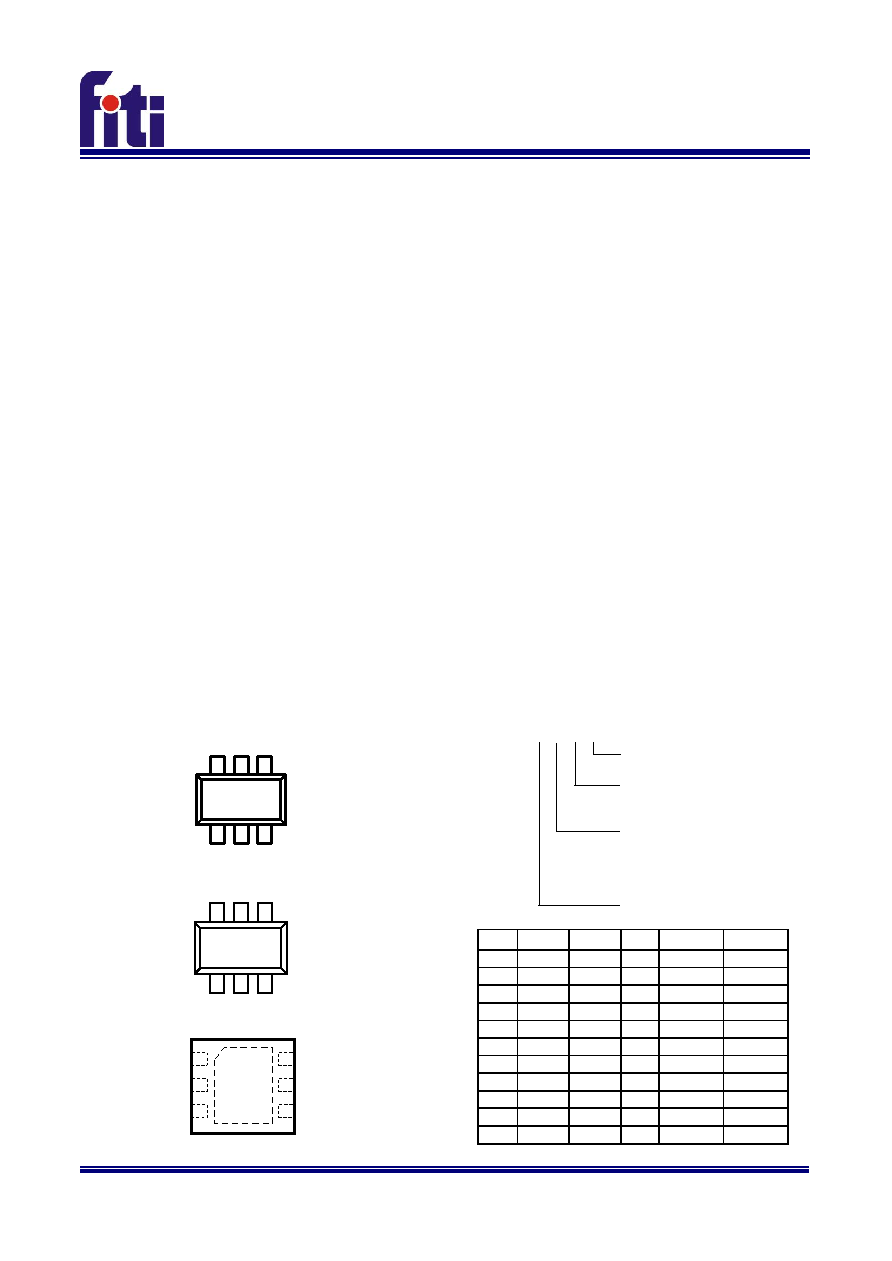

1 / 12 page

1

FP6121-3.5-DEC-2013

FP6121

fitipower integrated technology lnc.

300mA, High PSRR, Dual Output

Low-Dropout Regulator

LINEAR REGULATOR

Description

The FP6121 is a dual output, low dropout, high

PSRR, low quiescent current linear regulators.

The

FP6121 can supply 200mA output current with a

lower dropout voltage about 300mV for each

channel.

The FP6121 is suitable for portable and wireless

application such as mobile phone and portable

hand-sets.

The FP6121 is designed and optimized

to work with low-value, low cost ceramic capacitors.

The FP6121 consumes less than 0.1

μA during

shutdown mode which is independent for each

channel,

allowing

for

flexibility

in

power

management.

Besides its current limit protection

and on chip thermal shutdown features provide

protection against any combination of overload or

ambient temperature that could exceed junction

temperature.

The FP6121 does

n’t need external bypass capacitor

and still could get better noise performance.

The

tiny SOT-23-6, TSOT-23-6 and TDFN-6 packages

are attractive for hand-held applications.

Features



Low Dropout Voltage: 300mV at IOUT=200mA



Guaranteed 300mA Output Current Per Channel



Very Low Quiescent Current: 25

μA



High Power Supply Rejection Ratio: 70dB at

10kHz



Highly Accurate:

2%



Needs Only 1µF Ceramic Capacitor for Stability



Thermal Shutdown and Current Limiting

Protection



Tiny SOT-23-6, TSOT-23-6 and TDFN-6

Packages



RoHS Compliant

Applications



Mobile Phone



Portable or Wireless Instrument



Camera



PDA and Notebook Computer

Pin Assignment

S6 Package (SOT-23-6)

2

1

3

6

4

5

(Marking)

EN1 VIN EN2

VOUT2

GND

VOUT1

S9 Package (TSOT-23-6)

2

1

3

6

4

5

(Marking)

EN1 VIN EN2

VOUT2

GND

VOUT1

WD Package (TDFN-6) (1.6mm×1.6mm)

1

4

5

6

3

2

EN2

VIN

EN1

GND

VOUT1

VOUT2

GND

Figure 1. Pin Assignment of FP6121

Ordering Information

VOUT1

VOUT2

VOUT1

VOUT2

A

3.3V

2.8V

L

1.8V

2.6V

B

3.3V

2.5V

M

1.8V

3.0V

C

2.8V

1.8V

N

2.8V

3.3V

D

2.5V

1.8V

O

1.8V

E

3.0V

1.8V

P

2.85V

F

1.8V

2.8V

Q

1.5V

3.0V

G

2.8V

R

1.5V

3.3V

H

1.5V

2.8V

S

1.2V

3.3V

I

1.8V

3.3V

T

3.0V

2.85V

J

1.3V

2.8V

V

3.3V

K

1.2V

2.8V

W

1.2V

1.8V

FP6121-

□□□□

P: Green

G: Green

TR: Tape/Reel

Package Type

S6: SOT-23-6

S9: TSOT-23-6

WD: TDFN-6 (1.6mm×1.6mm)

Output Voltage
