ADAR2004ACCZ-R7 데이터시트(PDF) 13 Page - Analog Devices

부품명 ADAR2004ACCZ-R7
상세설명  10 GHz to 40 GHz, 4-Channel Rx Mixer with 4횞 LO Multiplier/Filter
PDF  37 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

ADAR2004ACCZ-R7 데이터시트(HTML) 13 Page - Analog Devices

Back Button ADAR2004ACCZ-R7 Datasheet HTML 9Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 10Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 11Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 12Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 13Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 14Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 15Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 16Page - Analog Devices ADAR2004ACCZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 37 page
background image
Data Sheet
ADAR2004
Rev. 0 | Page 13 of 37
0
–120
–60
–20
–100
–80
–40
LO FREQUENCY (GHz)
GAIN = 0x0
GAIN = 0x1
GAIN = 0x2
GAIN = 0x3
GAIN = 0x4
GAIN = 0x5
GAIN = 0x6
GAIN = 0x7

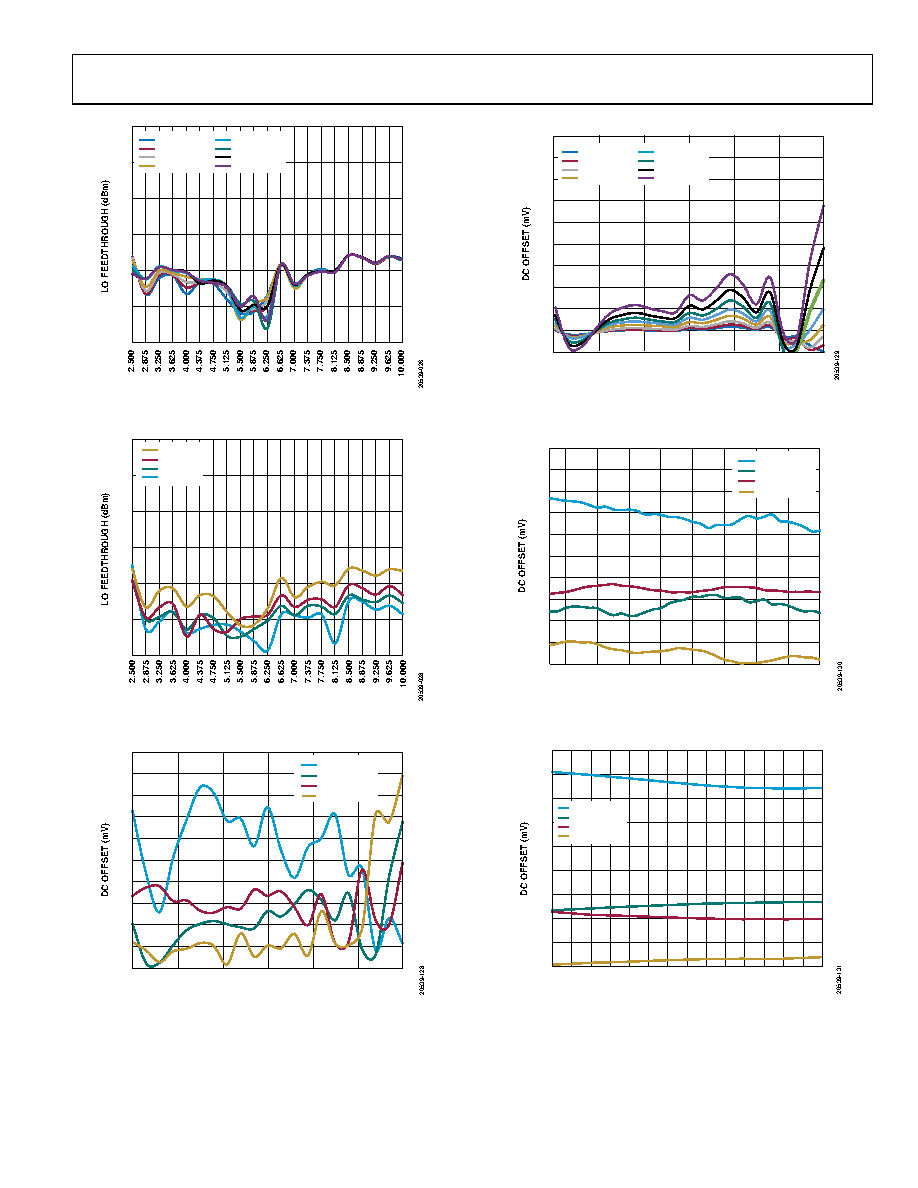

Figure 25. LO Feedthrough vs. LO Frequency and Gain Setting
0
–120
–60
–20
–100
–80
–40
LO FREQUENCY (GHz)
–10dBm
–20dBm
–25dBm
–30dBm
Figure 26. LO Feedthrough vs. LO Frequency and LO Input Power
10
40
35
30
25
20
15
0
10
20
30
40
50
60
70
80
90
100
RF INPUT FREQUENCY (GHz)
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
Figure 27. DC Offset vs. RF Input Frequency and Channel
10
40
35
30
25
20
15
0
10
20
30
40
50
60
70
80
90
100
RF INPUT FREQUENCY (GHz)
GAIN = 0x0
GAIN = 0x1
GAIN = 0x2
GAIN = 0x3
GAIN = 0x4
GAIN = 0x5
GAIN = 0x6
GAIN = 0x7
Figure 28. DC Offset vs. RF Input Frequency and Gain Setting
0
10
20
30
40
50
60
70
80
90
100
50 100
200
300
400
500
600
700
800
900
IF OUTPUT FREQUENCY (MHz)
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
Figure 29. DC Offset vs. IF Output Frequency and Channel
0
10
20
30
40
50
60
70
80
90
0
1
2
3
4
5
6
7
COMMON-MODE SETTING
CHANNEL 1
CHANNEL 2
CHANNEL 3
CHANNEL 4
Figure 30. DC Offset vs. Common-Mode Setting and Channel
(RF Input = 25 GHz, Gain = 0x7)
