11 Layout Example

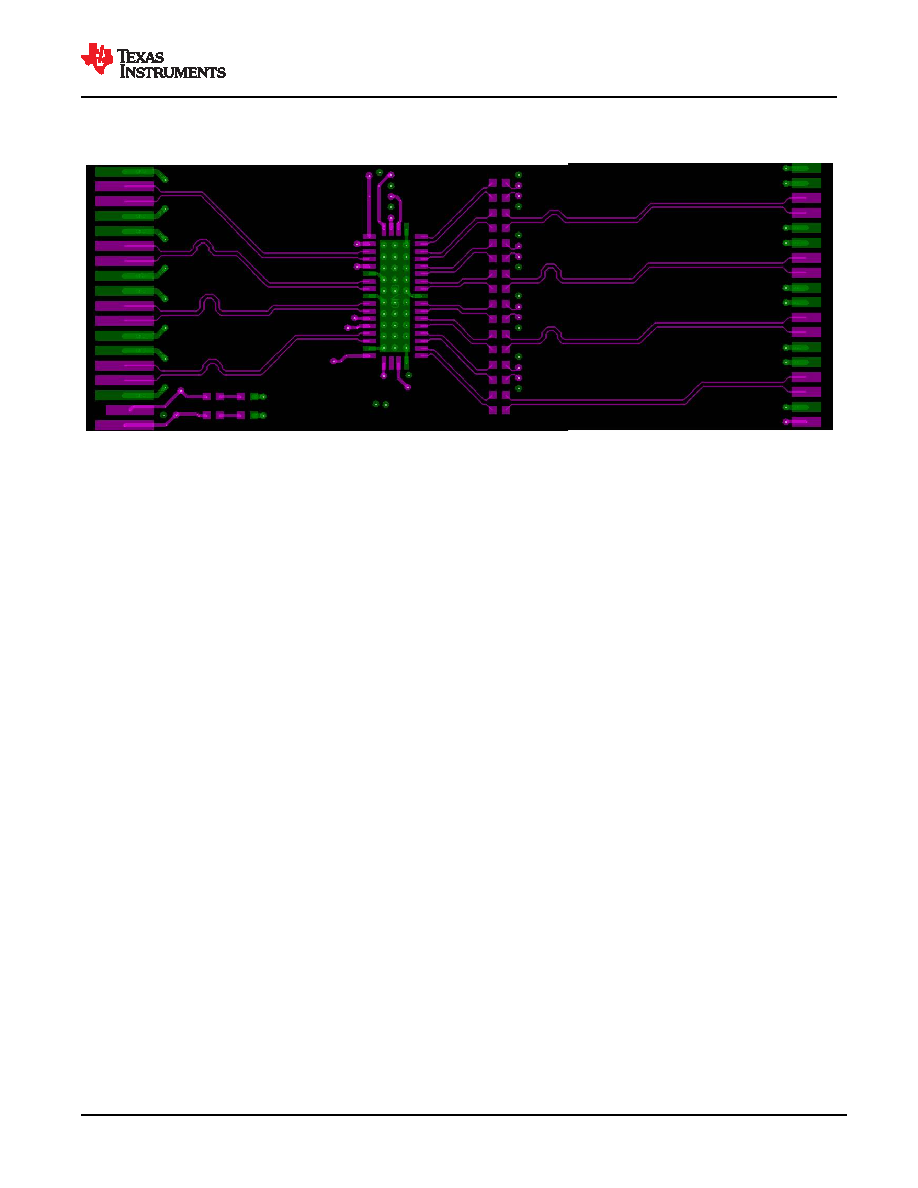

Figure 11-1 shows DS160PR412 layout example.
Figure 11-1. DS160PR412 layout example
Figure 11-2 shows a layout illustration where two DS160PR412 and two DS160PR421 are used to switch 8
lanes between two PCIe slots.
