DS160PR412RUAT 데이터시트(PDF) 12 Page - Texas Instruments

Click here to check the latest version.
부품명 DS160PR412RUAT
상세설명  DS160PR412 PCIe짰 4.0 16 Gbps 4-channel Linear Redriver with Integrated 1:2 Demux
PDF  37 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TI [Texas Instruments]
홈페이지  http://www.ti.com
Logo TI - Texas Instruments

DS160PR412RUAT 데이터시트(HTML) 12 Page - Texas Instruments

Back Button DS160PR412RUAT Datasheet HTML 8Page - Texas Instruments DS160PR412RUAT Datasheet HTML 9Page - Texas Instruments DS160PR412RUAT Datasheet HTML 10Page - Texas Instruments DS160PR412RUAT Datasheet HTML 11Page - Texas Instruments DS160PR412RUAT Datasheet HTML 12Page - Texas Instruments DS160PR412RUAT Datasheet HTML 13Page - Texas Instruments DS160PR412RUAT Datasheet HTML 14Page - Texas Instruments DS160PR412RUAT Datasheet HTML 15Page - Texas Instruments DS160PR412RUAT Datasheet HTML 16Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 37 page
background image
-36
-32
-28
-24
-20
-16
-12
-8
-4
0
0
2
4
6
8
10
12
14
16
18
20
Frequency (GHz)
Input (RX) Differential Return Loss
SDD11
PCIe 4.0 Mask

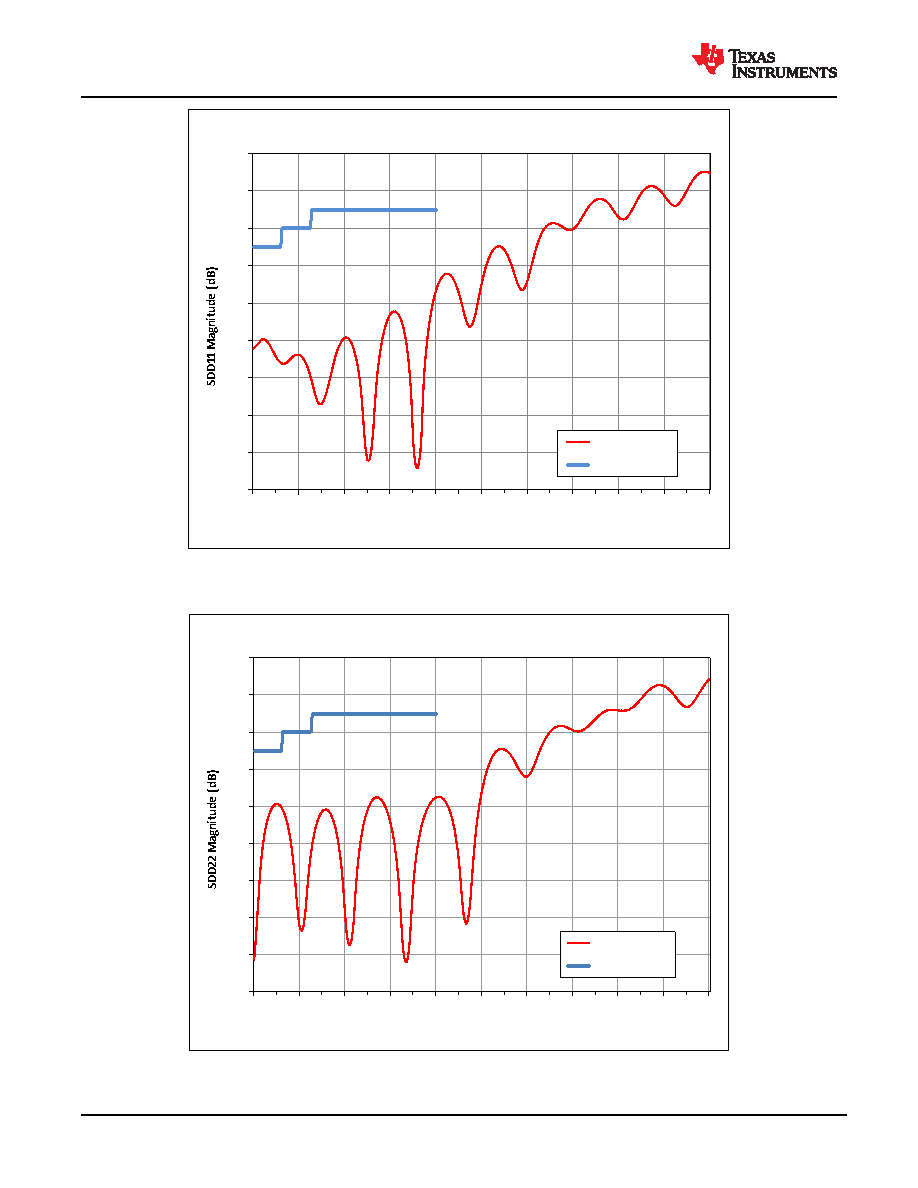

Figure 6-3. Typical RX Differential Return Loss
-36
-32
-28
-24
-20
-16
-12
-8
-4
0
0
2
4
6
8
10
12
14
16
18
20
Frequency (GHz)
Output (TX) Differential Return Loss
SDD22
PCIe 4.0 Mask
Figure 6-4. Typical TX Differential Return Loss
DS160PR412
SNLS685 – DECEMBER 2020
www.ti.com
12
Submit Document Feedback
Copyright © 2020 Texas Instruments Incorporated
Product Folder Links: DS160PR412
