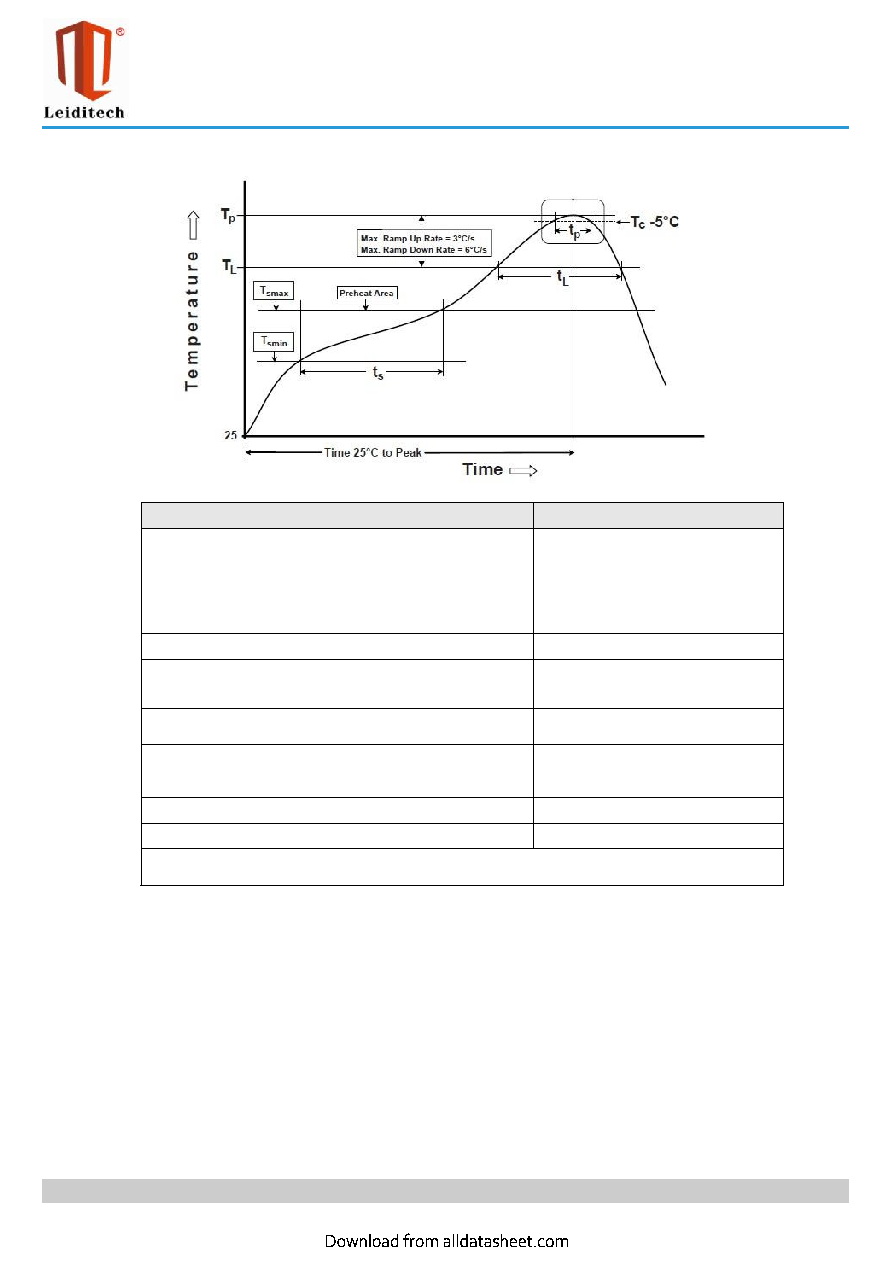

12 Soldering Parameters
Profile Feature
Pb-Free Assembly
Pre Heat
Temperature Min (Tsmin)
Temperature Max (Tsmax)
Time (ts) from (Tsmin to Tsmax)
150 °C
200 °C
60-120 seconds
Ramp-up Rate (TL to Tp)
3 °C/second max.
Liquidus temperature (TL)
Time (tL) maintained above TL
217 °C
60-150 seconds
Peak package body temperature (Tp)
260+0/-5 °C
Time (tp)* within 5 °C of the specified classification
temperature (Tc)
30* seconds
Ramp-down Rate (Tp to TL)
6 °C/second max.
Time 25 °C to peak temperature
8 minutes max.
* Tolerance for peak profile temperature (Tp) is defined as a supplier minimum and a user maximum.
PESD1663U005
Rev :
www.leiditech.com
01.06.2015
4/7
