ADRF5160BCPZ-R7 데이터시트(PDF) 7 Page - Analog Devices

부품명 ADRF5160BCPZ-R7
상세설명  High Power, 88 W Peak, Silicon SPDT, Reflective Switch, 0.7 GHz to 4.0 GHz
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

ADRF5160BCPZ-R7 데이터시트(HTML) 7 Page - Analog Devices

Back Button ADRF5160BCPZ-R7 Datasheet HTML 3Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 4Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 5Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 6Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 7Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 8Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 9Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 10Page - Analog Devices ADRF5160BCPZ-R7 Datasheet HTML 11Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 7 / 12 page
background image
Data Sheet
ADRF5160
Rev. 0 | Page 7 of 12
FREQUENCY (GHz)
4.0
4.5
5.0
2.5
2.0
3.5
3.0
1.5
1.0
80
75
70
65
60
50
55
0.5
–40°C
+25°C
+85°C
+105°C

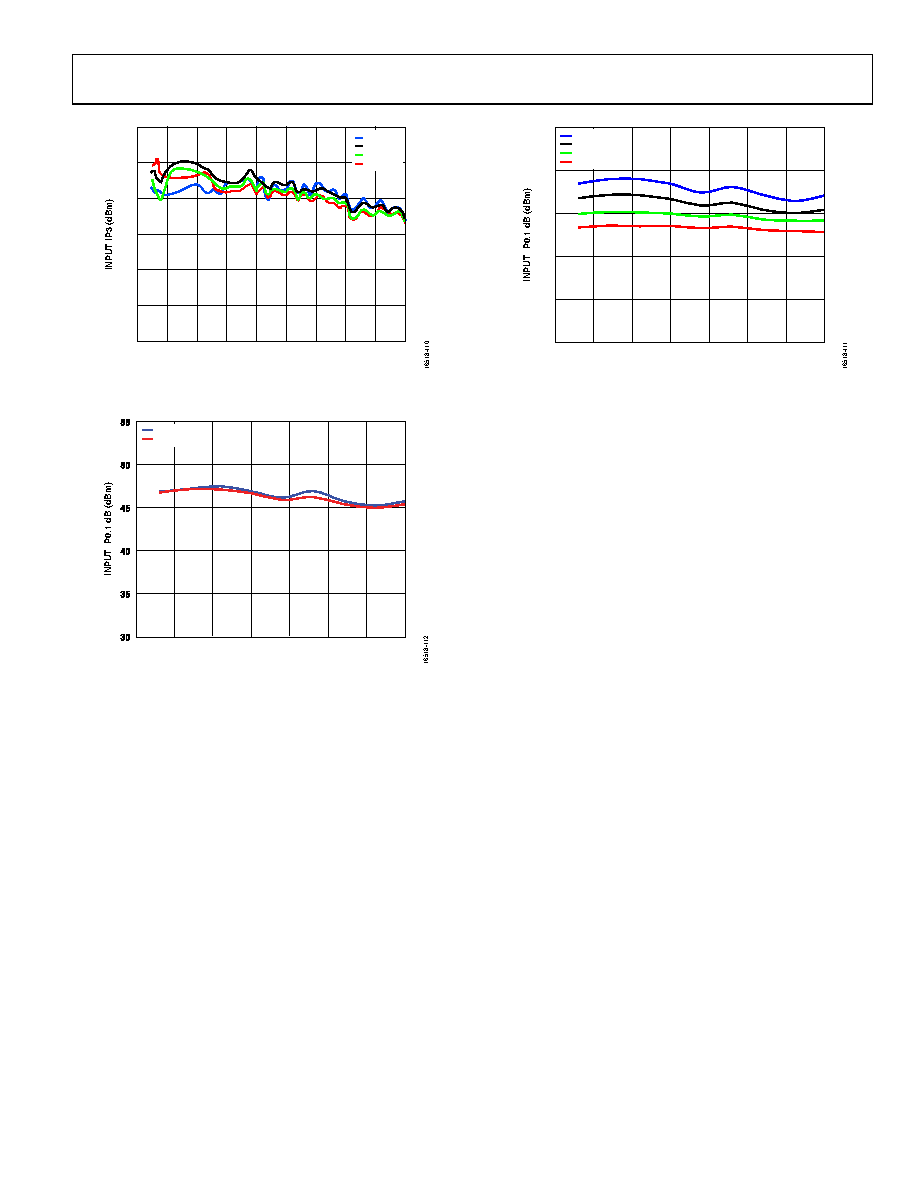

Figure 10. Input Third-Order Intercept (IP3) vs. Frequency for Various
Temperatures, VDD = 5 V
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
FREQUENCY (GHz)
RF1
RF2
Figure 11. Input 0.1dB Power Compression (P0.1dB) vs. Frequency, VDD = 5 V
30
35
40
45
50
55
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
FREQUENCY (GHz)
–40°C
+25°C
+85°C
+105°C
Figure 12. Input 0.1dB Compression (P0.1dB) vs. Frequency for Various
Temperatures, VDD = 5 V
