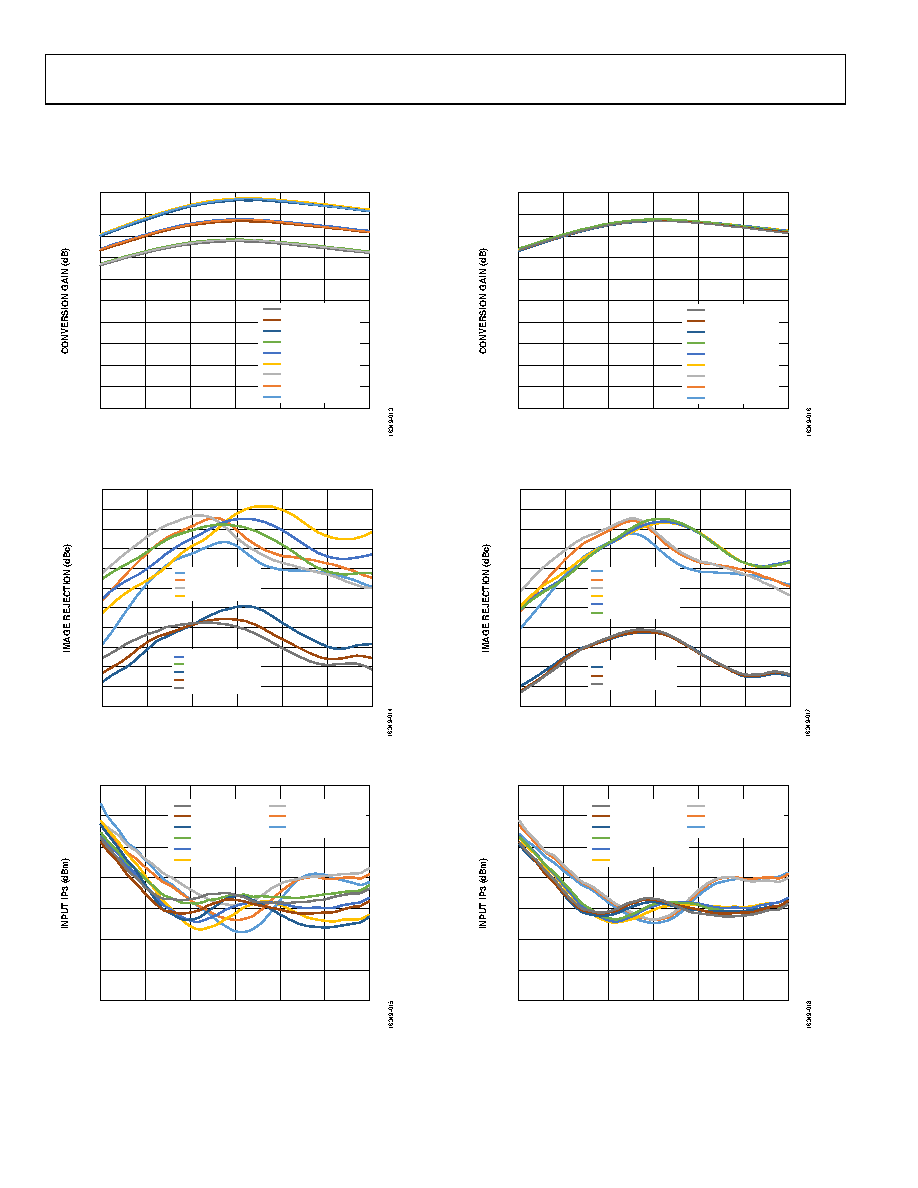

ADMV1012
Data Sheet
Rev. A | Page 8 of 19
LOWER SIDEBAND (HIGH-SIDE LO)
Data taken at VDRF = 3 V, VDLO = 3 V, IDRF = 68 mA, LO = −4 dBm ≤ LO ≤ +4 dBm, −40°C ≤ TA ≤ +85°C, with Mini-Circuits QCN-45+,
power splitter as lower sideband (high-side LO), unless otherwise noted.
20
0
2
4
6
8
10
12
14
16
18
17.0
17.5
18.0
18.5
19.0
19.5
20.0
RF FREQUENCY (GHz)
+85°C, 3.5GHz IF
+25°C, 3.5GHz IF
–40°C, 3.5GHz IF
+85°C, 3.0GHz IF
+25°C, 3.0GHz IF
–40°C, 3.0GHz IF
+85°C, 2.5GHz IF
+25°C, 2.5GHz IF
–40°C, 2.5GHz IF
Figure 13. Conversion Gain vs. RF Frequency at Various Temperatures
and Various IF Frequencies
23.5
24.0
24.5
25.0
25.5
26.0
26.5
27.0
27.5
28.0
28.5
29.0
17.0
17.5
18.0
18.5
19.0
19.5
20.0
RF FREQUENCY (GHz)
–40°C, 2.5GHz IF
+25°C, 2.5GHz IF
+85°C, 2.5GHz IF
–40°C, 3.0GHz IF
+25°C, 3.0GHz IF
+85°C, 3.0GHz IF
–40°C, 3.5GHz IF
+25°C, 3.5GHz IF
+85°C, 3.5GHz IF
Figure 14. Image Rejection vs. RF Frequency at Various Temperatures and
Various IF Frequencies
7
0
1
2
3
4
5
6
17.0
17.5
18.0
18.5
19.0
19.5
20.0
RF FREQUENCY (GHz)
+85°C, 3.5GHz IF
+25°C, 3.5GHz IF
–40°C, 3.5GHz IF
+85°C, 3.0GHz IF
+25°C, 3.0GHz IF
–40°C, 3.0GHz IF
+85°C, 2.5GHz IF
+25°C, 2.5GHz IF
–40°C, 2.5GHz IF
Figure 15. Input IP3 vs. RF Frequency at Various Temperatures and
Various IF Frequencies
20
0
2
4
6
8
10
12
14
16
18
17.0
17.5
18.0
18.5
19.0
19.5
20.0
RF FREQUENCY (GHz)
+4dB, 3.5GHz IF
0dB, 3.5GHz IF
–4dB, 3.5GHz IF
+4dB, 3.0GHz IF
0dB, 3.0GHz IF
–4dB, 3.0GHz IF
+4dB, 2.5GHz IF
0dB, 2.5GHz IF
–4dB, 2.5GHz IF
Figure 16. Conversion Gain vs. RF Frequency at Various LO Powers and
Various IF Frequencies
23.5
24.0
24.5
25.0
25.5
26.0
26.5
27.0
27.5
28.0
28.5
29.0
17.0
17.5
18.0
18.5
19.0
19.5
20.0
RF FREQUENCY (GHz)
–4dB, 2.5GHz IF
0dB, 2.5GHz IF
+4dB, 2.5GHz IF
–4dB, 3.0GHz IF
0dB, 3.0GHz IF
+4dB, 3.0GHz IF
–4dB, 3.5GHz IF
0dB, 3.5GHz IF
+4dB, 3.5GHz IF
Figure 17. Image Rejection vs. RF Frequency at Various LO Powers and
Various IF Frequencies
7
0
1
2
3
4
5
6
17.0
17.5
18.0
18.5
19.0
19.5
20.0
RF FREQUENCY (GHz)
+4dB, 3.5GHz IF
0dB, 3.5GHz IF
–4dB, 3.5GHz IF
+4dB, 3.0GHz IF
0dB, 3.0GHz IF
–4dB, 3.0GHz IF
+4dB, 2.5GHz IF
0dB, 2.5GHz IF
–4dB, 2.5GHz IF
Figure 18. Input IP3 vs. RF Frequency at Various LO Powers and Various IF
Frequencies
