R7ML SPECIFICATIONS

ES-7805 Rev.11 Page 9/40

• LC2

Byte

COMMAND (hexadecimal)

RESPONSE (hexadecimal)

REMARKS

5

Input 0 set data low 8 bit

Input 0 low 8 bit or echo back of set value at

command area

6

Input 0 set data high 8 bit

Input 0 high 8 bit or echo back of set value at

command area

7

Input 1 set data low 8 bit

Input 1 low 8 bit or echo back of set value at

command area

8

Input 1 set data high 8 bit

Input 1 high 8 bit or echo back of set value at

command area

9

Command low 8 bit

Command display low 8 bit or echo back of set

value at command area

10

Command high 8 bit

Command display high 8 bit or echo back of set

value at command area

11, 12

00H

00H

Unused

13

Discrete output data of extension module

low 8 bit

Discrete input data of extension module low 8 bit

or echo back of set value at command area

14

Discrete output data of extension module

high 8 bit

Discrete input data of extension module high 8 bit

or echo back of set value at command area

"0" for EA8 and EC8x

15

00H

Status low 8 bit

See I/O data status

16

00H

Status high 8 bit

See I/O data status

17 – 31

00H

00H

Unused

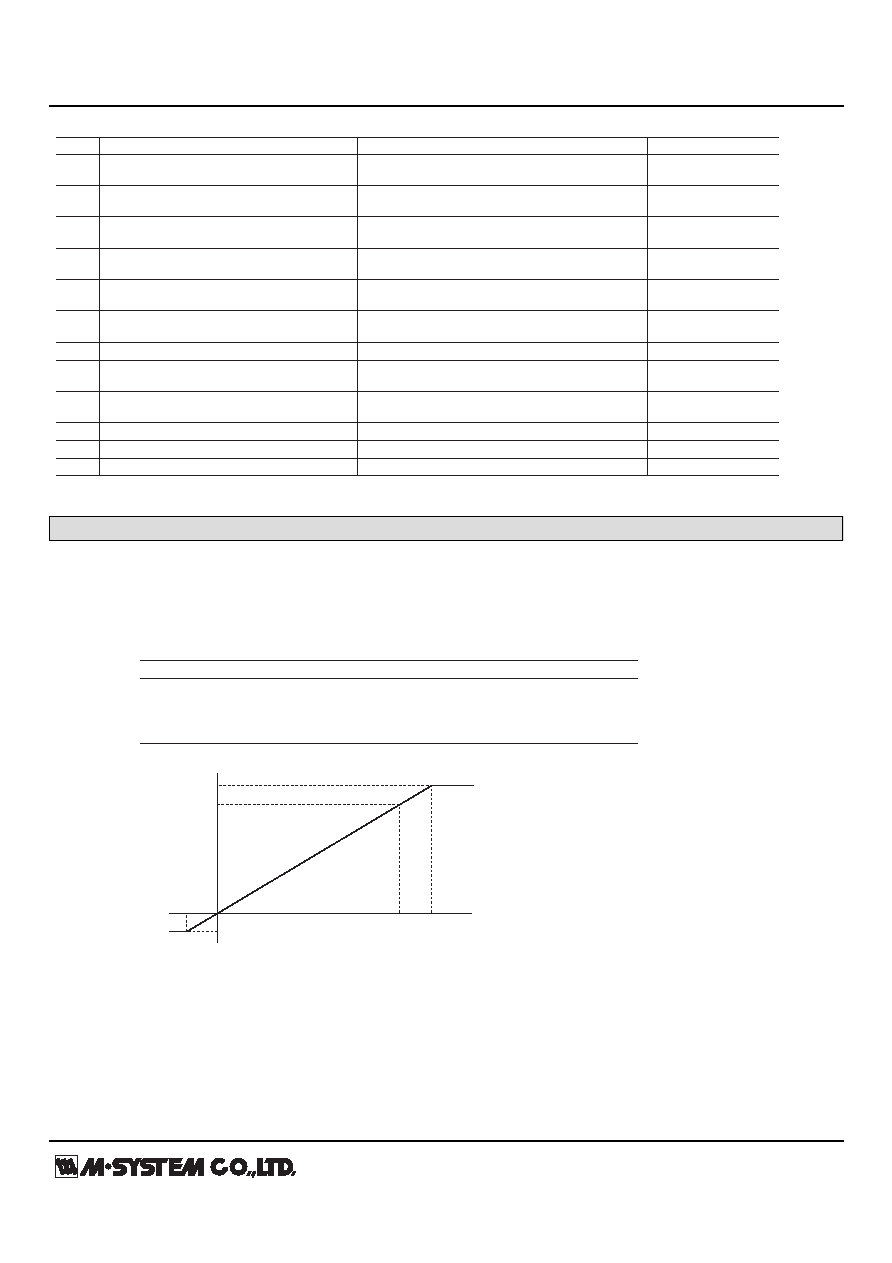

DATA CONVERSION

■ 0 – 100% DATA CONVERSION

Analog input data is converted into digital representations of 0 – 100% proportional to each scaled range. The converted %

values are multiplied by 100 and expressed in 16 bits.

Overrange input is possible from -15 to +115% of the nominal range. When the signal exceeds the limit, the data is fixed at

-15% or +115% respectively.

•Input Range 0 – 5V DC

Input Value

Input %

Converted Data, Decimal

Converted Data, Hex

≤ -0.75V

-15%

-1500

FA24

0V

0%

0

0

5V

100%

10000

2710

≥ 5.75V

115%

11500

2CEC

Analog output is converted in the reverse order of the input data. The output range 0 – 5V DC is expressed as 10000 at

5.0V (100%) and 0 at 0V (0%).

11500 (2CEC)

10000 (2710)

-0.75

-1500 (FA24)

5.0

5.75

0

(V)
