RECEIVE OPERATION, HIGH GAIN MODE

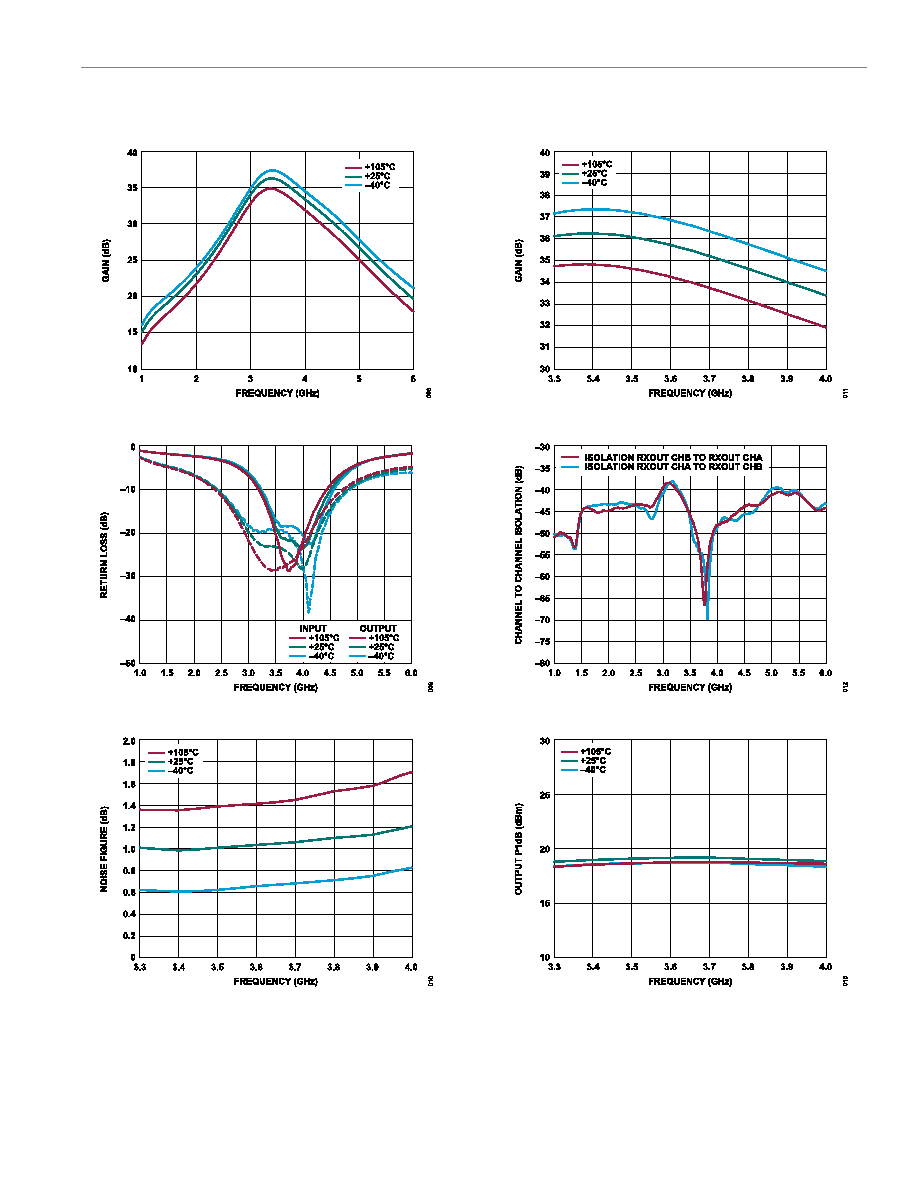

Figure 8. Gain vs. Frequency at Various Temperatures

Figure 9. Return Loss vs. Frequency

Figure 10. Noise Figure vs. Frequency

Figure 11. Gain vs. Frequency at Various Temperatures, 3.3 GHz to 4.0 GHz

Figure 12. Channel to Channel Isolation vs. Frequency

Figure 13. Output P1dB vs. Frequency
