PLL102-10

Low Skew Output Buffer

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 03/22/05 Page 1

FEATURES

• Frequency range 50 ~ 120MHz.

• Internal phase locked loop will allow spread spec-

trum modulation on reference clock to pass to out-

puts.

• Zero input - output delay.

• Less than 700 ps device - device skew.

• Less than 250 ps skew between outputs.

• Less than 100 ps cycle - cycle jitter.

• 2.5V or 3.3V power supply operation.

• Available in 8-Pin SOIC or MSOP package.

DESCRIPTION

The PLL102-10 is a high performance, low skew, low

jitter zero delay buffer designed to distribute high

speed clocks and is available in 8-pin SOIC or MSOP

package. It has two outputs that are synchronized with

the input. The synchronization is established via

CLKOUT feed back to the input of the PLL. Since the

skew between the input and output is less than

±350

ps, the device acts as a zero delay buffer.

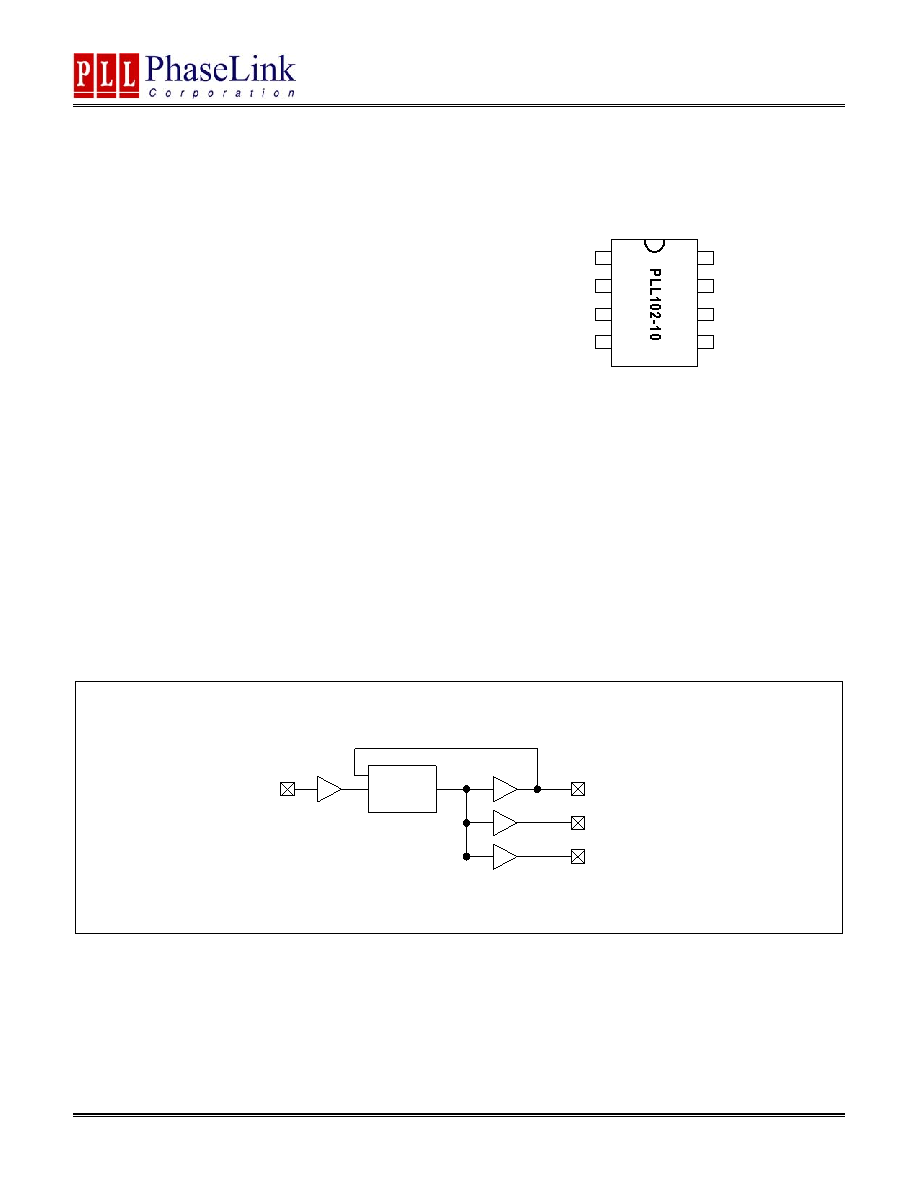

PIN CONFIGURATION

BLOCK DIAGRAM

1

2

3

4

5

6

7

8

REFIN

GND

CLK1

CLK2

CLKOUT

DNC

VDD

DNC

PLL

REFIN

CLKOUT

CLK1

CLK2
