Data Sheet
ADP5003
Rev. A | Page 9 of 31
TYPICAL PERFORMANCE CHARACTERISTICS
0
10
20
30
40
50
60
70
80
90
100
0
0.5
1.0
1.5
2.0
2.5
3.0
LOAD CURRENT (A)
3.3V
2.5V
1.8V
1.3V
1.1V

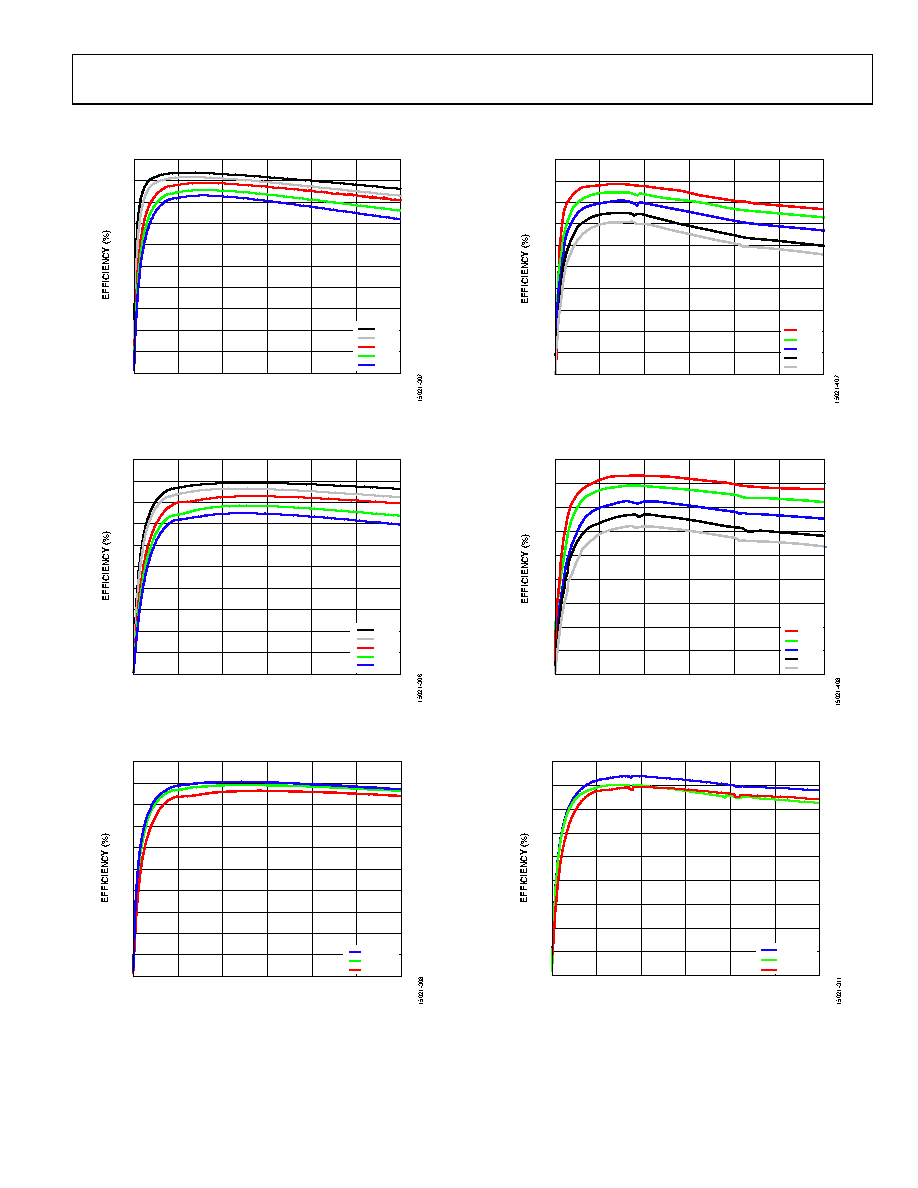

Figure 3. Buck Efficiency vs. Load Current, VPVIN1 = 5 V, fSW = 600 kHz at
Various Buck Output Voltages
0
10
20
30
40
50
60
70
80
90
100
0
0.5
1.0
1.5
2.0
2.5
3.0
LOAD CURRENT (A)
3.3V
2.5V
1.8V
1.3V
1.1V
Figure 4. Buck Efficiency vs. Load Current, VPVIN1 = 12 V, fSW = 600 kHz at
Various Buck Output Voltages
0
10
20
30
40
50
60
70
80
90
100
0
0.5
1.0
1.5
2.0
2.5
3.0
LOAD CURRENT (A)
300kHz
600kHz
1MHz
Figure 5. Buck Efficiency vs. Load Current, VPVIN1 = 12 V, VPVOUT1 = 3.3 V at
Various Buck Switching Frequencies
0
10
20
30
40
50
60
70
80
90
100
0
0.5
1.0
1.5
2.0
2.5
3.0
LOAD CURRENT (A)
3.3V
2.5V
1.8V
1.3V
1.1V
Figure 6. Adaptive Mode Efficiency vs. Load Current, VPVIN1 = 5 V,
fSW = 600 kHz at Various LDO Output Voltages
0
10
20
30
40
50
60
70
80
90
0
0.5
1.0
1.5
2.0
2.5
3.0
LOAD CURRENT (A)
3.3V
2.5V
1.8V
1.3V
1.1V
Figure 7. Adaptive Mode Efficiency vs. Load Current, VPVIN1 = 12 V,
fSW = 600 kHz at Various LDO Output Voltages
0
10
20
30
40
50
60
70
80
90
0
0.5
1.0
1.5
2.0
2.5
3.0
LOAD CURRENT (A)
300kHz
600kHz
1MHz
Figure 8. Adaptive Mode Efficiency vs. Load Current, VPVIN1 = 12 V,
VPVOUT2 = 3.3 V at Various Buck Switching Frequencies
