ADP5075
Data Sheet
Rev. B | Page 10 of 19
CH2 5.00V BW
CH3 20.0mV BW CH4 50.0mA BW
200ns
CH2
3.10V
4
3
2
T
0.00000s
SW
IINDUCTOR
VNEG

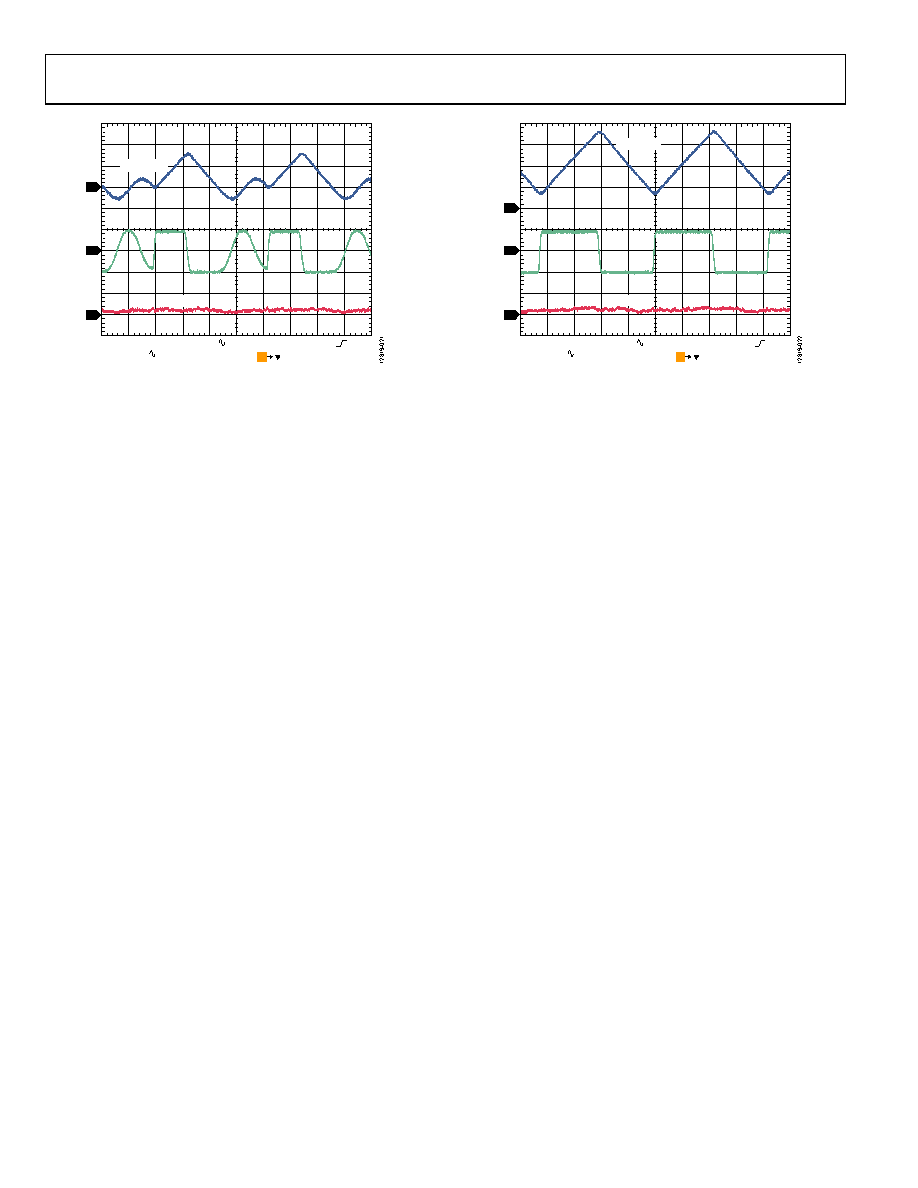

Figure 21. Discontinuous Conduction Mode Operation Showing Inductor
Current (IINDUCTOR), Switch Node Voltage, and Output Ripple, VIN = 5 V,
VNEG = −5 V, ILOAD = 10 mA, fSW = 1.2 MHz, TA = 25°C
CH2 5.00V BW
CH3 20.0mV BW CH4 50.0mA BW
200ns
CH2
2.10V
4
3
2
T
0.00000s
SW
IINDUCTOR
VNEG
Figure 22. Continuous Conduction Mode Operation Showing Inductor
Current (IINDUCTOR), Switch Node Voltage, and Output Ripple, VIN = 5 V,
VNEG = −5 V, ILOAD = 50 mA, fSW = 1.2 MHz, TA = 25°C
