ADP5075
Data Sheet
Rev. B | Page 16 of 19
COMMON APPLICATIONS
Table 8 and Table 9 list a number of common component
selections for typical VIN and VNEG conditions. These have been
bench tested and provide an off the shelf solution. To optimize
components for an application, use the ADIsimPower tool set.

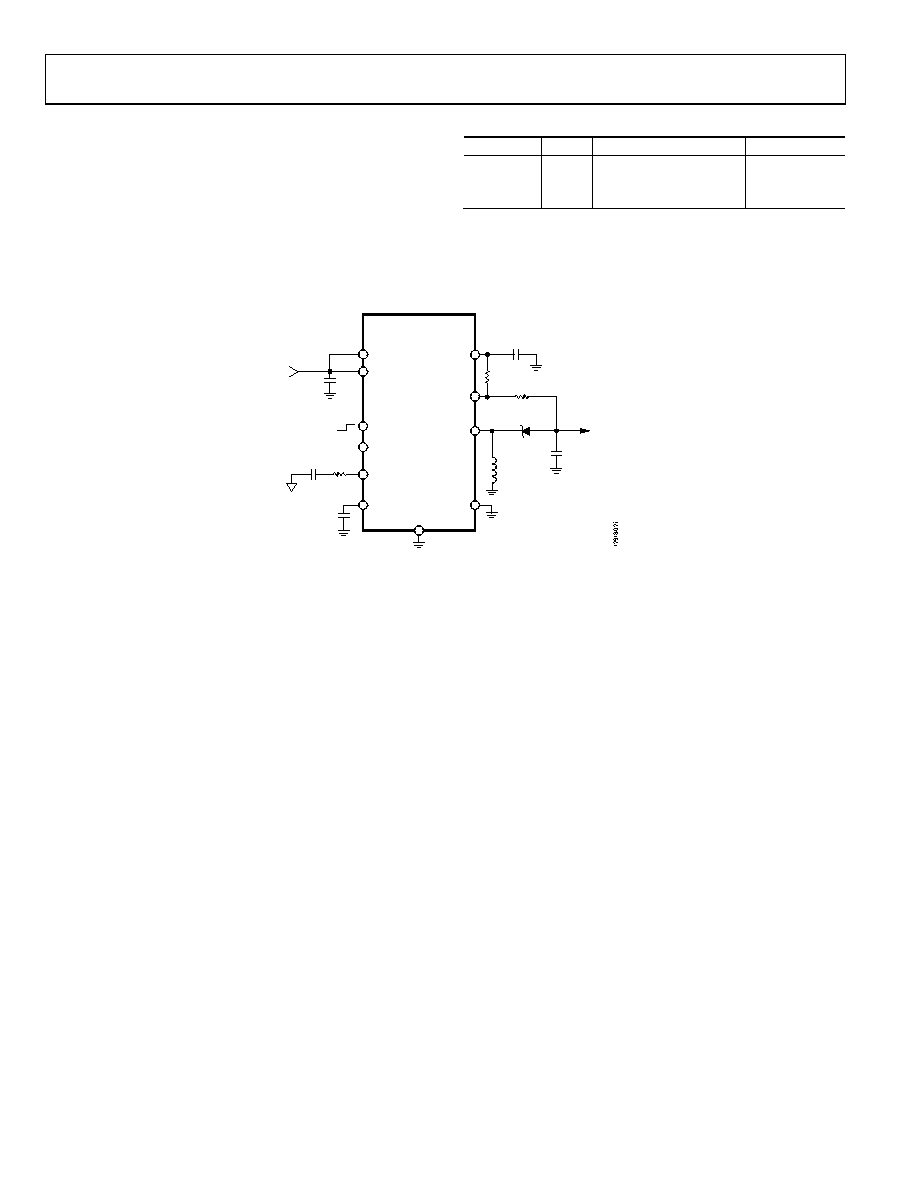

Figure 27 shows the schematic referenced by Table 8 and Table 9
with example component values for a +5 V input to a −15 V
output. Table 8 shows the components common to all VIN and
VNEG conditions.
Table 8. Recommended Common Component Selections
Reference
Value
Part Number
Manufacturer
CIN
10 µF
TMK316B7106KL-TD
Taiyo Yuden
CVREG
1 µF
GRM188R71A105KA61D
Murata
CVREF
1 µF
GRM188R71A105KA61D
Murata
ADP5075
COMP
SS
RC
15kΩ
CC
68nF
EN
GND
AVIN
PVIN
CIN
10µF
ON
OFF
VIN
+5V
L1
15µH
SW
SYNC/FREQ
FB
VREF
D1
DFLS240
RFB
118kΩ
CVREF
1µF
COUT
10µF
CVREG
1µF
RFT
2.32MΩ
VREG
Figure 27. Typical +5 V Input to −15 V Output, 1.2 MHz Application
