ADA4254ACPZ-R7 데이터시트(PDF) 34 Page - Analog Devices

부품명 ADA4254ACPZ-R7
상세설명  Zero Drift, High Voltage, Low Power, Programmable Gain Instrumentation Amplifier
PDF  59 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  AD [Analog Devices]
홈페이지  http://www.analog.com
Logo AD - Analog Devices

ADA4254ACPZ-R7 데이터시트(HTML) 34 Page - Analog Devices

Back Button ADA4254ACPZ-R7 Datasheet HTML 30Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 31Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 32Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 33Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 34Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 35Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 36Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 37Page - Analog Devices ADA4254ACPZ-R7 Datasheet HTML 38Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 34 / 59 page
background image
ADA4254
Data Sheet
Rev. B | Page 34 of 59
CS
SDI
8-BIT COMMAND
CMD
DATA
CRC
8-BIT OUTPUT
8-BIT CRC
SDO
SCLK

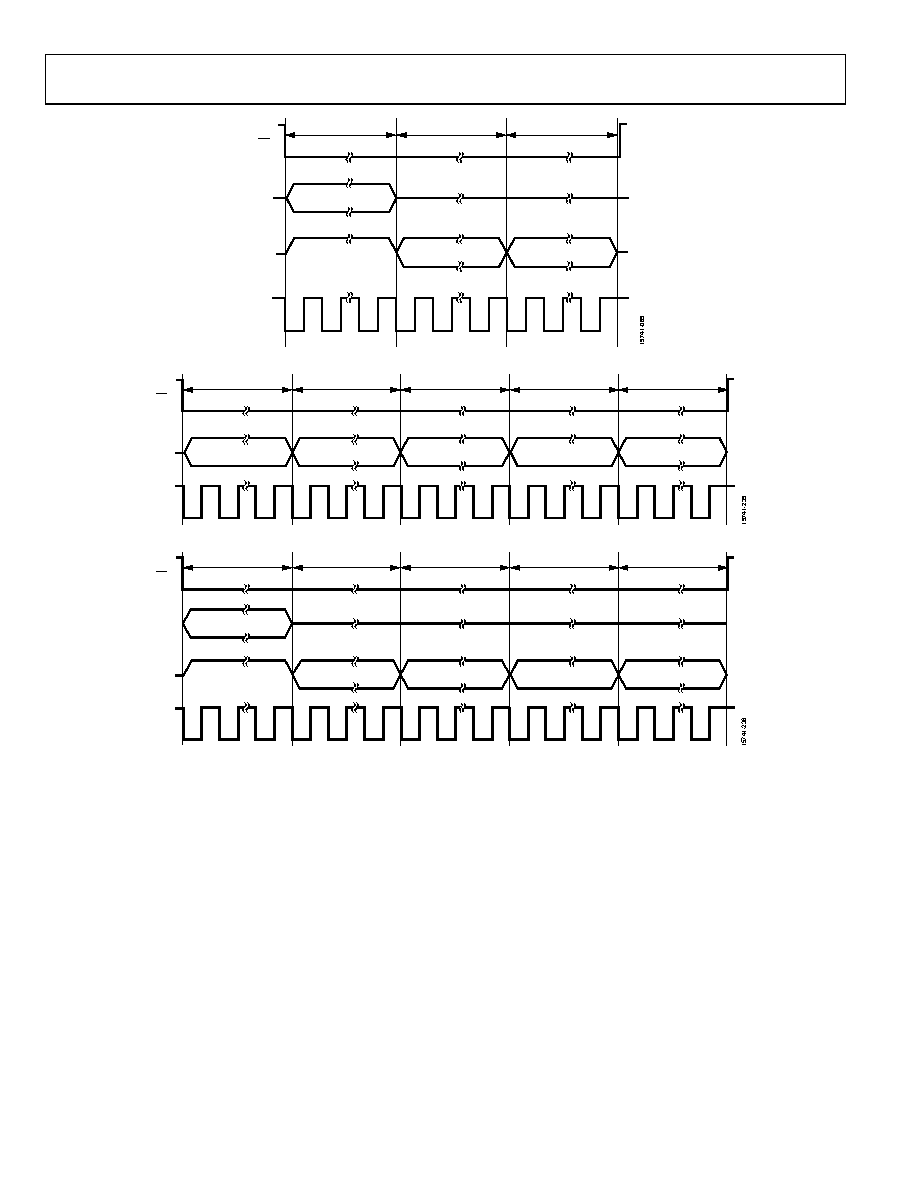

Figure 95. Reading from a Register with CRC
CS
SDI
SCLK
8-BIT COMMAND
DATA
CRC
DATA
CRC
8-BIT INPUT
8-BIT CRC
CS
8-BIT INPUT
8-BIT CRC
Figure 96. Continuous Write Mode with CRC
CS
SDO
SDI
SCLK
8-BIT COMMAND
DATA
CRC
DATA
CRC
8-BIT OUTPUT
8-BIT CRC
CMD
8-BIT OUTPUT
8-BIT CRC
Figure 97. Continuous Read Mode with CRC
