STA540SA

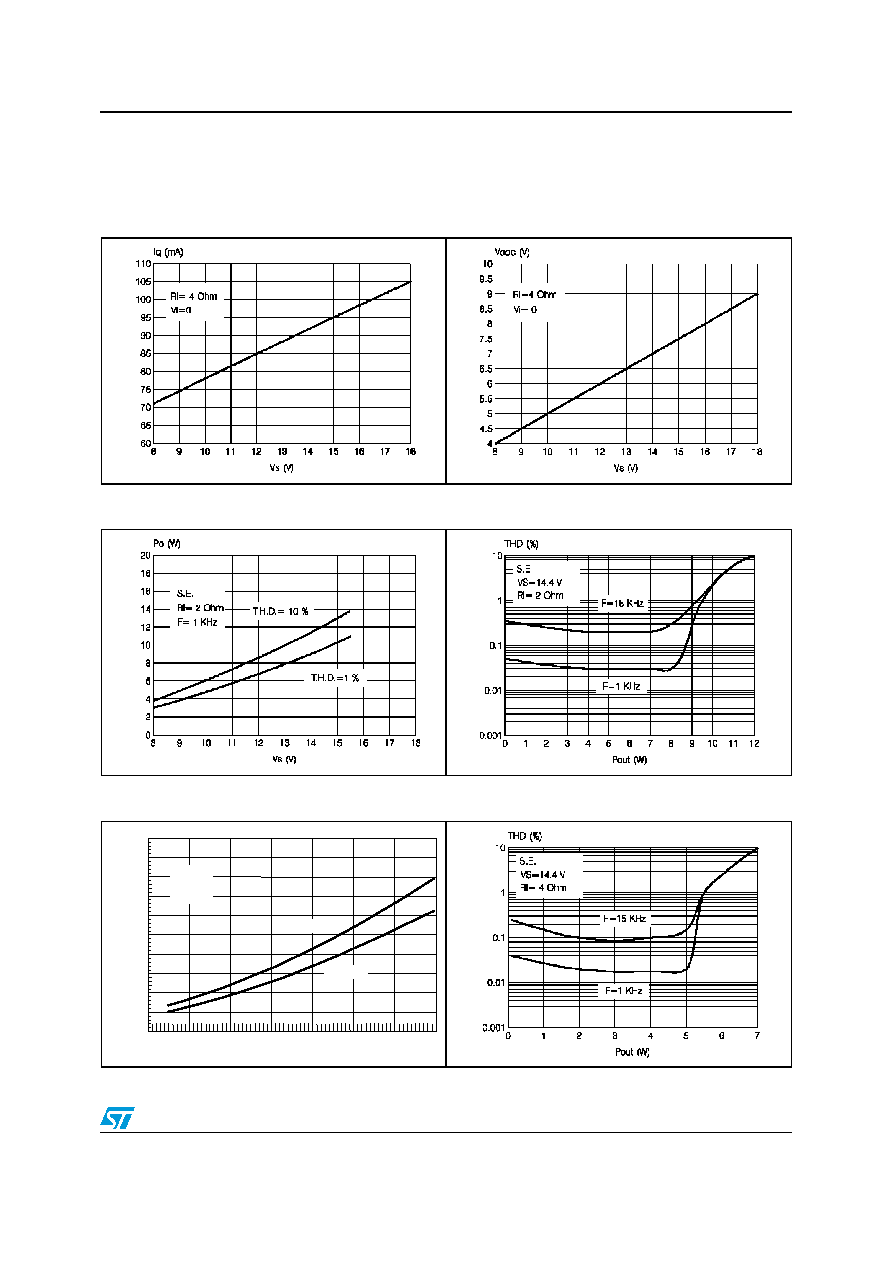

Electrical characteristics curves
Doc ID 16066 Rev 2
13/30
6
Electrical characteristics curves
Figure 12.
Quiescent drain current vs supply
voltage (single-ended and bridge)
Figure 13.
Quiescent output voltage vs supply
voltage (single-ended and bridge)
Figure 14.
Output power vs supply voltage
Figure 15.
Distortion vs output power
Figure 16.
Output power vs supply voltage
Figure 17.
Distortion vs output power
0
20
2
4
6
8
10
12
14
16
18
Po(W)
+8
+22
+10+12
+14+16
+18+20
Vs(V)
S.E.
Rl=4ohm
f=1KHz
T.H.D=1%
T.H.D=10%
0
20
2
4
6
8
10
12
14
16
18
Po(W)
+8
+22
+10+12
+14+16
+18+20
Vs(V)
S.E.
Rl=4ohm
f=1KHz
T.H.D=1%
T.H.D=10%
Obsolete
Product(s)
- Obsolete
Product(s)
