Copyright © Bridgetek Pte Ltd
56
FT900
/1/2/3 Revision C Embedded Microcontroller Datasheet
Version 1.0
Document No. BRT_000172 Clearance No.: BRT#087
6.7
USB Connection when Unused (FT900/1/2/3)
If the USB peripheral (Host and Device) is not used in the end application, connect VUSB3V3, HRREF, and
DRREF to ground. See Figure 6-10 and Figure 6-11.

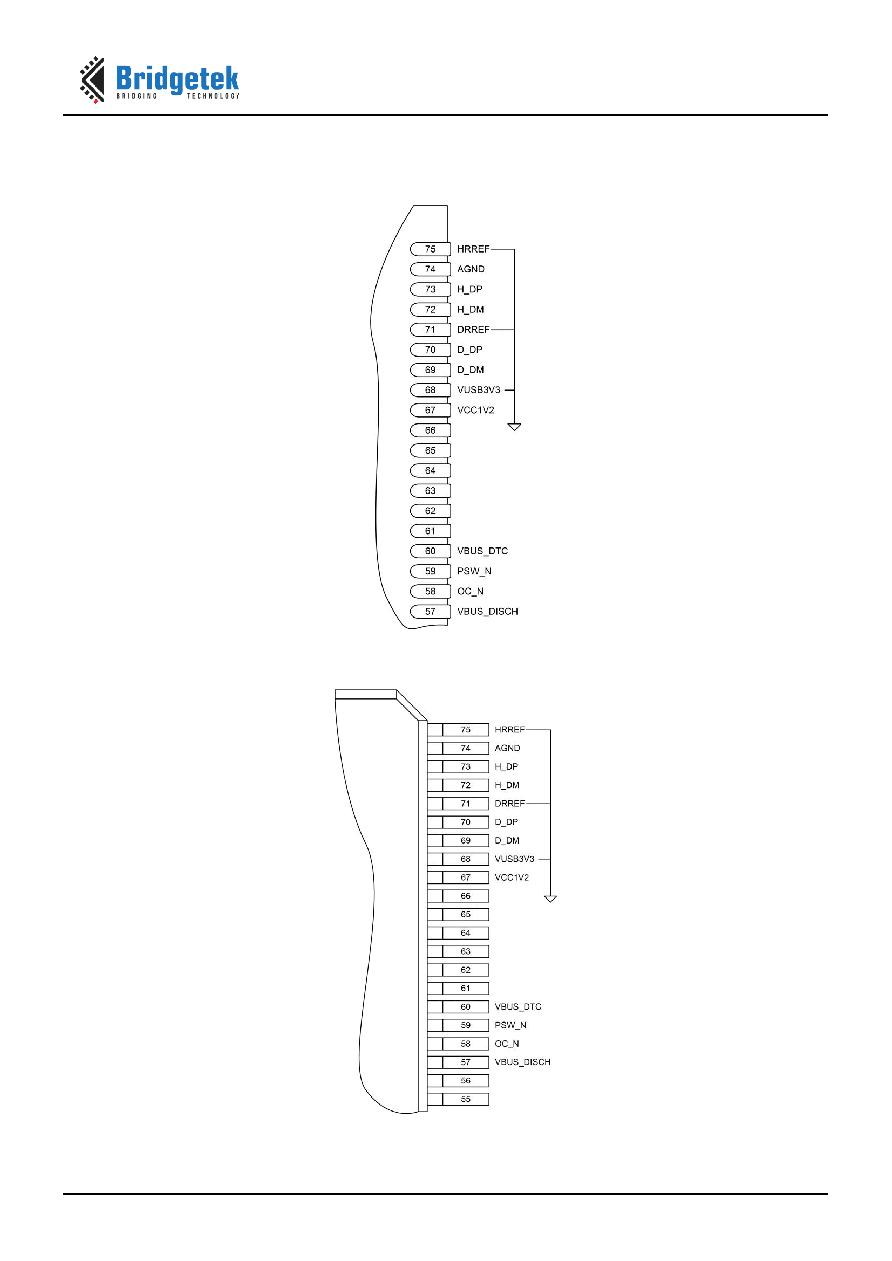

Figure 6-10 - Unused USB Connection (QFN)
Figure 6-11 - Unused USB Connection (LQFP)
