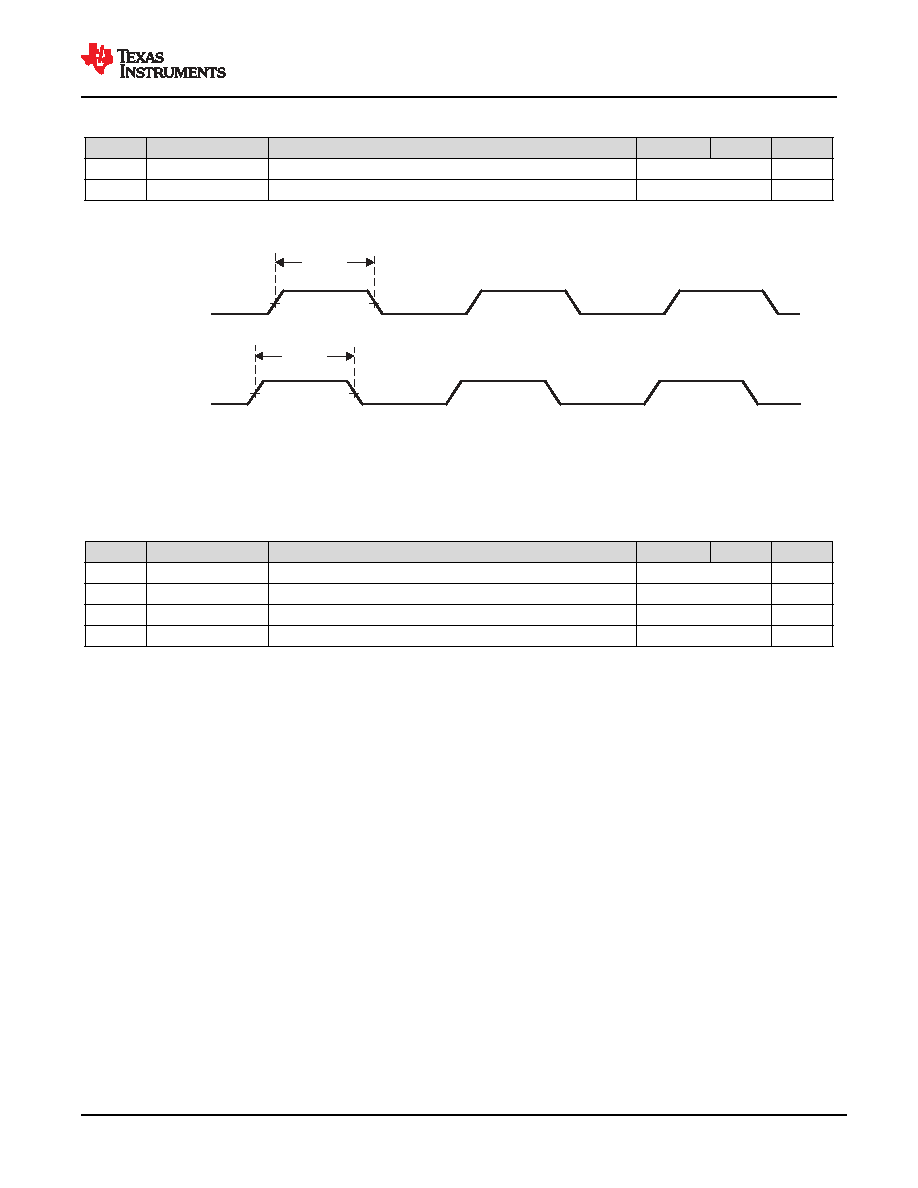

7.10.5.7.1 Timing Requirements for eHRPWM
NO.
PARAMETER
DESCRIPTION
MIN
MAX
UNIT
PWM6
tw(synci)
Pulse duration, EHRPWM_SYNCI
2 + 2P(1)
ns
PWM7
tw(tz)
Pulse duration, EHRPWM_TZn_IN low
2 + 3P(1)
ns
(1)
P = sysclk
EHRPWM_TZn_IN
PWM7
EPERIPHERALS_TIMNG_07
EHRPWM_SYNCI
PWM6
Figure 7-46. ePWM_SYNCI and ePWM_TZn_IN Output Timings
For more information, see Camera Subsystem section in Peripherals chapter in the device TRM.
7.10.5.7.2 Switching Characteristics for eHRPWM
NO.
PARAMETER
DESCRIPTION
MIN
MAX
UNIT
PWM1
tw(pwm)
Pulse duration, EHRPWM_A/B, high or low
P-3(1)
ns
PWM2
tw(syncout)
Pulse duration, EHRPWM_SYNCO
P-3(1)
ns
PWM3
td(tzL-pwmV)
Delay time, EHRPWM_TZn_IN falling edge to EHRPWM_A/B valid
11
ns
PWM4
td(tzL-pwmZ)
Delay time, EHRPWM_TZn_IN falling edge to EHRPWM_A/B Hi-Z
11
ns
www.ti.com
TDA4VE-Q1, TDA4AL-Q1, TDA4VL-Q1
SPRSP62 – DECEMBER 2022
Copyright © 2023 Texas Instruments Incorporated
Submit Document Feedback
161
Product Folder Links: TDA4VE-Q1 TDA4AL-Q1 TDA4VL-Q1
