Data Sheet
ADL6337

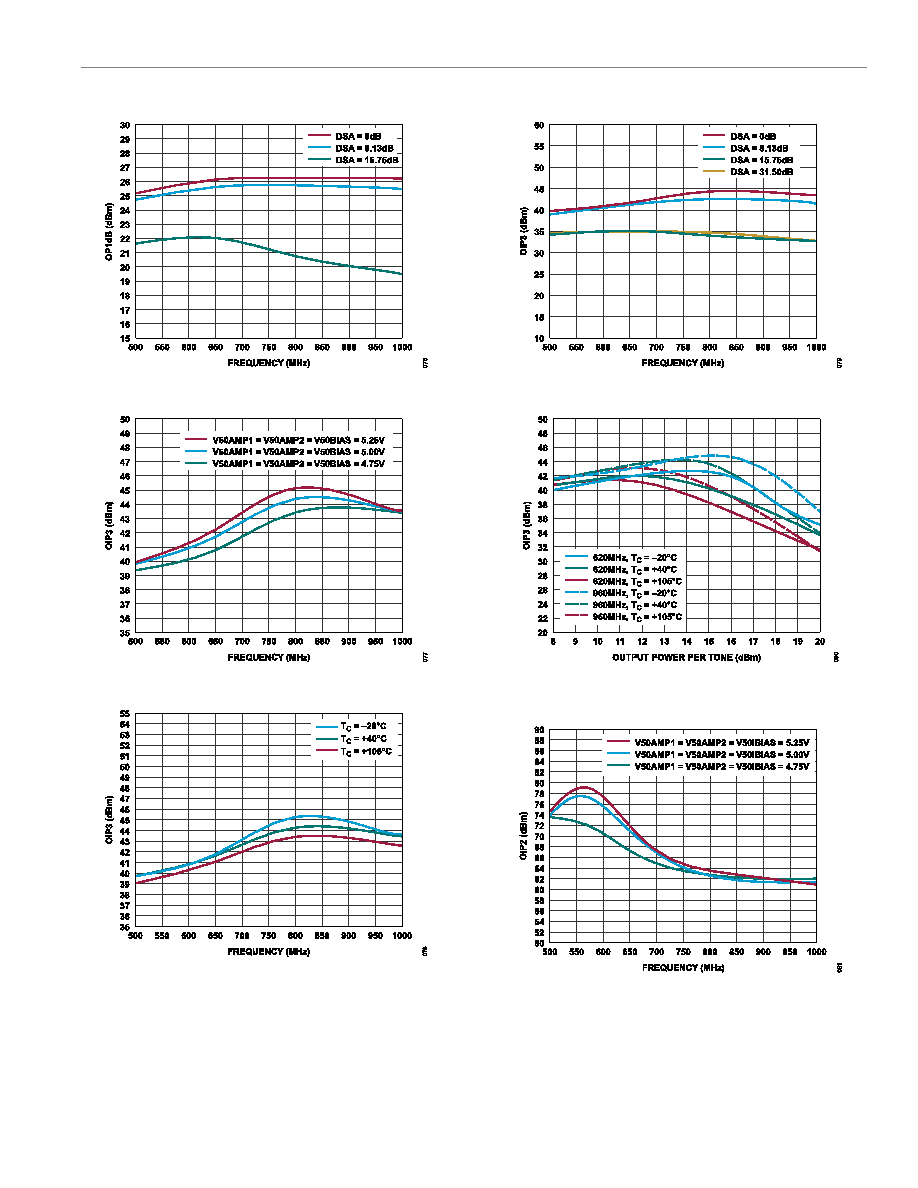

TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 10 of 41
Figure 18. OP1dB vs. Frequency at Various DSA Values
Figure 19. OIP3 vs. Frequency for Various Supplies
Figure 20. OIP3 vs. Frequency for Various Temperatures
Figure 21. OIP3 vs. Frequency at Various DSA Values
Figure 22. OIP3 vs. Output Power Per Tone for Various Temperatures at 620
MHz and 960 MHz
Figure 23. OIP2 vs. Frequency for Various Supplies
