WLCSP8 (CS) package information
This WLCSP is a 8-bump, 1.289 x 1.376 mm, 0.4 mm pitch wafer level chip scale package.

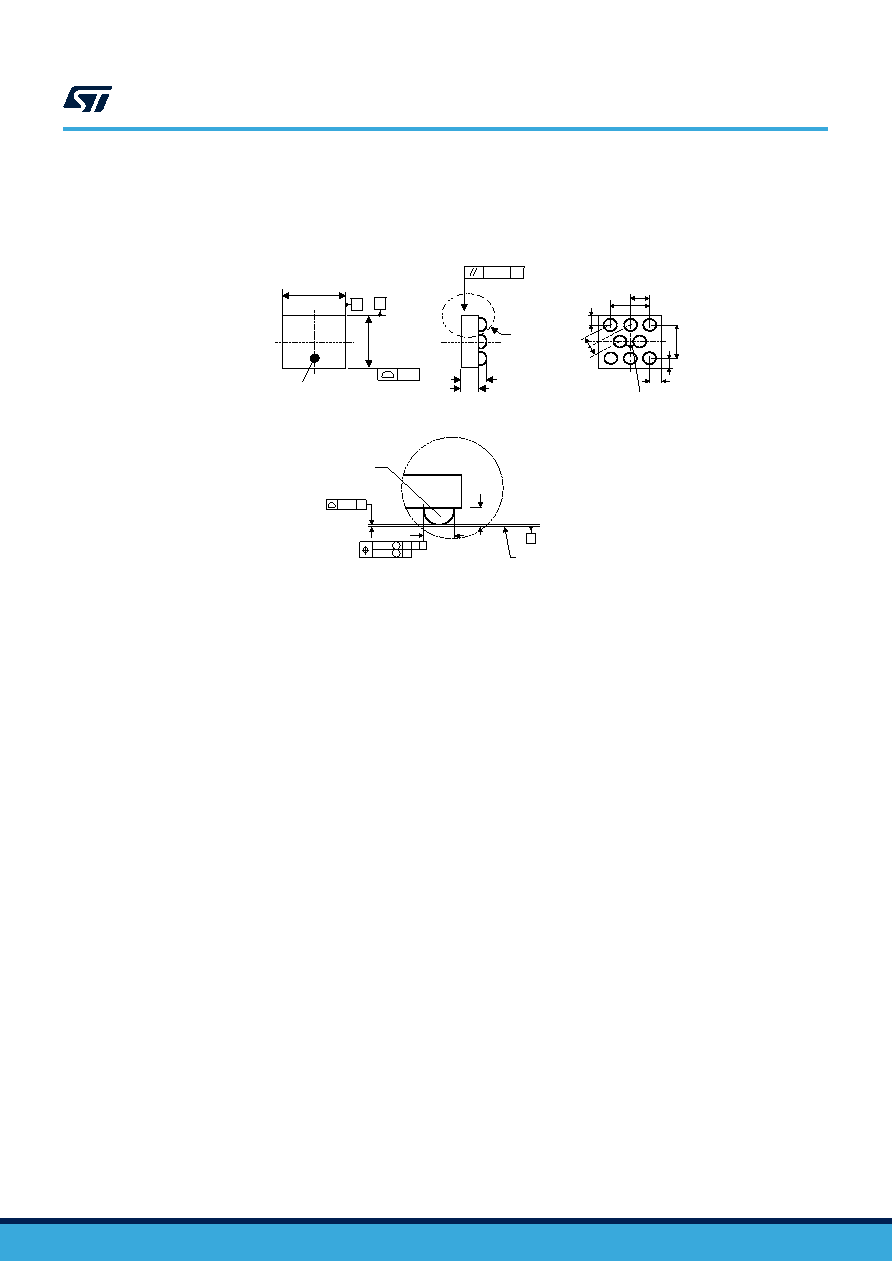

Figure 29. WLCSP8 - Outline
(4X)
aaa
Wafer back side
D
E
Side view
Detail A
A2
A
e1
e2
e
G
F
Bump side
H
e3
bbb Z
X
Y
Reference
Orientation
Detail A
Rotated 90 °
A1
Bump
Seating plane
Z
eee Z
Z
Z
X
ccc M
Y
Ø
Ø
ddd M
b
1.
Drawing is not to scale
2.
Primary datum Z and seating plane are defined by the spherical crowns of the bump.
3.
Bump position designation per JESD 95-1, SPP-010.
M95256-W M95256-R M95256-DF
WLCSP8 (CS) package information
DS4712 - Rev 22
page 40/51
