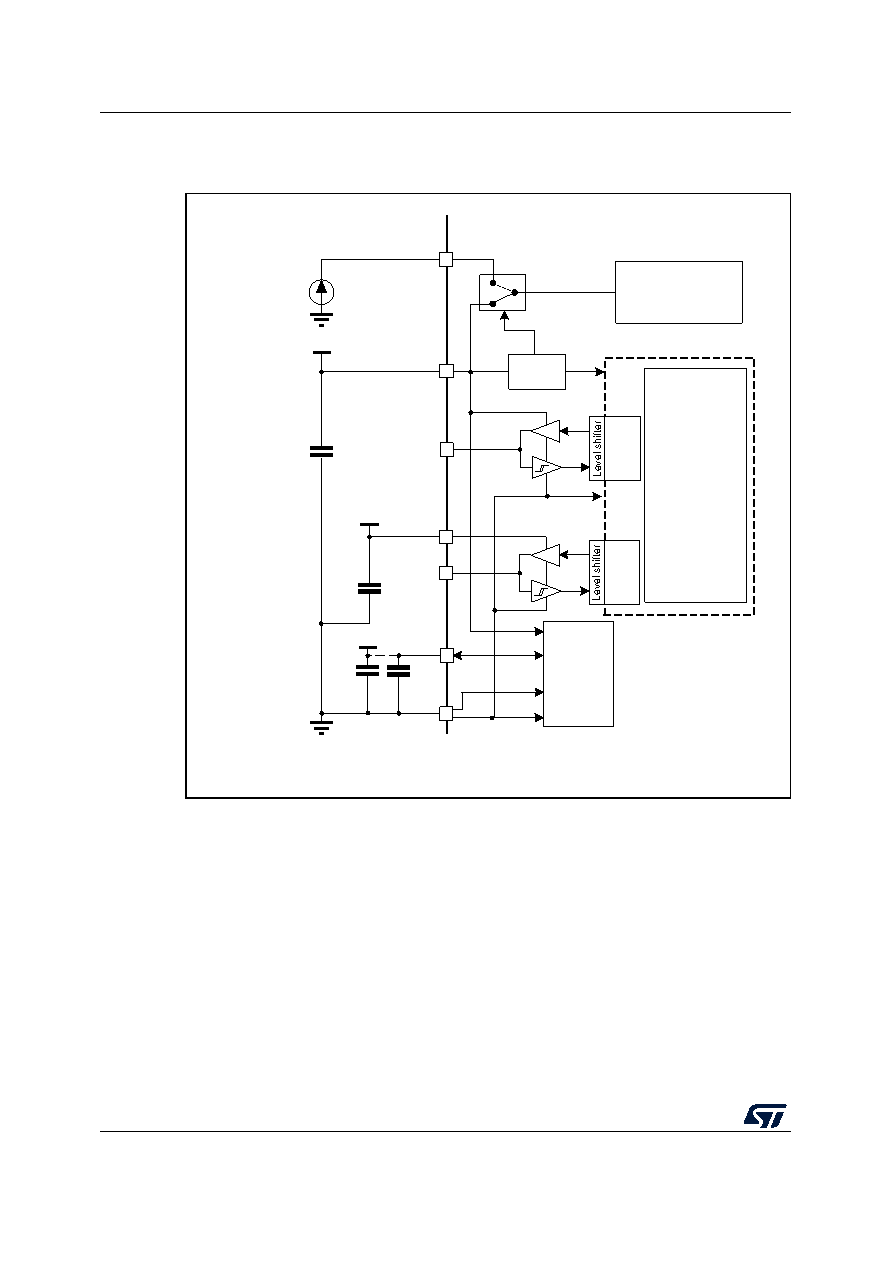

66 / 159 page  Electrical characteristics STM32G0C1xC/xE 66/159 DS13564 Rev 4 5.1.6 Power supply scheme Figure 15. Power supply scheme Caution: Power supply pin pair (VDD/VDDA/VDDIO2 and VSS/VSSA) must be decoupled with filtering ceramic capacitors as shown above. These capacitors must be placed as close as possible to, or below, the appropriate pins on the underside of the PCB to ensure the good functionality of the device. MSv66839V2 VDD Backup circuitry (LSE, RTC and backup registers) Kernel logic (CPU, digital and memories) IO logic IN OUT Regulator GPIOs 1.55 V to 3.6 V 1 x 100 nF + 1 x 4.7 μF VDD/VDDA VBAT VCORE Power switch VDDIO1 ADC DAC COMPs VREFBUF VREF+ VREF- VSS/VSSA VREF 100 nF 1 μF VSS VSSA VDDA VDD VREF+ IO logic IN OUT VDDIO2 VDDIO2 100 nF +4.7 μF VDDIO2 GPIOs |
|
