REV. B
AD6624
–6–

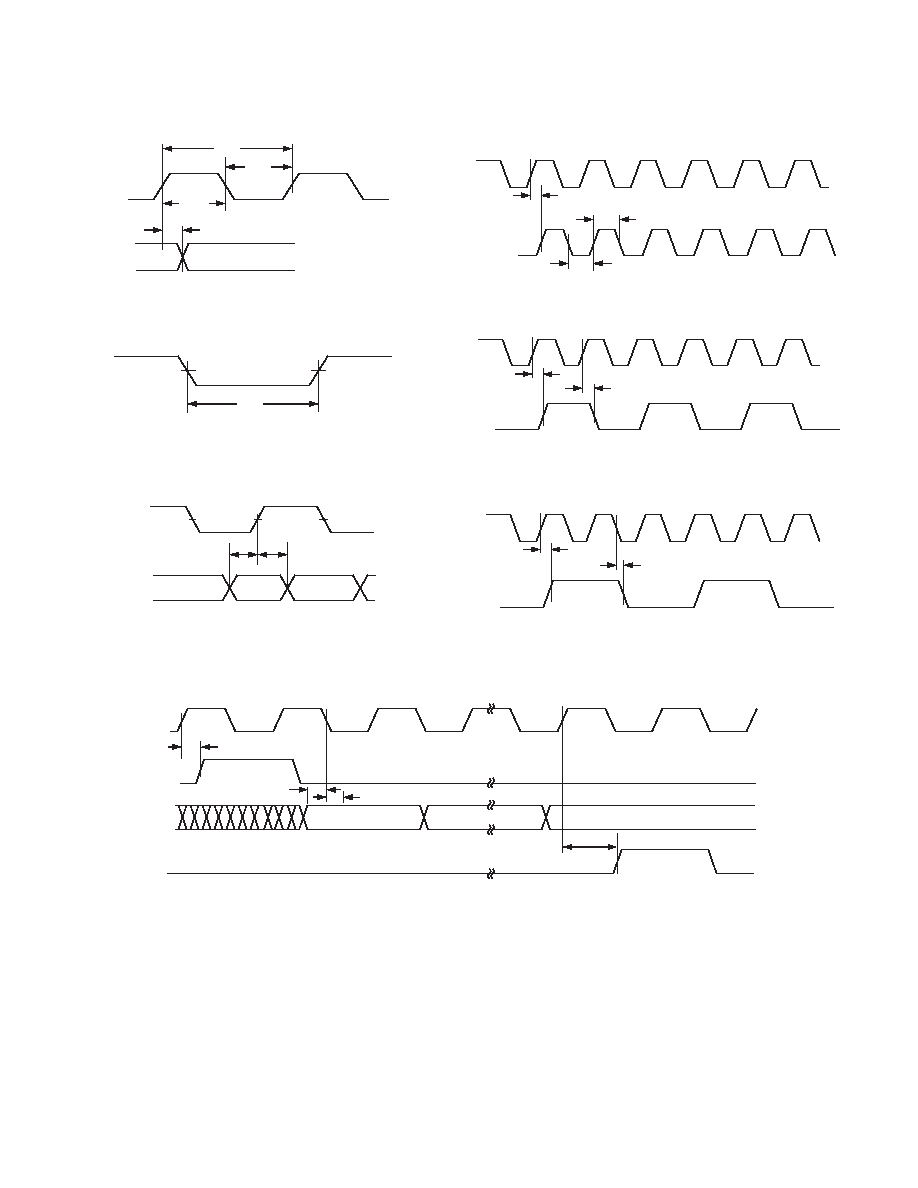

TIMING DIAGRAMS
CLK
LIA-A
LIA-B
LIB-A
LIB-B
tDLI
tCLK
tCLKL
tCLKH
Figure 1. Level Indicator Output Switching Characteristics
RESET
tSSF
Figure 2.
RESET Timing Requirements
CLK
IN[13:0]
EXP[2:0]
DATA
tSI
tHI
Figure 3. Input Data Timing Requirements
CLK
SCLK
tDSCLKH
tSCLKH
tSCLKL
Figure 4. SCLK Switching Characteristics (Divide by 1)
CLK
SCLK
tDSCLKH
tSCLKL
Figure 5. SCLK Switching Characteristic (Divide by 2 or
EVEN Integer)
CLK
SCLK
tDSCLKH
tDSCLKLL
Figure 6. SCLK Switching Characteristic (Divide by 3 or
ODD Integer)
SCLK
SDFS
SDI
SDFE
tSSI
tHSI
DATAn
tDSDFE
tDSDFS
Figure 7. Serial Port Switching Characteristics
