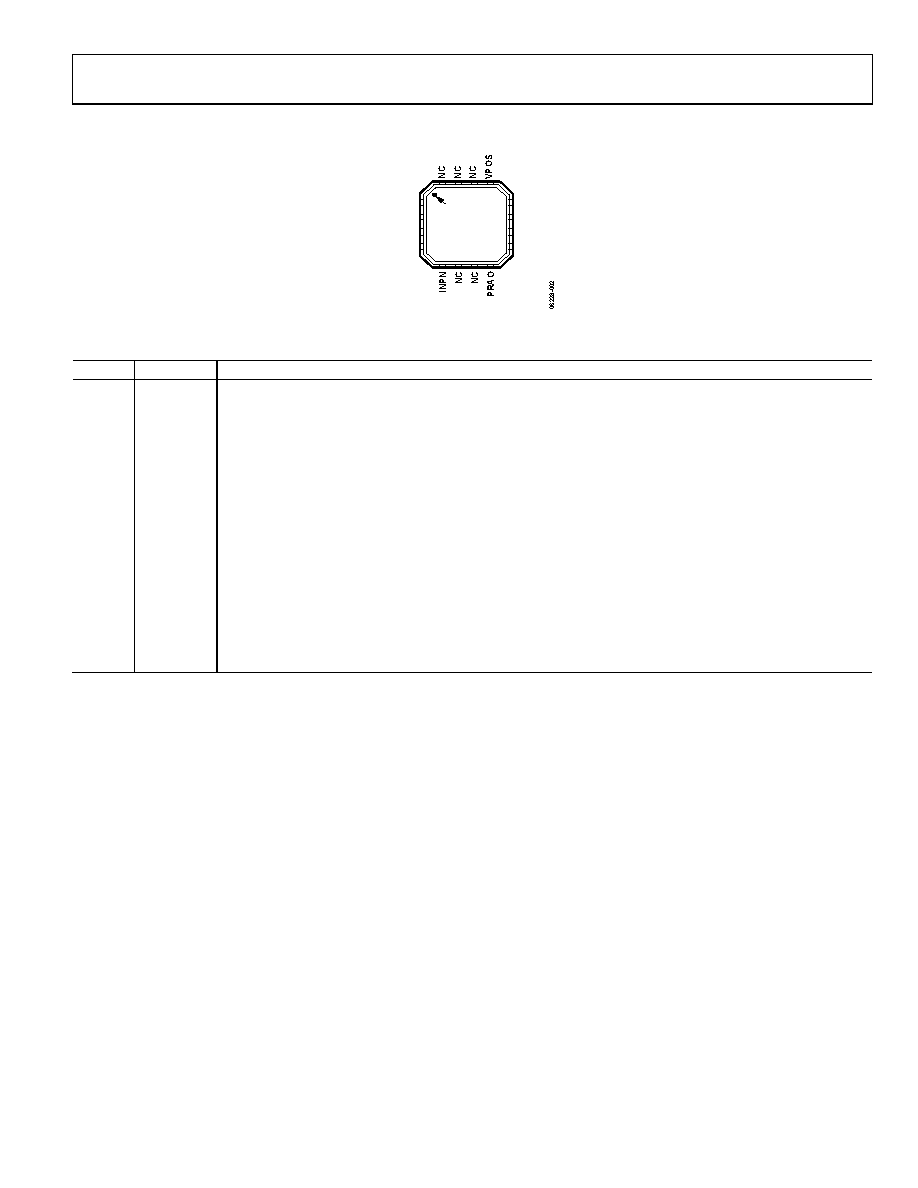

7 / 28 page ![]() AD8336 Rev. 0 | Page 7 of 28 PIN CONFIGURATION AND FUNCTIONAL DESCRIPTIONS 1 4 3 2 14 13 15 16 9 12 11 10 8 7 6 5 VOUT PWRA VCOM INPP VGAI VNEG GNEG GPOS PIN 1 INDICATOR NC = NO CONNECT AD8336 TOP VIEW (Not to Scale) Figure 2. 16-Lead LFCSP Pin Configuration Table 3. Pin Function Descriptions Pin No. Mnemonic Function 1 VOUT Output Voltage. 2 PWRA Power Control. Normal power when grounded; power reduced by half if VPWRA is pulled high. 3 VCOM Common-Mode Voltage. Normally GND when using a dual supply. 4 INPP Positive Input to Preamp. 5 INPN Negative Input to Preamp. 6 NC No Connect. 7 NC No Connect. 8 PRAO Preamp Output. 9 VGAI VGA Input. 10 VNEG Negative Supply. 11 GPOS Positive Gain Control Input. 12 GNEG Negative Gain Control Input. 13 VPOS Positive Supply. 14 NC No Connect. 15 NC No Connect. 16 NC No Connect. |
|
|
