CC1000
SWRS048A
Page 31 of 55
20. Input / Output Matching
A
few
passive
external
components
combined with the internal T/R switch
circuitry ensures match in both RX and TX
mode. The matching network is shown in
Figure 20.
Component values for various frequencies
are given in Table 1. Component values
for other frequencies can be found using
the configuration software.

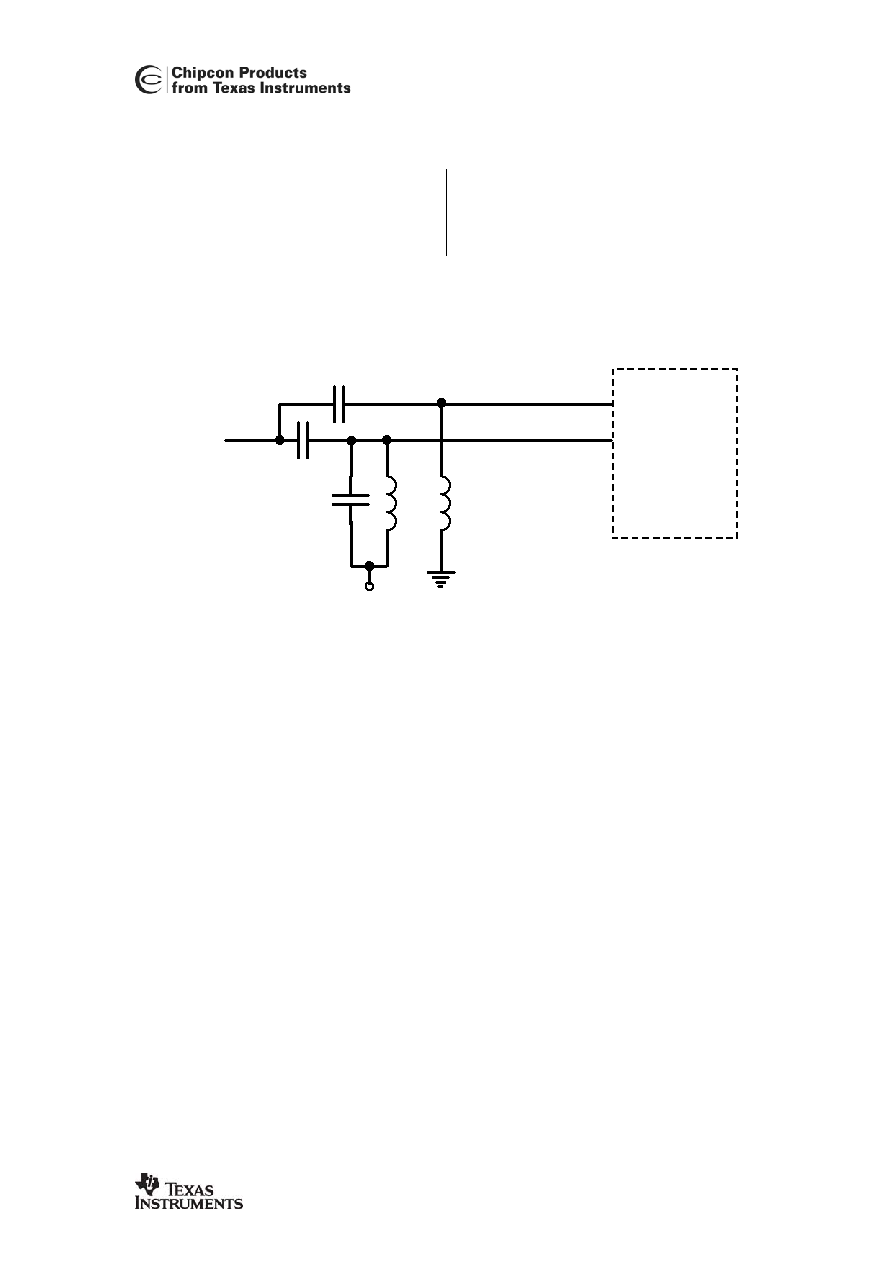

Figure 20. Input/output matching network
RF_IN
RF_OUT
TO ANTENNA
CC1000
L41
C41
C42
AVDD=3V
L32
C31
RF_IN
RF_OUT
TO ANTENNA
CC1000
L41
C41
C42
AVDD=3V
L32
C31
RF_IN
RF_OUT
TO ANTENNA
CC1000
L41
C41
C42
AVDD=3V
L32
C31
RF_IN
RF_OUT
TO ANTENNA
CC1000
L41
C41
C42
AVDD=3V
L32
C31
