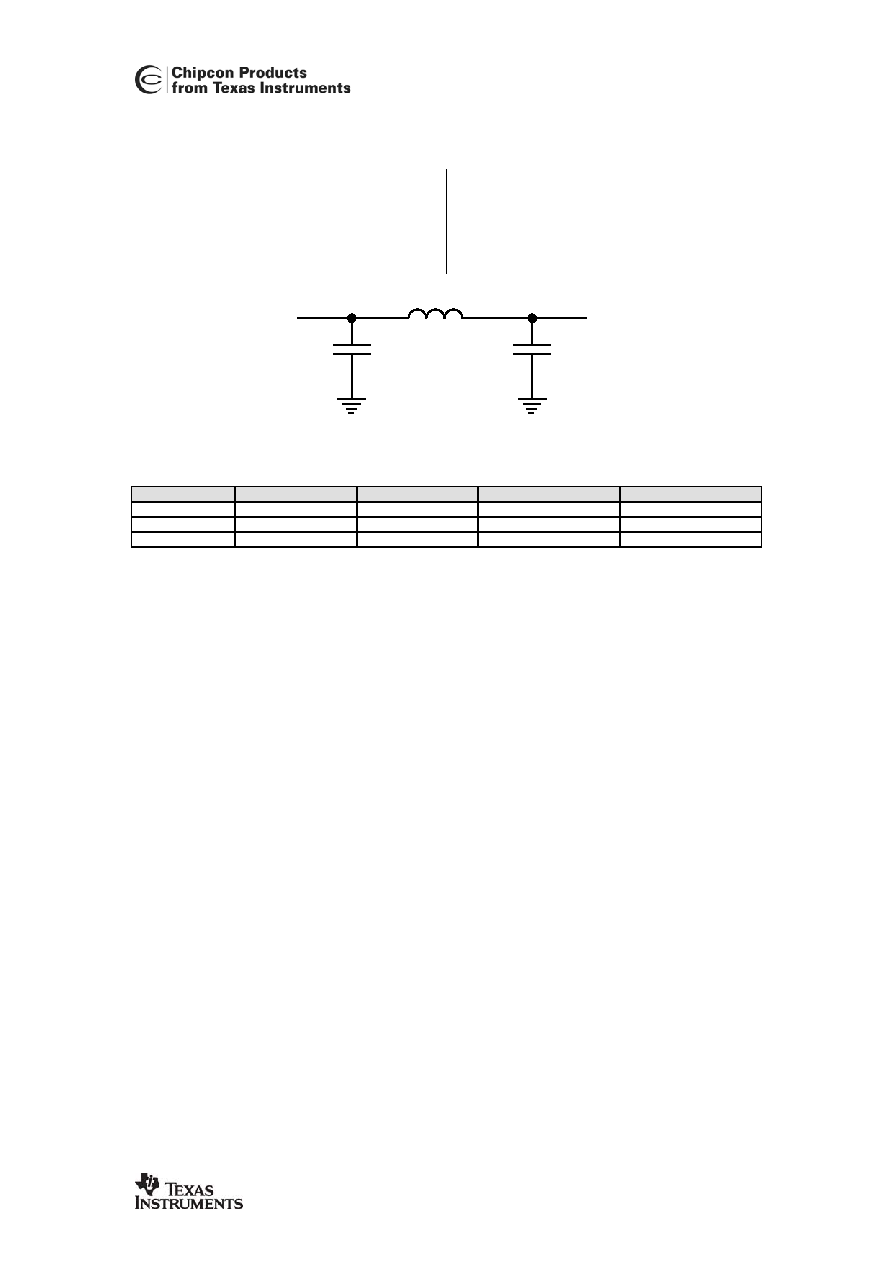

36 / 55 page  CC1000 SWRS048A Page 36 of 55 25. Optional LC Filter An optional LC filter may be added between the antenna and the matching network in certain applications. The filter will reduce the emission of harmonics and increase the receiver selectivity. The filter topology is shown in Figure 25. Component values are given in Table 13. The filter is designed for 50 Ω terminations. The component values may have to be tuned to compensate for layout parasitics. L71 C71 C72 L71 C71 C72 Figure 25. LC filter Item 315 MHz 433 MHz 868 MHz 915 MHz C71 30 pF 20 pF 10 pF 10 pF C72 30 pF 20 pF 10 pF 10 pF L71 15 nH 12 nH 5.6 nH 4.7 nH Table 13. LC filter component values |
|
