Data Sheet S15535EJ3V0DS
15
µPD720100A

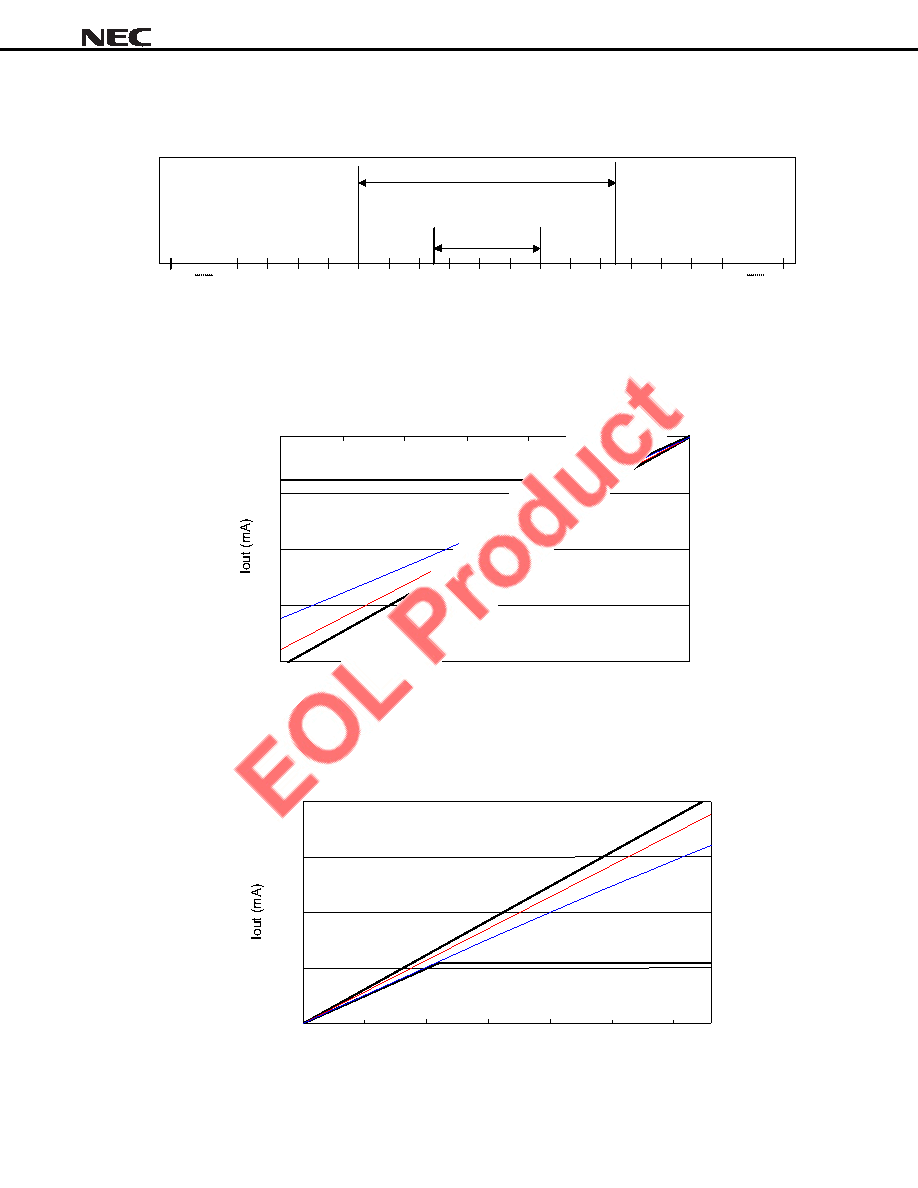

Figure 2-1. Differential Input Sensitivity Range for Low-/full-speed
4.6
-1.0
Input Voltage Range (Volts)
Differential Input Voltage Range
Differential Output
Crossover
Voltage Range
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
3.2
Figure 2-2. Full-speed Buffer VOH/IOH Characteristics for High-speed Capable Transceiver
Max.
Min.
-80
-60
-40
-20
0
VDD-0.3
Vout (V)
VDD-2.3
VDD-3.3
VDD-0.8
VDD
VDD-1.3
VDD-1.8
VDD-2.8
Figure 2-3. Full-speed Buffer VOL/IOL Characteristics for High-speed Capable Transceiver
Max.
Min.
80
60
40
20
0
0
0.5
1
1.5
2
2.5
3
Vout (V)
