Data Sheet S15535EJ3V0DS
23
µPD720100A

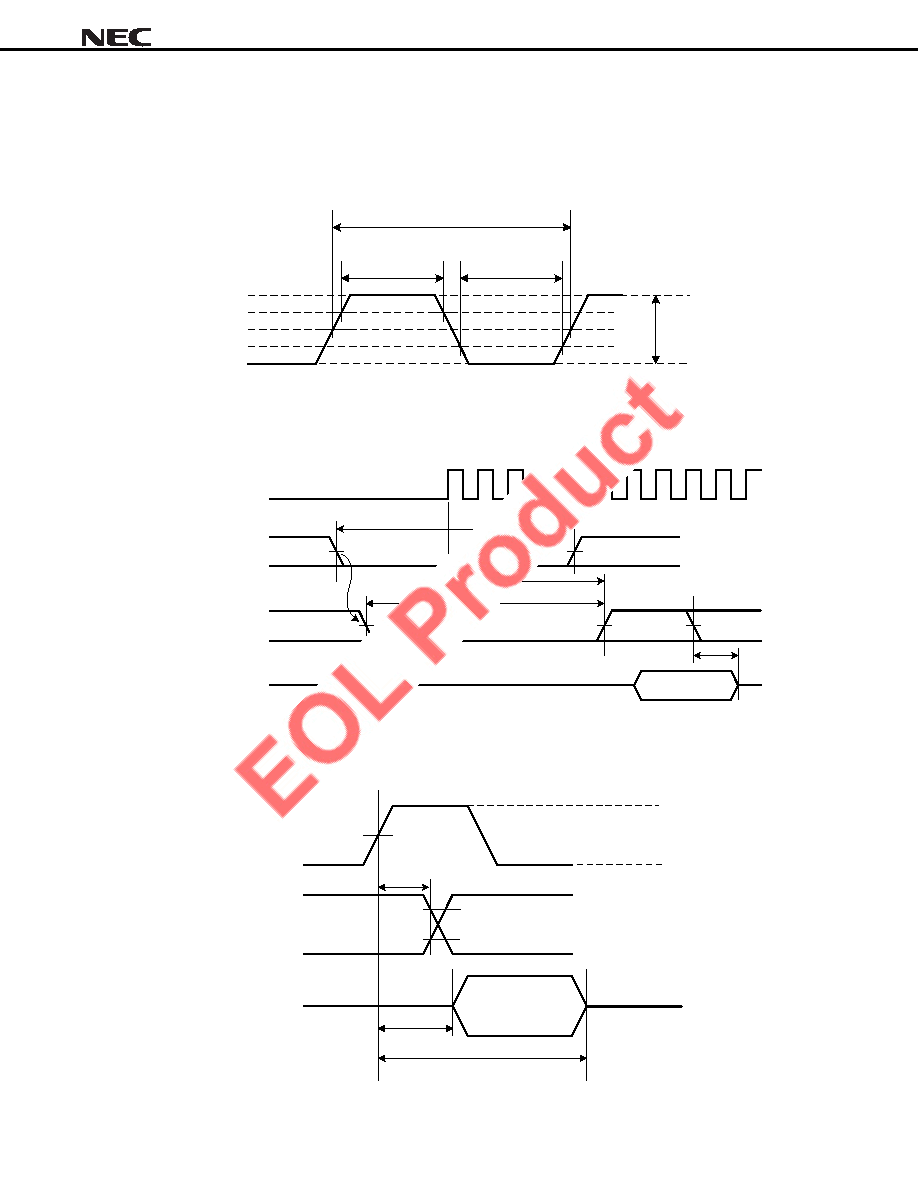

Timing Diagram
PCI Clock
0.4VDD
0.6VDD
0.2VDD
0.5VDD
0.3VDD
0.4VDD(ptp:min)
tcyc
thigh
tlow
PCI Reset
PCLK
PWR_GOOD
VBBRST0
100 ms (typ.)
trst
trst-off
PCI Signals
Valid
trst-clk
PCI Output Timing Measurement Condition
PCLK
0.4VDD
0.6VDD
0.2VDD
output
delay
output
0.615VDD(for falling edge)
0.285VDD(for falling edge)
tval , tval(ptp)
ton
toff
