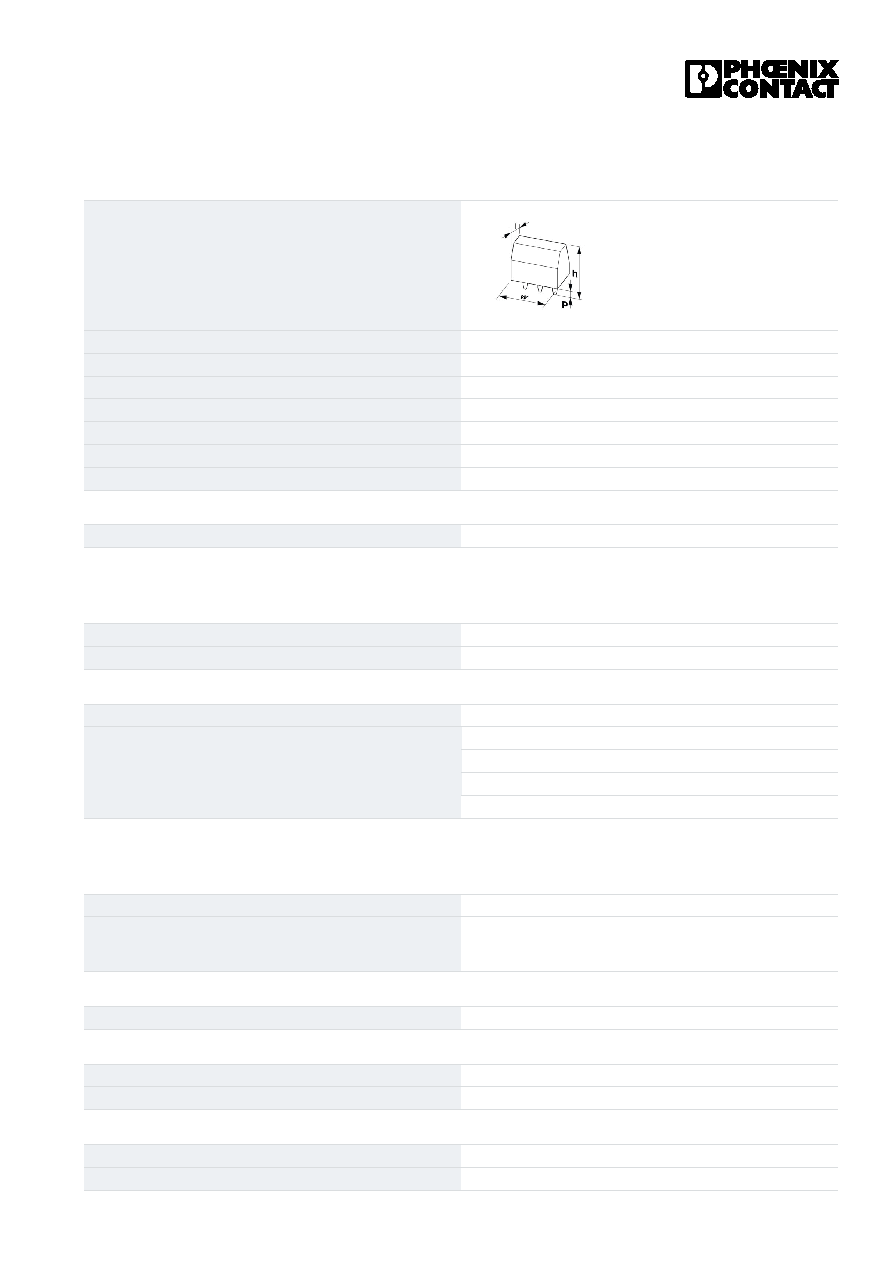

Dimensional drawing

Pitch

5 mm

Width [w]

40 mm

Height [h]

13.5 mm

Length [l]

8.1 mm

Installed height

10 mm

Solder pin length [P]

3.5 mm

Pin dimensions

0.5 x 1 mm

PCB design

Hole diameter

1.3 mm

Mechanical tests

Test for conductor damage and slackening

Specification

IEC 60999-1:1999-11

Result

Test passed

Pull-out test

Specification

IEC 60999-1:1999-11

0.14 mm² / solid / > 10 N

0.14 mm² / flexible / > 10 N

1.5 mm² / solid / > 40 N

Conductor cross section/conductor type/tractive force

setpoint/actual value

1.5 mm² / flexible / > 40 N

Electrical tests

Temperature-rise test

Specification

IEC 60947-7-4:2019-01

Requirement temperature-rise test

The sum of ambient temperature and temperature rise of the

PCB terminal block shall not exceed the upper limiting

temperature.

Short-time withstand current

Specification

IEC 60947-7-4:2019-01

Insulation resistance

Specification

IEC 60512-3-1:2002-02

Insulation resistance, neighboring positions

> 5 MΩ

Air clearances and creepage distances |

Specification

IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09

Insulating material group

IIIa

MKDSN 1,5/ 8 HT BK - PCB terminal block

1753611
